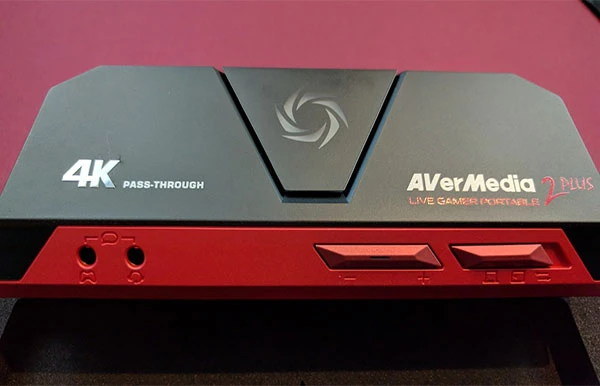

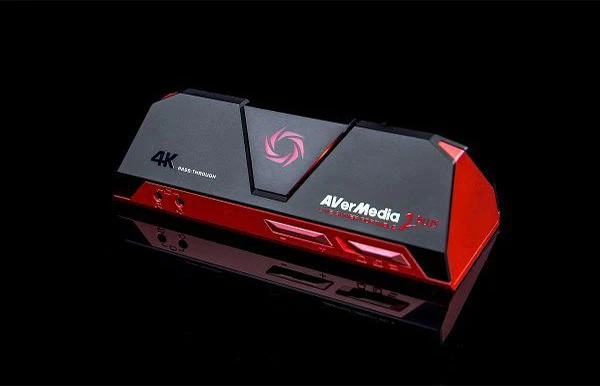

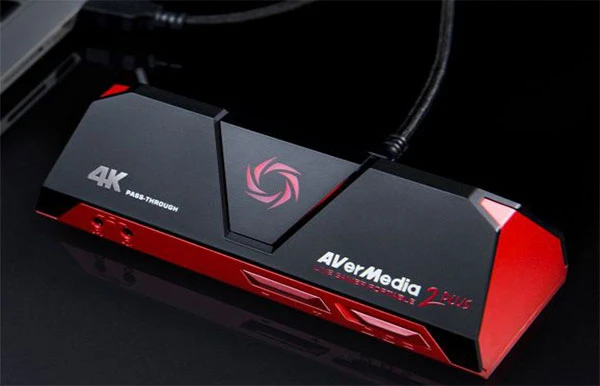

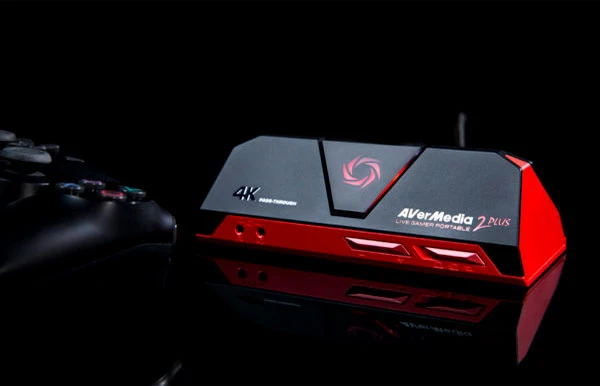

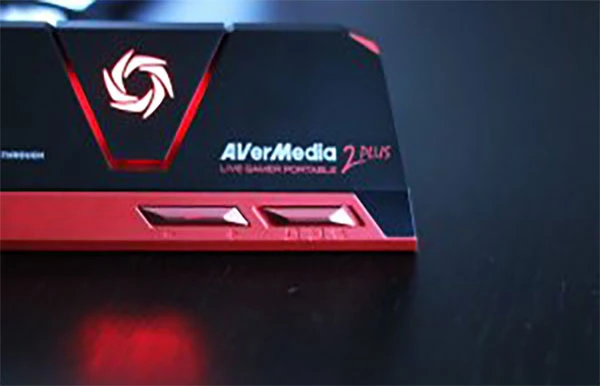

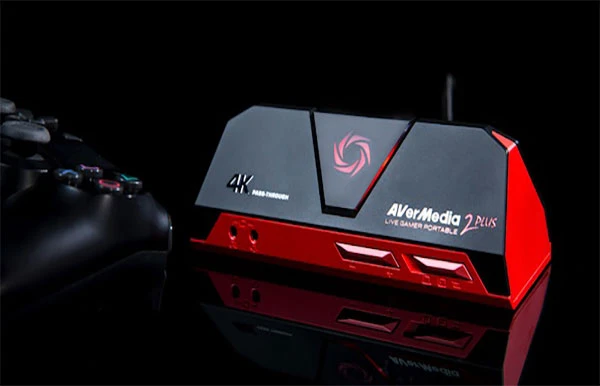

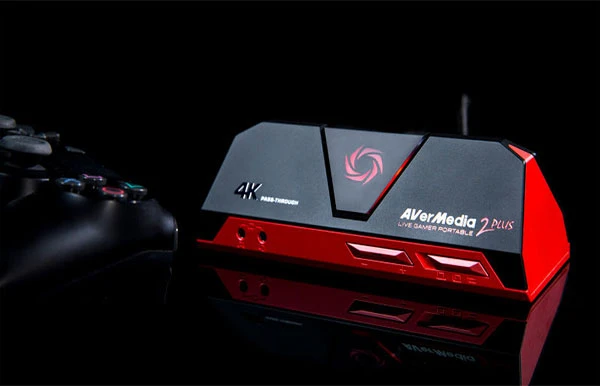

LIVE GAMER PORTABLE 2 PLUS
Gaming just got this much better. The Live Gamer Portable 2 Plus (LGP2 Plus) builds on its predecessor the LGP2. Keeping great flexibility with three integrated modes, multiple audio inputs and audio mixer control, while adding a whole new pass through technology to support Ultra HD 4K resolution at a buttery 60 frames per second.
Ultra HD 4K Pass Through *
Don’t sacrifice the 4K experience just to record your game plays. Enjoy 100% lag-less 4Kp60 video with LGP2 Plus integrated pass through feature and still records amazing game plays at Full HD 60 fps.
*HDR not supported
PC Mode
Stream Right Away. We understand the frustration in having to go through setups and installations. You can forget about all that. LGP2 Plus works right out of the box.
PC-Free Mode
Record on the Go.Touring the world with LGP2 Plus? A tap on the hot button initiates 1080p60 recording, keeping all your road games in the microSD card. No extra hardware is required.
Storage Mode
Access and Share Files Directly. Back home, switch LGP2 Plus to Storage Mode and it acts as a card reader. Never remove and risk losing memory cards again.
Simple Plug and Play Technology
LGP2 Plus works right out of the box. Unlike other video capture solutions LGP2 Plus uses the latest UVC technology, this means all you need is already in your computer or Mac, simply plug it and you are ready to stream !
Live Commentary & Party Chat
Adding commentaries to your streams or capturing your party chats has never been as easy as plug and go. Put on your headset, grab your controller, and let LGP2 Plus handle the rest.

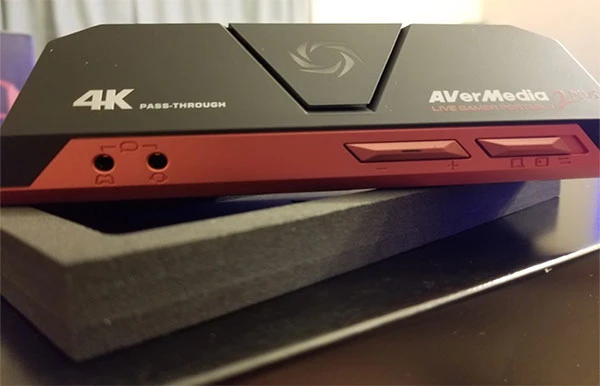

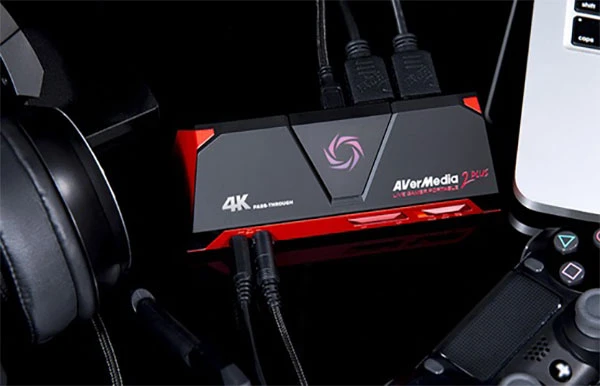

Connections
- Technical Specifications
- • Interface:USB 2.0 (USB Micro)
• Video Input:HDMI 2.0
• Video Output (Pass-Through):HDMI 2.0
• Audio Input:HDMI 2.0 / 4 Pole 3.5mm Jack ( Audio input from controller, Mic pass-through)*1
• Audio Output (Pass-Through):HDMI 2.0 / 4 Pole 3.5mm Jack ( Audio pass-through from controller, Mic input)*1
• Max Pass-Through Resolutions:4Kp60 / 1080p60
• Max Record Resolutions:1080p60
• Supported Resolutions (Video input):2160p, 1080p, 1080i, 720p, 576p, 480p, 480i
• Operation Modes:PC mode, PC-free mode, Card reader mode
• Record Format:MPEG 4 (H.264+AAC) / MJPEG / Supports hardware encoding
• Dimension (W x D x H):147 x 57 x 47 mm (5.8 x 2.2 x 1.8in)
• Weight:185.5g (6.54 oz)
Notes:
1. LGP2 PLUS does not support viewing/recording/streaming of HDCP protected signals

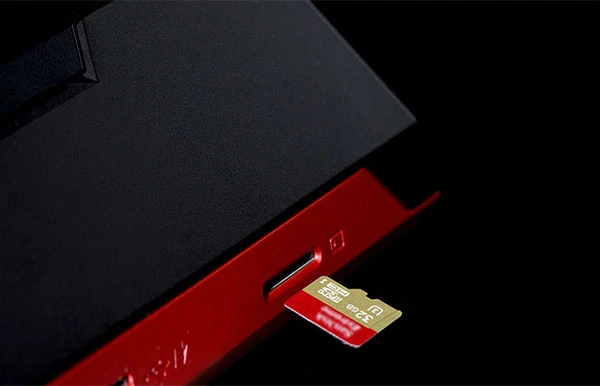

2. Micro SD Class 10 card is required for PC-Free recording, Micro SD card is not included.
3. Micro SD maximum capacity support: 128GB
4. Micro SD Supported formats: FAT32 format / exFAT format
- When using the "FAT32 format" microSD card,
Due to the specification of FAT32, movies are divided and saved every 4 GB (about 25 minutes).
- Continuous recording is possible when using "exFAT format" microSD card
- System Requirements(For dedicated streaming PC)
- Operating System : Windows ® 10 or later / 8.1/ 7 / macOS (Support UVC Protocol)
For 1080p60
Desktop:
- Intel® Core™ i5 CPU i5-3330 or comparable (i7 recommended)
- NVIDIA® GTX 650 / AMD Radeon™ R7 250X or above are recommended
- 4GB RAM
Laptop:
- Intel® Core™ i7-4810MQ
- NVIDIA® GeForce® GTX 870M
- 4 GB RAM (8 GB recommended)
Operating System:
1.Mac with an Intel processor: macOS 10.13 or later
2.Mac with an Apple M1 processor: macOS 10.13 ~ macOS 11 (* Not compatible with macOS 12)
(Support UVC Protocol)
For 1080p60
iMac 2013:
- 2.9GHz quad-core Intel Core i5 processor
- NVIDIA GeForce GT 750M graphics processor with 1GB of GDDR5 memory
- 16GB of 1600MHz DDR3L onboard memory
MacBook Pro 2013:
- 2.5GHz quad-core Intel Core i7 processor
- NVIDIA GeForce GT 750M with 2GB of GDDR5 memory and automatic graphics switching
- 16GB of 1600MHz DDR3L onboard memory
MacBook Pro 2017:
- 2.8GHz quad-core Intel Core i7 processor
- AMD Radeon Pro 555(2GB GDDR5) at least
- 16GB of 2133MHz LPDDR3 at least

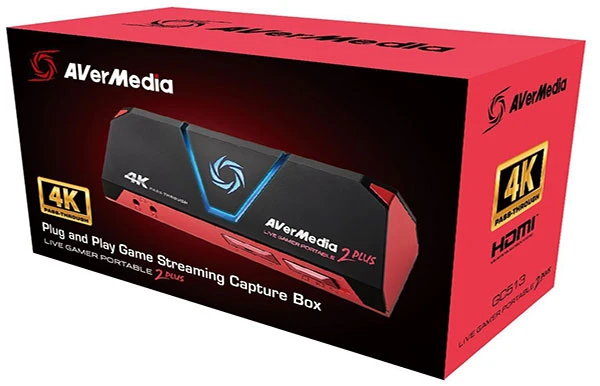

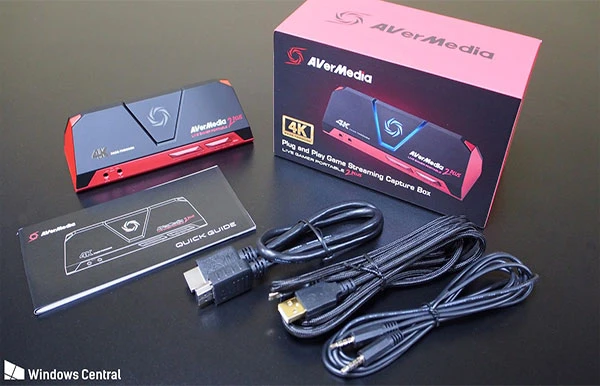

- What's in the box
- • Live Gamer Portable 2 PLUS (GC513)
• HDMI cable
• USB Micro to Type-A cable
• 4-Pole 3.5mm audio cable
• Quick guide
Q&A
DOWNLOAD
Date : 2023-02-07 00:00:00
Version：GC513 Firmware 2.1.7.10OS：N/A
Description：
1. Fix the issue of firmware 2.1.7.8: HDCP, volume, HDMI settings cannot be kept after restart.
Note: To avoid incompatibility with microSD cards, please use one among the list below:
ADATA microSDHC Premier UHS-I U1 16GB CL10 (16GB)
ADATA microSDHC Premier UHS-I U1 32GB CL10 (32GB)
Kingston microSDHC Class 10 (32GB)
Patriot microSDHC C10 (32GB)
Patriot EP Pro Series microSD C10 UHS-I U3 (64GB)
SAMSUNG microSDXC UHS-1 C10 (64GB)
SanDisk Ultra microSD UHS-I (16GB)
SanDisk Ultra microSD HC U1 (32GB)
SanDisk Ultra microSD UHS-I (32GB)
SanDisk Extreme SDXC UHS-I (128GB)
Transcend microSD UHS-I 400x (16GB)
Transcend microSD UHS-I PREMIUM 200x (32GB)
Transcend microSD UHS-I PREMIUM 400x (32GB)
Transcend microSD UHS-I PREMIUM 400x (128GB)
Firmware Update Instructions:
1) Switch the device to Card-Reader mode, insert the SD card into the device and plug in the USB cable.
2) Copy the "update" folder to the root directory of the Micro SD card (NTFS format is not supported), including the LGP2.bin file
3) Switch the device to PC-Free mode and wait for the device update to complete (do NOT interrupt the process)
4) During the update, the device's LED will flash blue. Wait until the LED is turned off indicating the update is complete.
5) Unplug and re-plug the USB cable
Date : 2023-01-09 00:00:00
Version：[Application ] RECentralExpress v1.2.72 BetaOS：macOS 12.5 & macOS 13.0
Description：
MacOS 13 is supported.
Date : 2022-10-03 00:00:00
Version：[Application] Diagnosis Tool v2.0.1.13OS：Win10 x64,Win11
Description：
New model GC551G2 support
Date : 2022-07-13 00:00:00
Version：[Application] RECentral4 v4.7.44.1OS：Win10 x64,Win 11
Description：
Minor Bugs fix
Optimize program stability
Date : 2022-07-13 00:00:00
Version：[Application] RECentral Express v1.2.65OS：macOS 11.6 &12.4
Description：
Minor Bugs fix
Optimize program stability
Date : 2022-05-12 00:00:00
- Version：[Application] AssistCentral v1.2.0.13 Beta
- OS：Win10 x64 & Win11
- Description：
- For use with systems running Microsoft Windows 10 or 11 and equipped with AVerMedia discrete desktop capture card, USB capture card. Download and run directly onto the system you want to update. An internet connection is required. The related software and firmware will be downloaded and installed.
Date : 2022-02-24 00:00:00
- Version：[Application] RECentral v4.7.31.1 Beta
- OS：Win10 x64,Win 11
- Description：
- Updated Twitch API
Date : 2022-02-24 00:00:00
- Version：[Application] RECentral Express v1.2.56 Beta
- OS：macOS 11.6 &12.2
- Description：
- Updated Twitch API
Date : 2022-01-03 00:00:00
Version：StreamEngine v2.0.0.58 betaOS：Win10 x64,Win11
Description：
1. Fixed loading issue with stream engine.
2. Fixed compatibility problem while running NVidia Broadcast
3. Fixed audio issues with some platforms.
Date : 2021-11-19 00:00:00
- Version：[Application] RECentral 4 v4.7.26.1
- OS：Win10 x64,Win 11
- Description：
Fixed "Hot button" record fail issue for GC513
Fixed the bug for RGB color format.
Date : 2021-11-10 00:00:00
- Version：[Application] RECentral Express v1.2.50
- OS：macOS 11.6 &12.0
- Description:
- Support macOS Monterey (version 12)
Date : 2021-10-04 00:00:00
- Version：[Application] RECentral 4 v4.7.24.1
- OS：Win10 x64,Win 11
- Description：
1.Support Windows 11
2. Improving AVerMedia UVC device compatibility.
Date : 2021-07-09 00:00:00
- Version：[Application] RECentral 4 v4.7.17.1
- OS：Win10 x64
- Description：
1. Fixed the video capture problem on the AMD graphics card problem
2. Fixed the audio disappear problem on the preview screen
3. Fixed Youtube HDR streaming problem on AMD graphics card
4. Improved the HDR video quality in multi-mode capture
Date : 2021-05-04 00:00:00
- Version：[Application] RECentral 4 v4.7.9.1 Beta
- OS：Win10 x64
- Description：
1. Improved the streaming stability problem on FaceBook
2. Improved the software compatibility problem
3. Adjusted the graphics card's default profile settings
Date : 2021-04-09 00:00:00
- Version：[Application] RECentralExpress v1.2.39 Beta
- OS：macOS 10.15 &11.2
- Description：
- Keep commonly used special effects modes
Date : 2021-03-05 00:00:00
- Version：[Application] RECentral 4 v4.7.4.1
- OS：Win10 x64
- Description：
REC-922 Single mode preview page HDR enable/disable icon was revert
REC-923 Remaining time not display correctly fix.
Support AMD RX 6800 and RX 6900 record HDR
Fix the RGB light display mode
Date : 2021-02-25 00:00:00
- Version：[Application] RECentralExpress v1.2.35 Beta
- OS：macOS 10.15 &11.0
- Description：
- 1. Supports macOS 11
2. Supports Macs with M1 chip (Mac M1)
※Please note the current (Feb. 2021) restrictions listed below for the 4K capture boxes GC555 and GC553:
・GC555: Macs with M1 chip are not supported, only the ones with Intel CPU are supported
・GC553: 4K capture is not supported; the highest supported capture resolution is 1080p60.
If you want to capture 4K, please use a Mac or PC with Intel CPU.
3. Resolve YouTube login issue
4.Supports GC555 LED settings
Date : 2020-12-16 00:00:00
- Version：[Application] RECentral 4 v4.6.0.12 Beta
- OS：Win10 x64
- Description：
- Change sender to fix unstable problem
Fix when enable instant highlight function and plug-out device lets ap close issue
Fix instant highlight Ui bug.
Date : 2020-10-26 00:00:00
- Version：[Application] Tool
- OS：macOS 10.14 & 10.15
- Description：
- 1. Fixed bugs
GC513 Utility Tool for Mac
1. Selecting recording qualities
2. Adjusting audio mixing ratio
3. HDCP handshaking On/Off switch
Date : 2020-10-23 00:00:00
- Version：[Application] RECentral 4 v4.5.0.37
- OS：Win10 x64
- Description：
- 1. Fixed streaming issue to YouTube platform.
Date : 2020-10-07 00:00:00
- Version：[Application & FW] RECentral Expres 1.2.16
- OS：macOS 10.14/10.15
- Description：
- 1. Fixed bugs
2. Performance improvement
Date : 2020-10-07 00:00:00
- Version：[Application] RECentral 4 v4.5.0.35
- OS：Win10 x64
- Description：
- 1. Removed Smashcast platform.
2. Improved the performance for decoding MJPEG 4K.
Date : 2020-09-25 00:00:00
- Version：StreamEngine v2.0.0.52
- OS：Win10 x64,Win11
- Description：
- 1. Fixed GC311 recording failed on Win10 20H1.
Date : 2020-09-25 00:00:00
- Version：[Application] RECentral 4 Beta v4.5.0.34
- OS：Win10 x64
- Description：
- 1. Remove Smashcast platform.
Date : 2020-08-14 00:00:00
- Version：[Application] RECentral 4 Beta v4.5.0.28
- OS：Win10 x64
- Description：
- 1. Support AfreecaTV platform.
2. Support RTMP streaming to Periscope platform.
3. Remove mixer platform.
4. Fixed audio volume is decreased when input audio source is 5.1/7.1 channels.
Date : 2020-07-10 00:00:00
- Version：[Application] RECentral 4 v4.5.0.25
- OS：Win10 x64
- Description：
- 1. Support Thai language.
2. Support HDR preview with HDR monitor.
3. Support audio recording up to 5.1 channels
4. Support capturing hardware accelerated application on Win10 1903
5. Fixed login failure of mixer platform.
6.Improved application performance
7.Fixed installation failed on some platforms.
Date : 2020-05-06 00:00:00
- Version：[Application & FW] RECentral Express 1.1.24
- OS：macOS 10.14/10.15
- Description：
- 1. Fixed bugs
2. Performance improvement
Date : 2020-03-06 00:00:00
- Version：[Application & FW] RECentral Express 1.1.19
- OS：macOS 10.14/10.15
- Description：
- 1. Fixed bugs
2. Performance improvement
Date : 2020-03-06 00:00:00
- Version：[Application] RECentral 4 Beta v4.3.1.87
- OS：Win10 x64
- Description：
- 1. Fixed YouTube Live Streaming issue.
2. Modified uploading file to YouTube work flow.
3. Fixed Windows WMI CPU utility is high on some platforms.
Date : 2020-01-17 00:00:00
- Version：[Application & FW] RECentral Express 1.1.17 Beta
- OS：macOS 10.15
- Description：
- 1. Add Post-Editing Feature
2. Audio Mixer supports add/remove audio source
3. Provide system performance test
4. Support Facebook live broadcast
5. Scenes support screen, window & multi-window capture mode
6. Scenes provide resolution & framerate setting
7. System performance improvement
8. SW release notification
Date : 2020-01-17 00:00:00
- Version：[Application & FW] RECentral Express 1.1.14 Beta
- OS：macOS 10.14
- Description：
- 1. Add Post-Editing Feature
2. Audio Mixer supports add/remove audio source
3. Provide system performance test
4. Support Facebook live broadcast
5. Scenes support screen, window & multi-window capture mode
6. Scenes provide resolution & framerate setting
7. System performance improvement
8. SW release notification
Date : 2020-01-03 00:00:00
- Version：RECentral v4.3.1.83
- OS：Win10 x64
- Description：
1. Use system’s AAC encoder, support audio bitrate 96Kbps, 128Kbps, 160Kbps and 192Kbps
2. Support AMD RX5700 4Kp60 HDR recording
3. Fixed login failure of Mixer platform.
4. Fixed captured application can’t be overlayed by other application.
Date : 2019-12-31 00:00:00
- Version：v2.0.1.5
- OS：Win10 x64
- Description：
1. Support software updates through internet.
2. Support sending test result for unknown platform.
Date : 2019-11-07 00:00:00
- Version：v2.0.1.2
- OS：Win10 x64
- Description：
Detect the compatibility of capturing cards and platform.
Date : 2019-10-03 00:00:00
- Version：RECentral v4.3.1.74
- OS：Win10 x64
- Description：
Modified button position of face sticker configuration.
Fixed the effect of color adjustment isn't linear for Live Gamer ULTRA.
Fixed there is no audio output when GC551 is removed and plugged in multi-mode.
Fixed resizing windows size is slow in multi-mode.
Improved memory usage during recording
Improved chroma key default value and algorithm.
Date : 2019-10-01 00:00:00
- Version：StreamEngine v2.0.0.36
- OS：Win10 x64
- Description：
Modified localized strings.
Modified device name.
Date : 2019-07-23 00:00:00
- Version：RECentral v4.3.1.71 (Beta)
- OS：Win10 x64
- Description：
Support RTMPS
Support Facebook API v3.2
Support adjusting application's display windows size automatically by windows screen size
Support HTML5 in embedded web browser in multi-mode.
Support feedback issues through AVerMedia official website
Improve the response time of user interface
Improve the response time of recording
Modified video resolution of the recording profiles "Optimal", "Good" and "Normal".
Modified localized strings.
Used DirectX12 as video rendering engine.
Fixed audio noise in recorded files when capturing PS4 gameplay.
Removed photo sharing to Twitter and Facebook
Removed video sharing to Facebook
Removed video editing function which provided in previos version
Date : 2019-07-10 00:00:00
- Version：[Application] RECentral Express v1.0.32 (Beta)
- OS：macOS 10.13.6 & 10.14.5
- Description：
1. First Launch for GC513 with Mac Express.
2. MPORTANT: Update your GC513 to firmware v1.1.6.0 or later before using this software
Date : 2018-12-26 00:00:00
- Version：[Application] RECentral: v4.3.0.41 (Beta)
- OS：Win 10 x64
- Description：
1. Fix an issue that RECentral crashes when changing extended screen resolution.
2. Fix an issue that GC510/GC513 hot button cannot close RECentral.
3. Fix some minor issues.
Date : 2018-09-20 00:00:00
- Version：[Application] RECentral: v4.3.0.34 (Beta)
- OS：Win10 x64
- Description：
1.Fix an issue that cannot stream to Facebook.
2.Fix an issue that cannot stream to Twitch.
3.Fix some other issues(https://www.avermedia.com/gaming/download/recentral4#ans_part).
Date : 2018-06-25 00:00:00
- Version：[Application] RECentral: v4.2.0.30
- OS：Win 7 x64, Win 8.1 x64, Win 10 x64
- Description：
Fixed some minor issues.
Date : 2018-04-16 00:00:00
- Version：[Application] RECentral: v4.1.0.18 Beta
- OS：Win 7 x64, Win 8.1 x64, Win 10 x64
- Description：1.Fixed some audio issues when recording.
2.Fixed multiple streaming issues on its profile page.
3.Improve platform compatibility of GC550.
4.Add a full-screen display setting to keep/extend aspect ratio.
5.Fixed some minor issues.
Date : 2018-03-08 00:00:00
- Version：[Application] RECentral: v4.1.0.12 Beta
- OS：Win 7 x64, Win 8.1 x64, Win 10 x64
- Description：1. Fixed a synchronous issue with audio and video.
2. Fixed an issue that installer might be frozen on some Win7 platforms.
3. Fixed an issue that clip feature didn't work after enabled face beauty feature.
4. Improve preview quality.
5. Improve stability.
6. Fixed some audio issues.
7. Support streaming to multiple CDNs at the same time.
8. Fixed minor issues
Date : 2018-10-30 00:00:00
- Version：GC513 Live Gamer Portable 2 Plus Setup Tool _BETA
- OS：macOS 10.13 (High Sierra)/ macOS 10.14 (Mojave)
- Description：
GC513 Utility Tool for Mac
1. Selecting recording qualities
2. Adjusting audio mixing ratio
3. HDCP handshaking On/Off switch
Date : 2017-12-20 00:00:00
- Version：[Application] RECentral: v4.0.0.78
- OS：Win 7 x64, Win 8.1 x64, Win 10 x64
- Description：RECentral 4
AWARDS
PCMAG.COM
2018-06-11
HDR247
2018-05-14
Hardwaresfera
2018-04-01
Darktech-Reviews
2018-01-21
Darktech-Reviews
2018-01-21
