Live Gamer ULTRA
The next generation of game capture is here. The Live Gamer ULTRA (LGU) brings 4K capture to the table while its pass-through allows gamers to fully experience what 4K HDR is all about. Not limited to 4K HDR, this compact device can pass-through high refresh rates of up to 240 Hz on a Full HD signal.
To see if LGU is compatible with your computer, please download and run our compatibility test tool.
4K High Dynamic Range Pass-through
Don’t give up 4K HDR content just to be able to record your gameplay. With 100% lag-free, 4Kp60 HDR video pass-through, the LGU allows you to enjoy mesmerizing 4K HDR gameplay and record at 4Kp30.
High Frame Rate Capture
With its high frame rate capture ability of up to 120 fps for Full HD signals, the LGU positions itself as the first external game capture device in the market to bring super smooth recordings to your archives.
Full HD High Dynamic Range
Unique, simply one of a kind. While supporting 4K HDR pass-through, the LGU records HDR content for Full HD playback at 60 frames per second.
Easiest Setup Ever
The LGU takes full advantage of UVC technology, which basically standardizes video drivers across Windows and Mac. In other words, all you need to do is plug your LGU to your PC or Mac and it’s ready to record and stream.
Stay Cool
With a powerful, silent built-in fan, if you ever noticed, drawing cold air from the top and venting out hot air through the sides, your LGU will always stay cool in the heat of battles.
RECentral—Powerful Streaming Software
First in its class! RECentral is the first gaming capture software able to record HDR content. And it doesn’t stop there, RECentral is also able to simultaneously stream to multiple platforms. For more information, click here.
Customizable resolution utility
If you decided not to connect a display to the HDMI output (pass-through) of your LGU we got you covered! With the “AVerMedia Gaming Utility” you can customize which resolutions and corresponding frame rates you are able to preview and record without the need to connect a passthrough monitor.
Download the utility here (Click here),If you need some help follow this guide (Click here)
Capture, Record, Edit 4K
Are you thinking about editing your 4K videos but don’t know where to start? We’ve got you covered. The bundled CyberLink® PowerDirector™ 15 is a feature-packed, intuitive 4K video editor to kickstart your editing skills.
(Click here)Connections
- Technical Specifications
- • Interface:USB 3.1 (Gen 1) Type C
• Video Input:HDMI 2.0
• Video Output (Pass-Through):HDMI 2.0
• Audio Input:HDMI 2.0
• Audio Output (Pass-Through):HDMI 2.0
• Max Pass-Through Resolutions:2160p60 HDR /1440p144 / 1080p240
• Max Record Resolutions:2160p30 / 1440p60 / 1080p120 / 1080p60 HDR
• Supported Resolutions (Video input):2160p, 1440p, 1080p, 1080i, 720p, 576p, 480p
• Record Format:MPEG 4 (H.264+AAC) or (H.265+AAC)*
• Dimension (W x D x H):112.6 x 66.2 x 26 mm (4.43 x 2.6 x 1.02 in)
• Weight:116 g (4.09 oz.)
Notes:
*H.265 Compression and HDR are supported by RECentral
1. LGU does not support viewing/recording/streaming of HDCP protected signals
- System Requirements(For dedicated streaming PC)
- Operating system: Windows® 10 x64 or later (Support UVC Protocol)
For 4Kp30 or 1080p120 (4Kp60 HDR pass-through supported)
Desktop:
- Intel® Core™ i5-6XXX or above
- NVIDIA® GeForce® GTX 1060 or above
- 8 GB RAM (*Dual-channel)
Laptop:
- Intel Core i7-7700HQ or above
- NVIDIA® GeForce® GTX1050 Ti or above
- 8 GB RAM (*Dual-channel) *You have to set your memory on dual channel mode in your computer system. Please see attachment: attachment (Link)
For 1080p60 (4Kp60 HDR pass-through supported)
Desktop:
- Intel® Core™ i5-4440 3.10 GHz or above
- NVIDIA® GTX 660
- 4 GB RAM (8 GB recommended)
Laptop:
- Intel Core i7-4810MQ
- NVIDIA® GeForce® GTX 870M or above
- 4 GB RAM (8GB Recommended)
Mac system requirement : Operating system: MacOS High Sierra 10.13
Requires an Apple Thunderbolt 3 (USB‑C) Cable (0.8 m)
For 4Kp30 or 1080p120 (4Kp60 HDR pass-through supported)
iMac:
- 3.6GHz quad-core Intel Core i7
- Radeon Pro 555 with 2GB of VRAM
- 16GB of 2400MHz DDR4 memory
MacBook Pro:
- 2.8GHz quad-core Intel Core i7
- Radeon Pro 555X with 2GB of GDDR5 memory
- 16GB 2133MHz LPDDR3 memory
For 1080p60 (4Kp60 HDR pass-through supported) :
iMac:
- 3.6GHz quad-core Intel Core i7
- Radeon Pro 555 with 2GB of VRAM
- 16GB of 2400MHz DDR4 memory
MacBook Pro:
- 2.6GHz quad-core Intel Core i7
- Radeon Pro 450 with 2GB of GDDR5 memory
- 16GB of 2133MHz LPDDR3 onboard memory
Notes:
1. LGU does not support USB 2.0
2. LGU does not support USB 3.1 Gen 2
3. We strongly recommended to use Intel chipset.
4. For 4K, HDR or High frame rate recording only NVIDIA graphics card are supported.
- What's in the box
- • Live Gamer Ultra (GC553)
• HDMI 2.0 cable
• Type C to Type A Cable
• Quick guide
• CyberLink PowerDirector 15 Product Key Card* Notes:
*4K video editing software. Does not support HEVC encoded files or HDR editing. Please note that this version of PowerDirector 15 is not the retail version and some functionalities may be restricted or require paid upgrades.
Q&A
DOWNLOAD
Date : 2022-10-03 00:00:00
Version：[Application] Diagnosis Tool v2.0.1.13OS：Win10 x64,Win11
Description：
New model GC551G2 support
Date : 2022-07-15 00:00:00
Version :1.4.9.7OS: Windows
Description :Optimized for UVC auto select correct framerate
Date : 2022-07-13 00:00:00
Version：[Application] RECentral4 v4.7.44.1OS：Win10 x64,Win 11
Description：
Minor Bugs fix
Optimize program stability
Date : 2022-07-13 00:00:00
Version：[Application] RECentral Express v1.2.65OS：macOS 11.6 &12.4
Description：
Minor Bugs fix
Optimize program stability
Date : 2022-06-28 00:00:00
Version：[Application & FW]FW v1.4.9.6 (win)OS：Win10 x64, Win11
Description：
Optimizing input source compatibility
Date : 2022-05-12 00:00:00
- Version：[Application] AssistCentral v1.2.0.13 Beta
- OS：Win10 x64 & Win11
- Description：
- For use with systems running Microsoft Windows 10 or 11 and equipped with AVerMedia discrete desktop capture card, USB capture card. Download and run directly onto the system you want to update. An internet connection is required. The related software and firmware will be downloaded and installed.
Date : 2022-02-24 00:00:00
- Version：[Application] RECentral v4.7.31.1 Beta
- OS：Win10 x64,Win 11
- Description：
- Updated Twitch API
Date : 2022-02-24 00:00:00
- Version：[Application] RECentral Express v1.2.56 Beta
- OS：macOS 11.6 &12.2
- Description：
- Updated Twitch API
Date : 2022-01-03 00:00:00
Version：StreamEngine v2.0.0.58 betaOS：Win10 x64,Win11
Description：
1. Fixed loading issue with stream engine.
2. Fixed compatibility problem while running NVidia Broadcast
3. Fixed audio issues with some platforms.
Date : 2021-11-19 00:00:00
- Version：[Application] AVerMedia Gaming Utility_v1.4.9 (Mac)
- OS：macOS 10.x ~ 12.x
- Description：
Support macOS 12.x
Date : 2021-11-10 00:00:00
- Version：[Application] RECentral Express v1.2.50
- OS：macOS 11.6 &12.0
- Description:
- Support macOS Monterey (version 12)
Date : 2021-10-27 00:00:00
- Version：[Application & FW]FW 1.4.8.4 (Win)
- OS：Win10 x64, Win11 x64
- Description：
- 1. Fixed the black screen issue when launching the app between OBS and Discord.
Date : 2021-10-04 00:00:00
- Version：[Application] RECentral 4 v4.7.24.1
- OS：Win10 x64,Win 11
- Description：
1.Support Windows 11
2. Improving AVerMedia UVC device compatibility.
Date : 2021-10-04 00:00:00
- Version：[Application] AVerMedia Gaming Utility_v1.4.8 (win)
- OS：Win10 x64, Win11
- Description：
1.Support Windows 11.
Date : 2021-09-28 00:00:00
- Version：[Application & FW]FW 1.4.7.3 (Win)
- OS：Win10 x64, Win11 x64
- Description：
- 1.Support Win11
Date : 2021-07-09 00:00:00
- Version：[Application] RECentral 4 v4.7.17.1
- OS：Win10 x64
- Description：
1. Fixed the video capture problem on the AMD graphics card problem
2. Fixed the audio disappear problem on the preview screen
3. Fixed Youtube HDR streaming problem on AMD graphics card
4. Improved the HDR video quality in multi-mode capture
Date : 2021-05-04 00:00:00
- Version：[Application] RECentral 4 v4.7.9.1 Beta
- OS：Win10 x64
- Description：
1. Improved the streaming stability problem on FaceBook
2. Improved the software compatibility problem
3. Adjusted the graphics card's default profile settings
Date : 2021-04-09 00:00:00
- Version：[Application] RECentralExpress v1.2.39 Beta
- OS：macOS 10.15 &11.2
- Description：
- Keep commonly used special effects modes
Date : 2021-03-24 00:00:00
- Version：[Application & FW] FW 1.4.7.3 (macOS)
- OS：macOS 11.1/11.2
- Description：
- 1.Modify default EDID 1440p60 to 1440p120.
Date : 2021-03-05 00:00:00
- Version：[Application] RECentral 4 v4.7.4.1
- OS：Win10 x64
- Description：
REC-922 Single mode preview page HDR enable/disable icon was revert
REC-923 Remaining time not display correctly fix.
Support AMD RX 6800 and RX 6900 record HDR
Fix the RGB light display mode
Date : 2021-02-25 00:00:00
- Version：[Application] RECentralExpress v1.2.35 Beta
- OS：macOS 10.15 &11.0
- Description：
- 1. Supports macOS 11
2. Supports Macs with M1 chip (Mac M1)
※Please note the current (Feb. 2021) restrictions listed below for the 4K capture boxes GC555 and GC553:
・GC555: Macs with M1 chip are not supported, only the ones with Intel CPU are supported
・GC553: 4K capture is not supported; the highest supported capture resolution is 1080p60.
If you want to capture 4K, please use a Mac or PC with Intel CPU.
3. Resolve YouTube login issue
4.Supports GC555 LED settings
Date : 2021-01-28 00:00:00
- Version：AVerMediaGamingUtility_v1.4.7
- OS：macOS 11.1
- Description：
- 1.Support macOS 11.1
Date : 2020-12-16 00:00:00
- Version：[Application] RECentral 4 v4.6.0.12 Beta
- OS：Win10 x64
- Description：
- Change sender to fix unstable problem
Fix when enable instant highlight function and plug-out device lets ap close issue
Fix instant highlight Ui bug.
Date : 2020-11-18 00:00:00
- Version：[Application & FW] Application Beta 1.2.16
- OS：macOS 10.14/10.15
- Description：
- 1 Supporedt the newest version of Youtube API
2. Fixed bugs
Date : 2020-10-23 00:00:00
- Version：[Application] RECentral 4 v4.5.0.37
- OS：Win10 x64
- Description：
- 1. Fixed streaming issue to YouTube platform.
Date : 2020-10-07 00:00:00
- Version：[Application] RECentral 4 v4.5.0.35
- OS：Win10 x64
- Description：
- 1. Removed Smashcast platform.
2. Improved the performance for decoding MJPEG 4K.
Date : 2020-09-25 00:00:00
- Version：StreamEngine v2.0.0.52
- OS：Win10 x64,Win11
- Description：
- 1. Fixed GC311 recording failed on Win10 20H1.
Date : 2020-08-14 00:00:00
- Version：[Application] RECentral 4 Beta v4.5.0.28
- OS：Win10 x64
- Description：
- 1. Support AfreecaTV platform.
2. Support RTMP streaming to Periscope platform.
3. Remove mixer platform.
4. Fixed audio volume is decreased when input audio source is 5.1/7.1 channels.
Date : 2020-07-10 00:00:00
- Version：[Application] RECentral 4 v4.5.0.25
- OS：Win10 x64
- Description：
- 1. Support Thai language.
2. Support HDR preview with HDR monitor.
3. Support audio recording up to 5.1 channels
4. Support capturing hardware accelerated application on Win10 1903
5. Fixed login failure of mixer platform.
6.Improved application performance
7.Fixed installation failed on some platforms.
Date : 2020-03-06 00:00:00
- Version：[Application & FW] RECentral Express 1.1.19
- OS：macOS 10.14/10.15
- Description：
- 1. Fixed bugs
2. Performance improvement
Date : 2020-03-06 00:00:00
- Version：[Application] RECentral 4 Beta v4.3.1.87
- OS：Win10 x64
- Description：
- 1. Fixed YouTube Live Streaming issue.
2. Modified uploading file to YouTube work flow.
3. Fixed Windows WMI CPU utility is high on some platforms.
Date : 2020-01-17 00:00:00
- Version：[Application & FW] RECentral Express 1.1.17 Beta
- OS：macOS 10.15
- Description：
- 1. Add Post-Editing Feature
2. Audio Mixer supports add/remove audio source
3. Provide system performance test
4. Support Facebook live broadcast
5. Scenes support screen, window & multi-window capture mode
6. Scenes provide resolution & framerate setting
7. System performance improvement
8. SW release notification
Date : 2020-01-17 00:00:00
- Version：[Application & FW] RECentral Express 1.1.14 Beta
- OS：macOS 10.14
- Description：
- 1. Add Post-Editing Feature
2. Audio Mixer supports add/remove audio source
3. Provide system performance test
4. Support Facebook live broadcast
5. Scenes support screen, window & multi-window capture mode
6. Scenes provide resolution & framerate setting
7. System performance improvement
8. SW release notification
Date : 2020-01-03 00:00:00
- Version：RECentral v4.3.1.83
- OS：Win10 x64
- Description：
1. Use system’s AAC encoder, support audio bitrate 96Kbps, 128Kbps, 160Kbps and 192Kbps
2. Support AMD RX5700 4Kp60 HDR recording
3. Fixed login failure of Mixer platform.
4. Fixed captured application can’t be overlayed by other application.
Date : 2019-12-31 00:00:00
- Version：v2.0.1.5
- OS：Win10 x64
- Description：
1. Support software updates through internet.
2. Support sending test result for unknown platform.
Date : 2019-11-07 00:00:00
- Version：v2.0.1.2
- OS：Win10 x64
- Description：
Detect the compatibility of capturing cards and platform.
Date : 2019-10-08 00:00:00
- Version：[Application & FW] FW 1.3.6.2
- OS：Win10 x64
- Description：
1. Improved compatibility with monitor.
2. Improved stability on communication with Utility tool.
Date : 2019-10-03 00:00:00
- Version：RECentral v4.3.1.74
- OS：Win10 x64
- Description：
Modified button position of face sticker configuration.
Fixed the effect of color adjustment isn't linear for Live Gamer ULTRA.
Fixed there is no audio output when GC551 is removed and plugged in multi-mode.
Fixed resizing windows size is slow in multi-mode.
Improved memory usage during recording
Improved chroma key default value and algorithm.
Date : 2019-10-01 00:00:00
- Version：StreamEngine v2.0.0.36
- OS：Win10 x64
- Description：
Modified localized strings.
Modified device name.
Date : 2019-07-23 00:00:00
- Version：RECentral v4.3.1.71 (Beta)
- OS：Win10 x64
- Description：
Support RTMPS
Support Facebook API v3.2
Support adjusting application's display windows size automatically by windows screen size
Support HTML5 in embedded web browser in multi-mode.
Support feedback issues through AVerMedia official website
Improve the response time of user interface
Improve the response time of recording
Modified video resolution of the recording profiles "Optimal", "Good" and "Normal".
Modified localized strings.
Used DirectX12 as video rendering engine.
Fixed audio noise in recorded files when capturing PS4 gameplay.
Removed photo sharing to Twitter and Facebook
Removed video sharing to Facebook
Removed video editing function which provided in previos version
Date : 2019-03-12 00:00:00
- Version：v1.3.5.0
- OS：macOS Mojave 10.14
- Description：
Support macOS Mojave 10.14
Date : 2019-03-04 00:00:00
- Version：[Recentral Mac] Recentral Express: v 1.0.19_Beta
- OS：macOS Mojave 10.14
- Description：
1.IMPORTANT: Update your GC553 to firmware GC553FwUpdateTool_1.3.5.0 or later before using this software
2.Connect your GC553 using ONLY the official Apple Thunderbolt 3 (USB-C) Cable (0.8 m)
3.Close other applications to keep your CPU loading under 60% while using this software
4.Make sure to plug in your GC553 before opening this software, and close this software before unplugging GC553
5.Do NOT use Bluetooth headphones with this software
6.HDR recording not supported
7.Multi Mode maximum recording: 1920x1080@60fps
8.4K (3840x2160@30fps) and High Refresh Rate (1920x1080@120fps) recording are only supported in Single Mode
9.Improved overall stability
10.Improved navigation and flow
11.Fixed Audio Device anomaly while changing state
Date : 2019-01-10 00:00:00
- Version：v1.3.5.0
- OS：Win10 x64
- Description：
1.Improved video latency
2.Fixed some bugs with Utility tool.
3.Added HDCP and audio sample rate states report.
4.Fixed change resolution maybe show "No Signal" image.
Date : 2018-12-07 00:00:00
- Version：[Application] AVerMedia Gaming Utility_v1.1.1_win
- OS：Win10 x64
- Description：
1.Support extending resolution setting tool
2.Supports GC573/GC553 HDCP handshaking switch
3.Added a new GC573/GC553 firmware inspection mechanism
4.Added 3440x1440 resolution for GC573
Date : 2018-09-24 00:00:00
- Version：[Application] AVerMedia Gaming Utility_v1.0.2_win
- OS：Win10 x64
- Description：Support extending resolution setting tool
Date : 2018-09-24 00:00:00
- Version：[Application] AVerMedia Gaming Utility_v1.0.2_mac
- OS：MacOS High Sierra 10.13
- Description：Support extending resolution setting tool
Date : 2018-10-26 00:00:00
- Version：[Recentral Mac] Recentral Express: v 1.0.2
- OS：MacOS High Sierra 10.13
- Description：
1.IMPORTANT: Update your GC553 to firmware GC553FwUpdateTool_1.3.4.2 or later before using this software
2.Connect your GC553 using ONLY the official Apple Thunderbolt 3 (USB-C) Cable (0.8 m)
3.Close other applications to keep your CPU loading under 60% while using this software
4.Make sure to plug in your GC553 before opening this software, and close this software before unplugging GC553
5.Do NOT use Bluetooth headphones with this software
6.HDR recording not supported
7.Multi Mode maximum recording: 1920x1080@60fps
8.4K (3840x2160@30fps) and High Refresh Rate (1920x1080@120fps) recording are only supported in Single Mode
9.Improved overall stability
10.Improved navigation and flow
11.Fixed Audio Device anomaly while changing state
Date : 2018-09-20 00:00:00
- Version：[Application] RECentral: v4.3.0.34 (Beta)
- OS：Win10 x64
- Description：
1. Fix an issue that cannot stream to Facebook.
2. Fix an issue that cannot stream to Twitch.
3. Add privacy permission detection mechanism.
4. Fix some microphone compatibility issues.
5. Increase maximum mp4 file size.
6. Fix some minor issues.
Date : 2018-09-14 00:00:00
- Version：[Application] AVerMedia Gaming Utility_v0.0.13_win
- OS：Win10 x64
- Description：
Support extending resolution setting tool
Date : 2018-10-26 00:00:00
- Version：[Application] AVerMedia Diagnosis Tool 1.1810.26553.39
- OS：Win10 x64
- Description：
1.Check the platform's compatibility with Live Gamer Ultra.
2. Check if the performance of the platform supports 4Kp30 video recording.
Date : 2018-09-12 00:00:00
- Version：v1.2.3.0 Beta
- OS：Win 10 x64
- Description：
Improve update tool compatibility
Date : 2018-07-24 00:00:00
- Version：[Application] RECentral: v4.3.0.14
- OS：Win 10 x64
- Description：
1. Support "always on top" mode.
2. Remove "tridef smart cam" background removal function.
3. Show USB controller info in setting page.
4. Shorten the transition time between scenes.
5. Improve the performance of recording when uses NVIDIA GPU encoder.
6. Fixed an issue that cannot upload an image with "png" format to twitter.
7. Support ESC/Delete hotkey on the keyboard.
8. Fixed wrong description of HDCP detection.
9. Fixed some minor issues.
Date : 2018-07-13 00:00:00
- Version：[Application] RECentral: v4.2.0.35 beta
- OS：Win 10 x64
- Description：
1. Fixed an issue that some functional descriptions were wrong.
2. Fixed an issue that the frame rate was unstable when recording 240Mbps.
Date : 2018-06-25 00:00:00
- Version：[Application] RECentral: v4.2.0.28
- OS： Win10 x64
- Description：
First Launch for New product. (GC553)
AWARDS
elchapuzasinformatico
2020-05-04

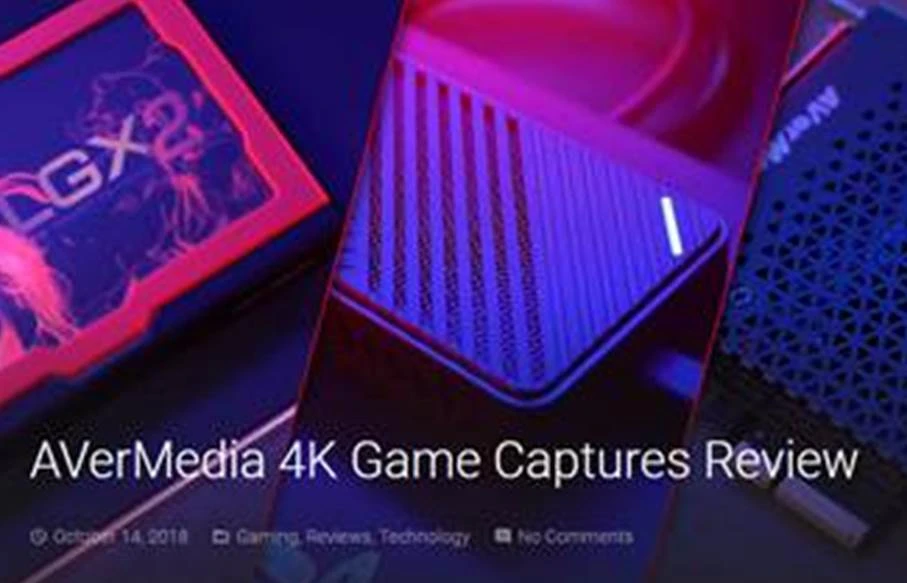

Windows Central
2018-10-18
PROFESIONAL REVIEW
2018-09-17
PROFESIONAL REVIEW
2018-09-17
PCS
2018-07-05
