What are the supported passthrough and capture resolutions and frame rates for GC535?

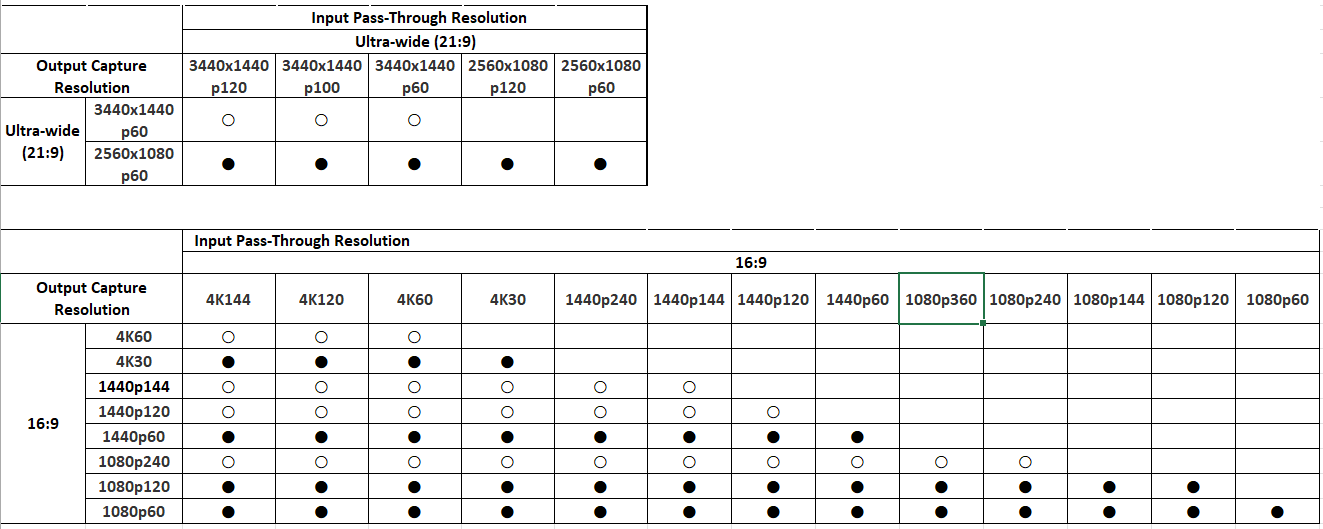

Please refer to the supported passthrough and capture resolutions below.


○: Can be captured in SDR
●: Can be captured in SDR or HDR

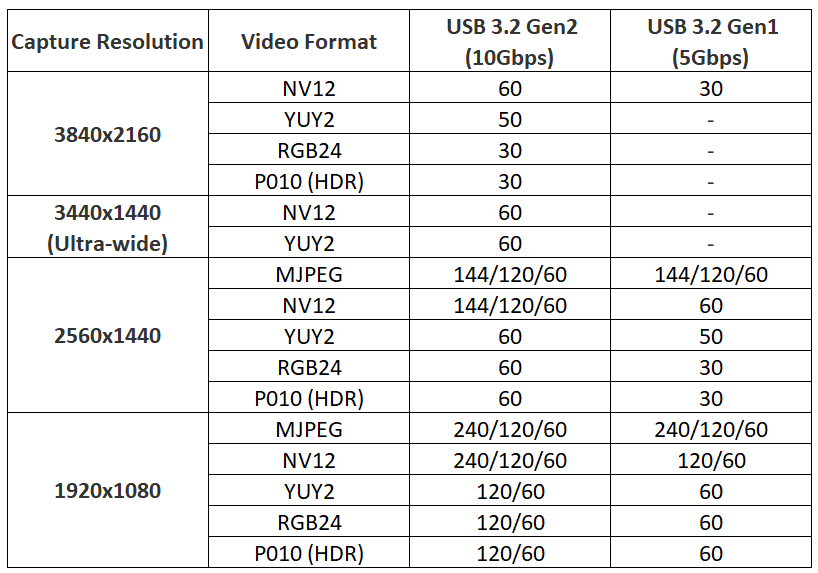

Capture Video Format Specifications

Please refer to the list below for resolutions and frame rates that can be captured in different video formats. The availability of these color formats changes depending on the type of USB port that GC535 is connected to (10Gbps, 5Gbps).
