How to Use the Live Streamer App on iPad


Supported Devices

  • Capture Devices: GC313Pro, GC515

Step 1: Connect Your Devices

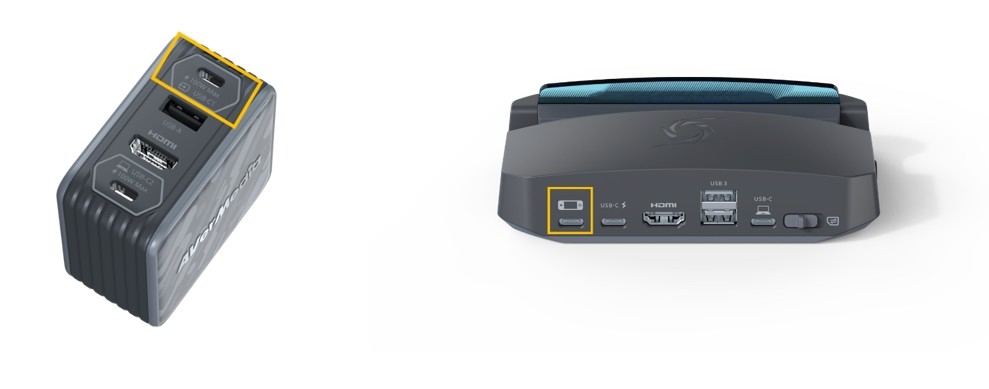

  • Connect your signal source to the C1 port of the GC313Pro using the included cable.
  • Connect your signal source to the port with a handheld icon on the GC515.
    • Important: If you use GC515, make sure to connect the power supply of the signal source to the port with the thunder icon.

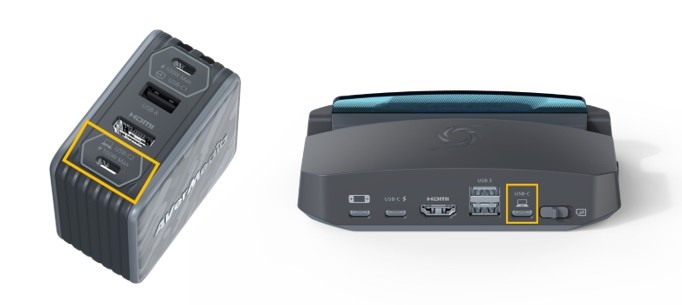

  • Connect your iPad to the C2 port of GC313Pro using a USB cable that supports at least 5Gbps data transfer
  • Connect to the port with a laptop icon on the GC515.



Step 2: Install the Application

  • Download Live Streamer for Pad from the App Store.
  • Enable privacy settings so the app can access the capture device.

Step 3: Set Up Video Sources

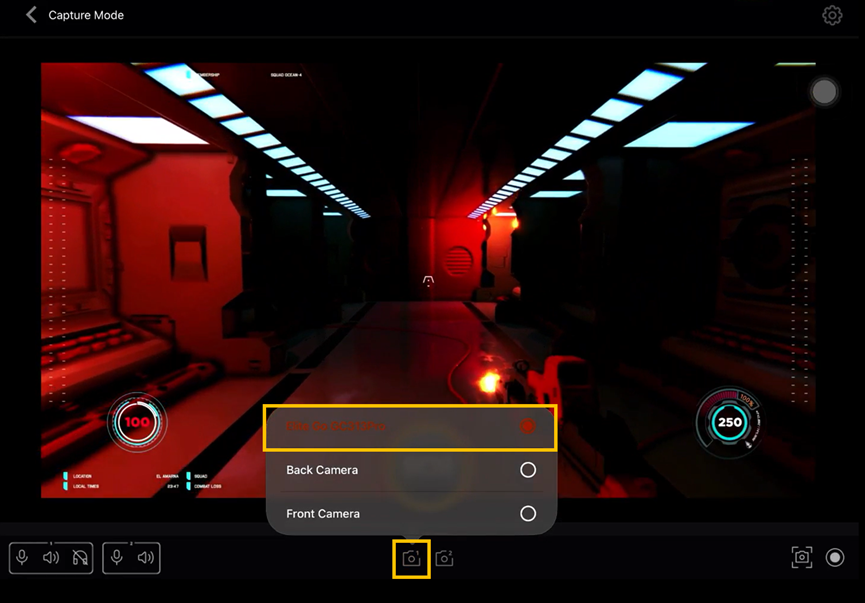

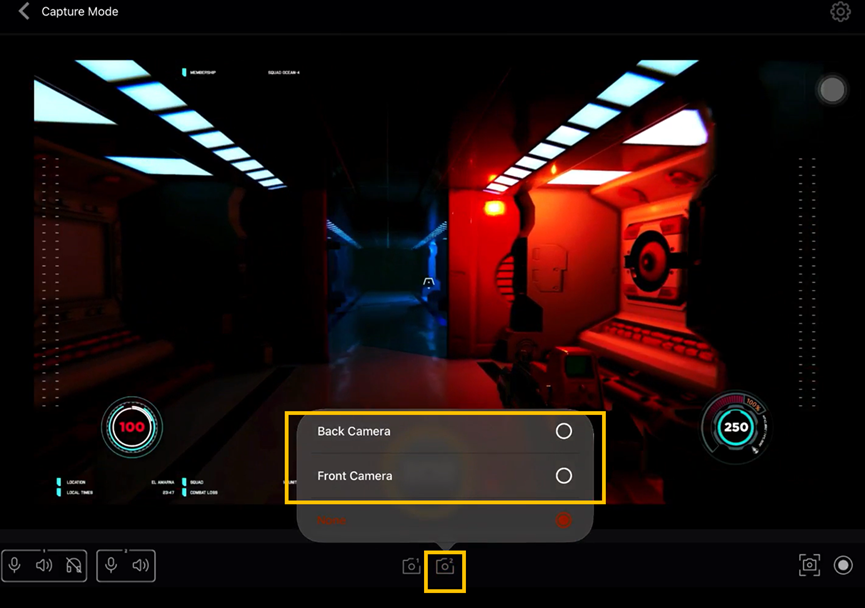

  • Tap the camera icon at the bottom.
  • Set primary camera device as your signal source.
  • Secondary camera device as your iPad’s camera.
  • You can drag the Picture-in-Picture, zoom in/out, Double-tap to swap with the main scene.

Step 4: Set Up Audio Sources

  • Tap the microphone icon at the bottom-left.
  • For game sound:
    • Choose your capture device as the first audio source.
    • Adjust volume via the speaker icon.

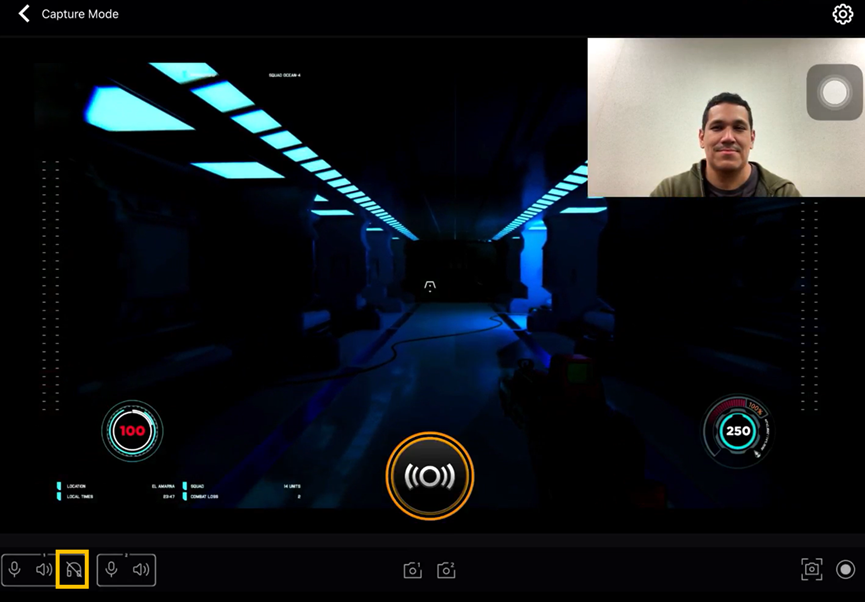

    • Enable sound monitoring via the headset icon.
  • For voice streaming (You will need an iPhone to capture your voice):
    • Download LiveStreamerLink on your iPhone. Connect iPhone and iPad to the same Wi-Fi.

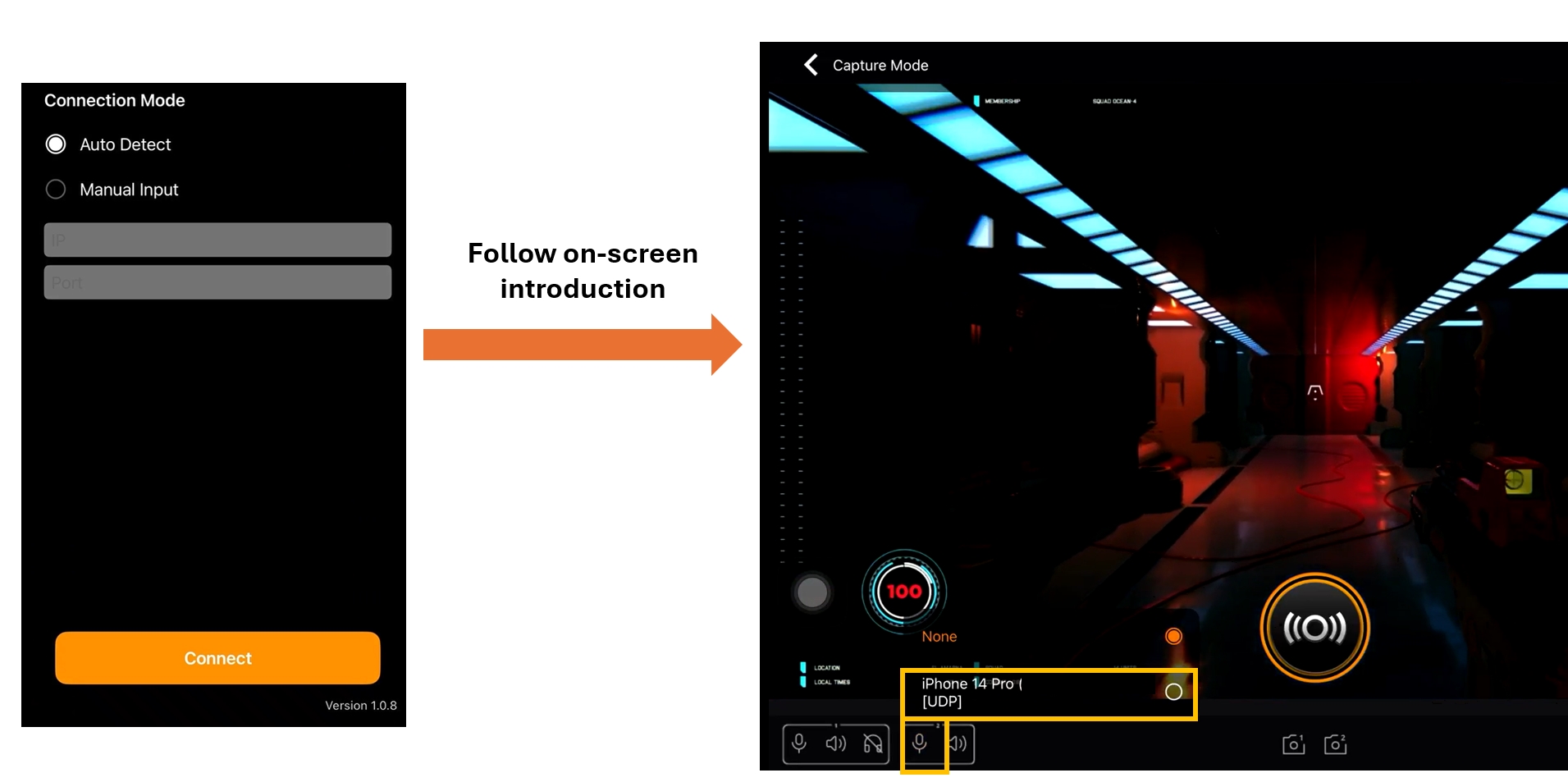

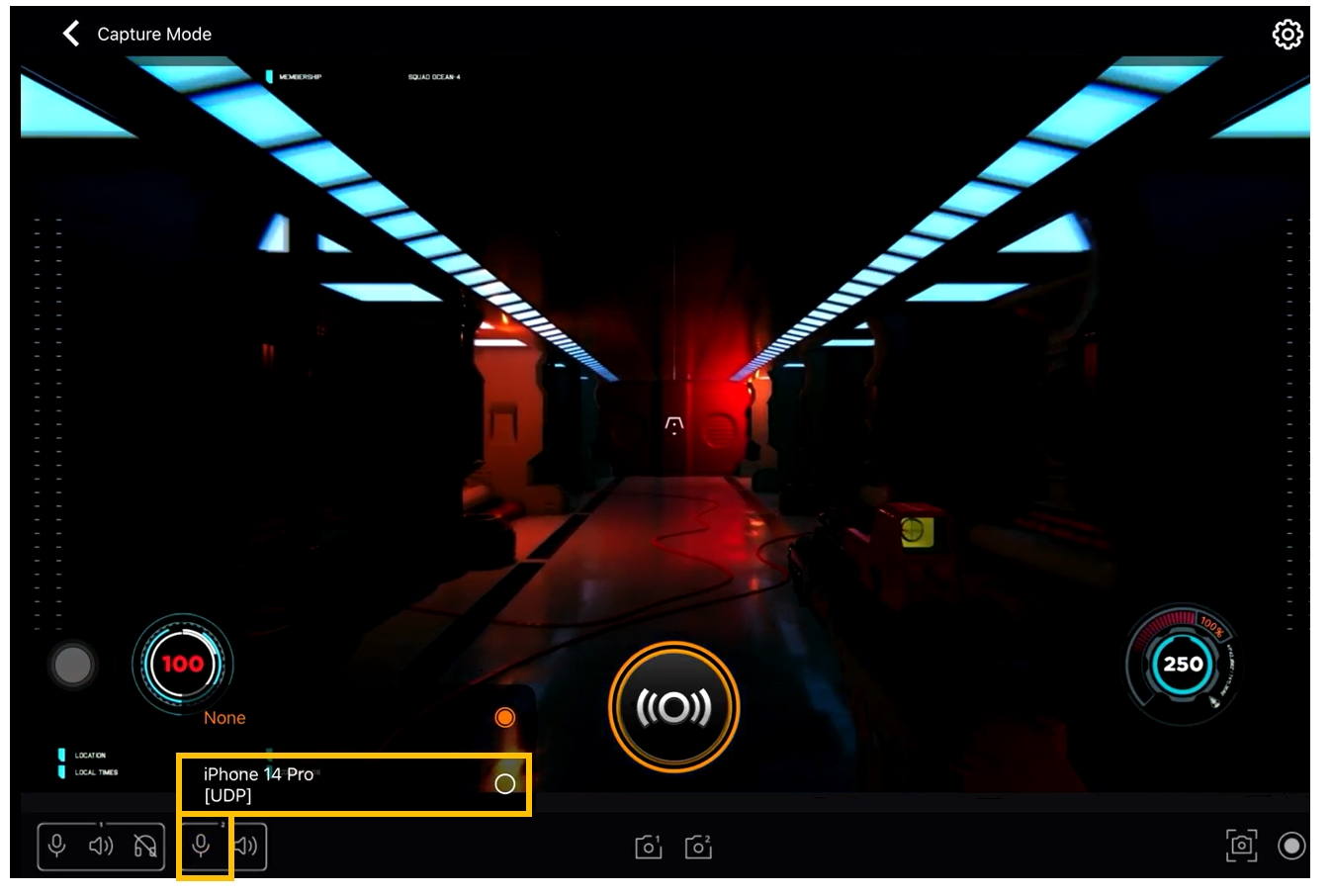

    • Open the app on iPhone → click Auto Detect → select your iPad→ On Ipad, click microphone of second audio source → select your iPhone.

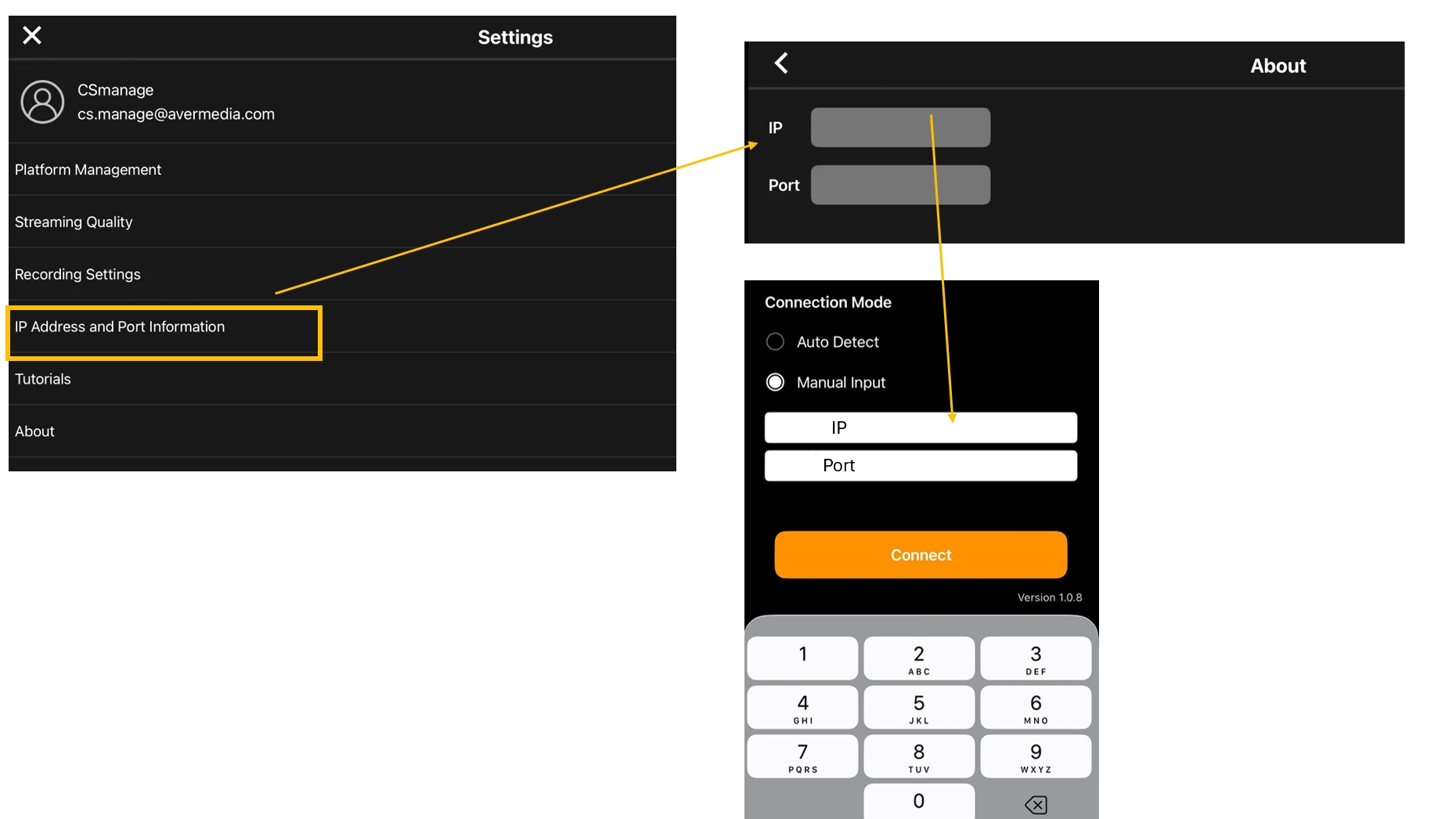

    • If your iPad doesn’t appear, → Go to Settings in Live Streamer App (iPad) → find IP Address & Port →click Manual Input on LiveStreamerLink (iPhone), Enter the IP Address & Port shown on the Live Streamer App (iPad)→On Ipad, Return to preview page → click microphone of second audio source → select your iPhone.


Step 5: Screenshots & Recording

  • Bottom-right corner:

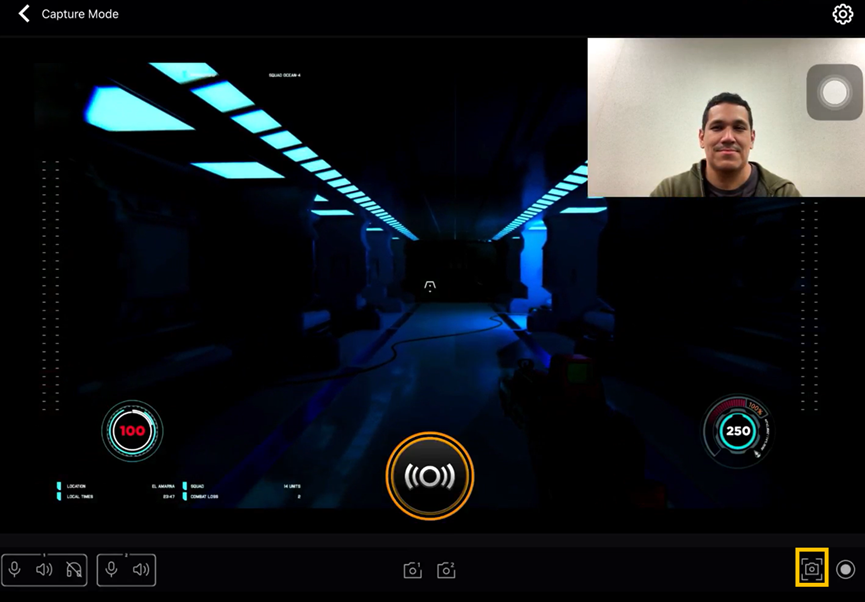

    • Tap camera icon to take a screenshot.
    • Tap recording icon to record video.

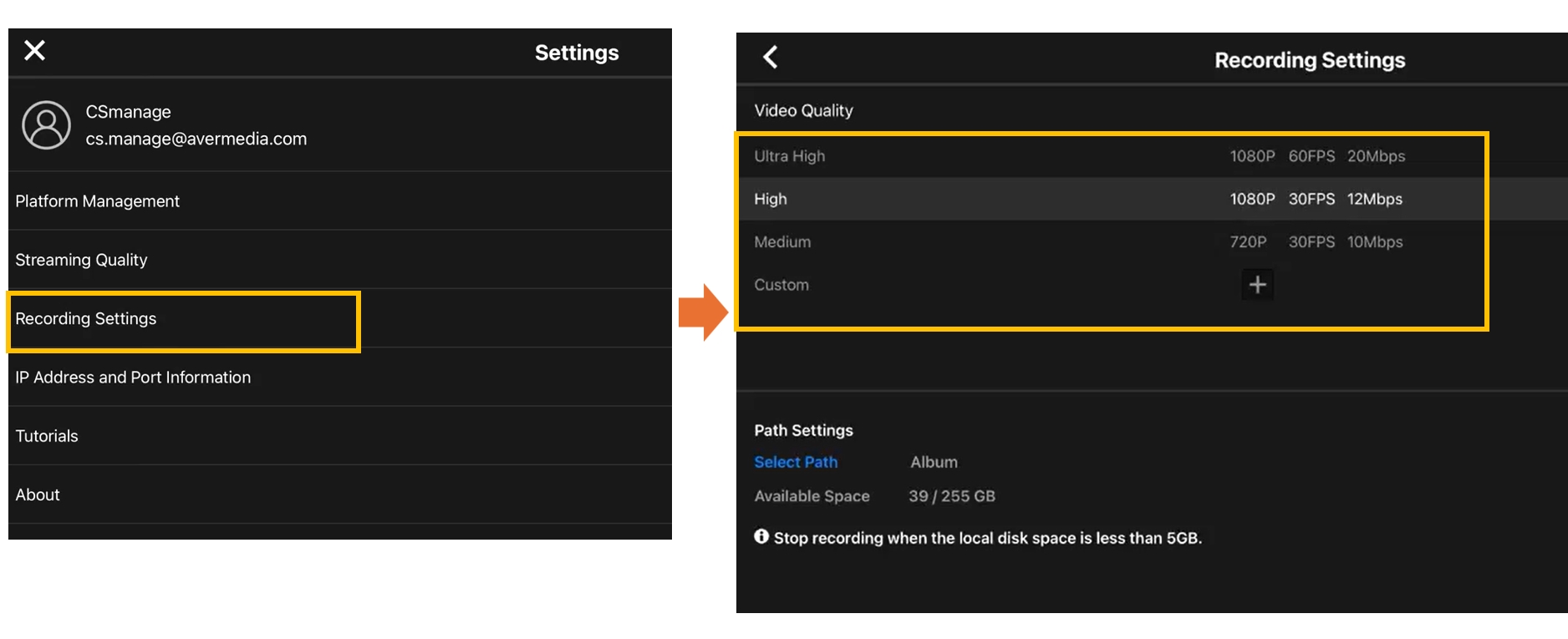

  • Change resolution in Recording Settings.

Important: You cannot stream and record at the same time.


Step 6: Streaming Settings

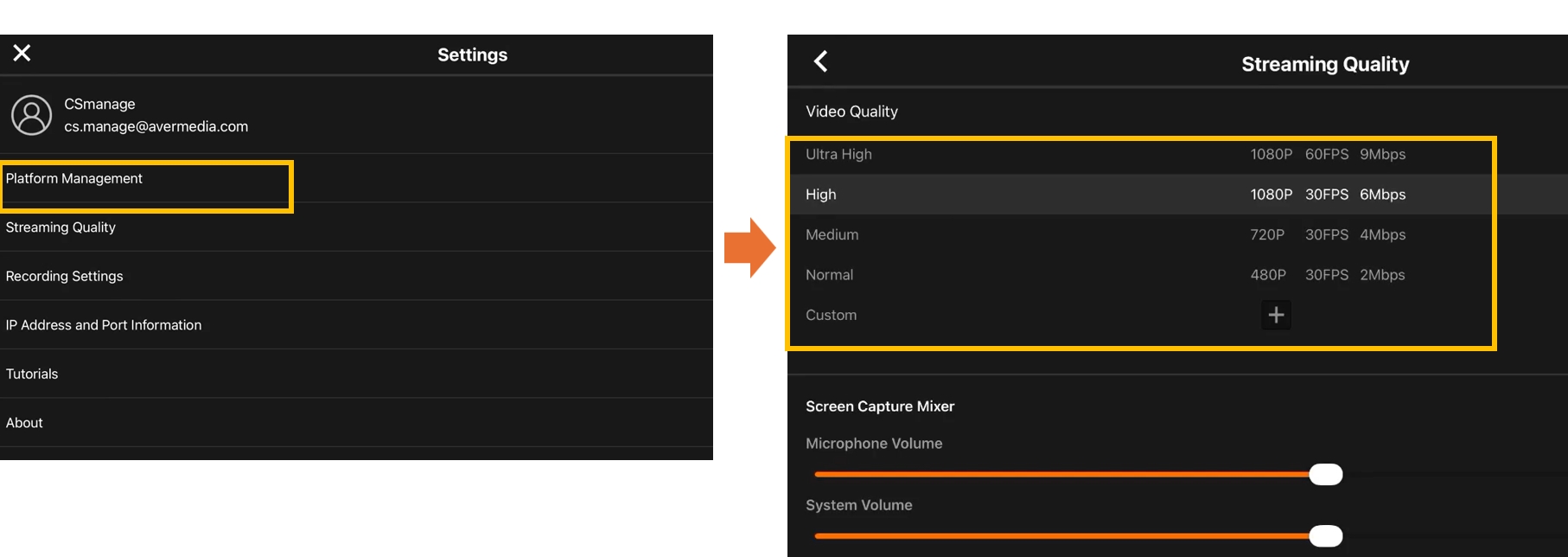

  • Click Streaming Quality to set video quality.

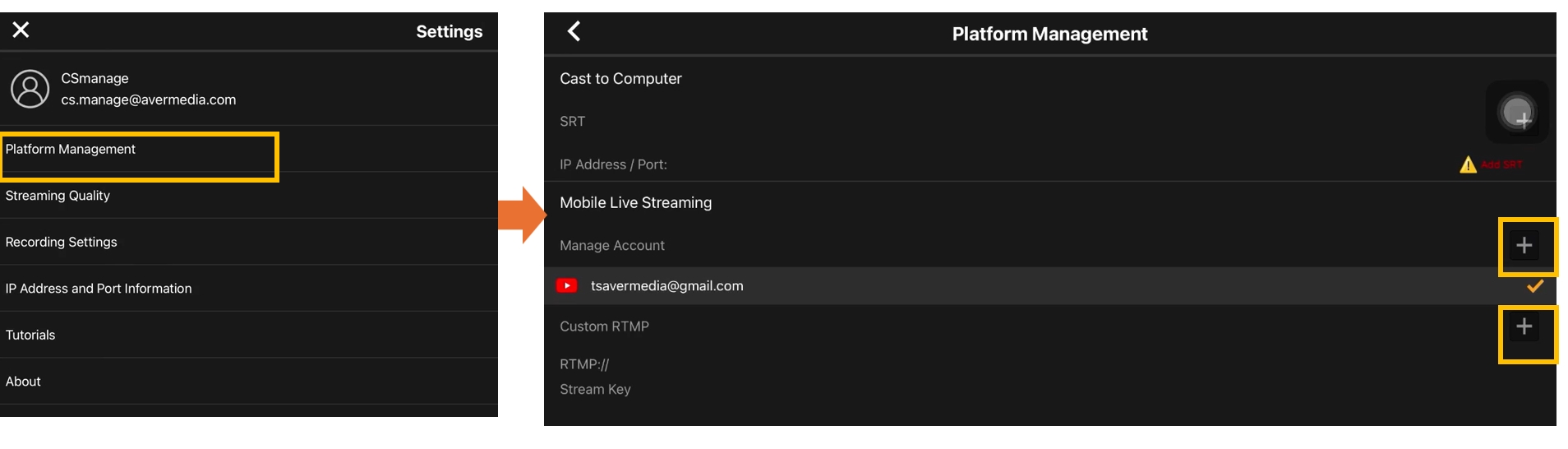

  • Go to Platform Management:
    • Add a streaming platform account or a custom RTMP link.
  • On preview page:

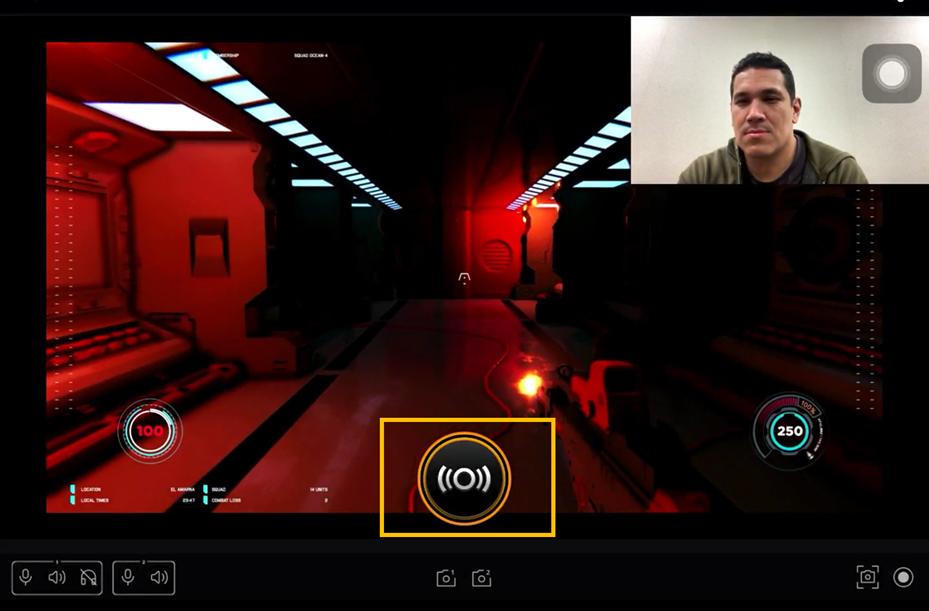

    • Tap the streaming icon in the middle.
    • Set your title and description.
    • Click Confirm to start streaming.
