Live Gamer Portable 2 PLUS - GC513
LIVE GAMER PORTABLE 2 PLUS
Jugar nunca había estado a este nivel. La capturadora “Live Gamer Portable 2 Plus” está basada en su predecesora: la LGP2. Conserva toda su versatilidad, con tres modalidades de uso integradas, múltiples entradas de audio y control de mezclas, yendo además un paso hacia delante en su tecnología, siendo ahora compatible con la resolución Ultra HD 4K, reproduciendo a 60 fotogramas por segundo.
Exporta Vídeo en Ultra HD 4K *
Se acabó sacrificar la experiencia 4K para poder grabar tus partidas. Disfruta del vídeo en formato 4Kp60, 100% libre de lags, gracias a la LGP2 Plus, cuyas características te permitirán ir aún más lejos, pudiendo grabar tus game plays en Full HD y a una velocidad de 60 fps.
*No es compatible con HDR.
Modo para PC
Experimenta el streaming instantáneo.Comprendemos la frustración que suponen los ajustes e instalaciones necesarias para utilizar este tipo de dispositivos… Pero ya puedes ir olvidándote de todo ese rollo. Para utilizar tu LGP2 Plus, solamente tendrás que sacarla de su caja.
Modo sin PC

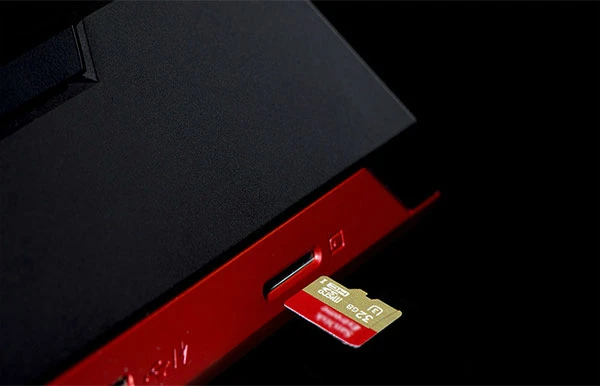

Es decir, grabar sobre la marcha.¿Qué te parecería recorrer el mundo con tu LGP2 Plus? Simplemente pulsa el botón de grabar y la capturadora comenzará a registrar el material directamente en 1080p60, guardando todo el contenido en una tarjeta Micro SD. Esto es todo lo que necesitas, no se compone de ningún otro hardware.
Modo de almacenamiento
Accede a tus archivos y compártelos de forma directa e inmediata. Cuando vuelvas a casa, conecta tu LGP2 en el Modo Almacenamiento y funcionará como si fuera un lector de tarjetas. Se acabó el miedo a perder tus archivos: ya no tendrás que correr el riesgo de que no se extraiga correctamente la tarjeta.
Tecnología “Plug and Play”
O lo que es lo mismo, “Conectar y jugar”, pues la LGP2 Plus no necesita más preparación que sacarla de su embalaje. Al contrario de otras capturadoras, LGP2 Plus funciona con la última tecnología UVC, es decir que para utilizarla, solo tienes que conectarla a tu ordenador y ¡empezar a transmitir!

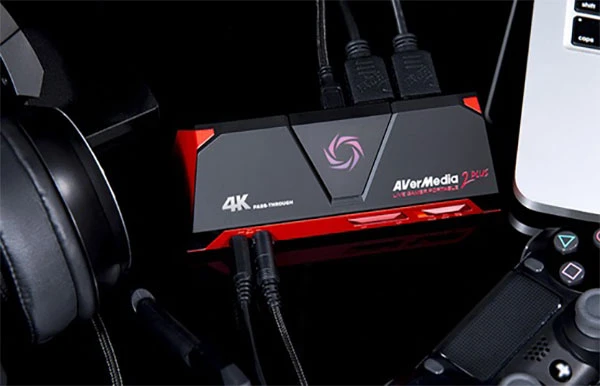

Comentarios en Directo y Party Chat
Añadir comentarios a tus retransmisiones o capturar tus chats grupales nunca ha sido tan sencillo: enchufa y adelante. Ponte tus auriculares, coge el mando y deja que LGP2 Plus se encargue del resto.

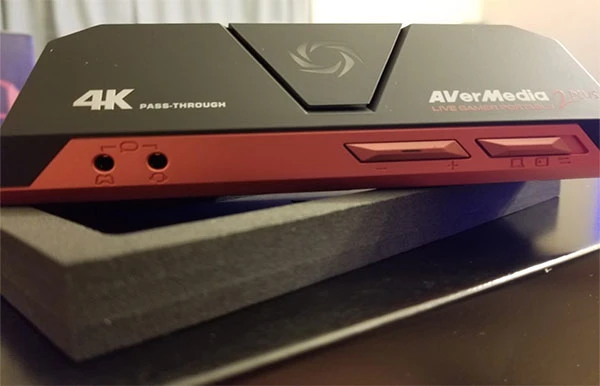

Conexiones
| Technical Specifications |
1. LGP2 PLUS does not support viewing/recording/streaming of HDCP protected signals 2. Micro SD Class 10 card is required for PC-Free recording, Micro SD card is not included. 3. Micro SD maximum capacity support: 128GB 4. Micro SD Supported formats: FAT32 format / exFAT format - When using the "FAT32 format" microSD card, Due to the specification of FAT32, movies are divided and saved every 4 GB (about 25 minutes). - Continuous recording is possible when using "exFAT format" microSD card |
| System Requirements(For dedicated streaming PC) | Operating System : Windows® 7 / 8.1 /10 or later (Support UVC Protocol) 1.Mac with an Intel processor: macOS 11 or later 2.Mac with an Apple M series processor: macOS 11 or later* (*Not compatible with macOS 12) (Support UVC Protocol) For 1080p60 iMac 2013: - 2.9GHz quad-core Intel Core i5 processor - 2.5GHz quad-core Intel Core i7 processor - 2.8GHz quad-core Intel Core i7 processor |

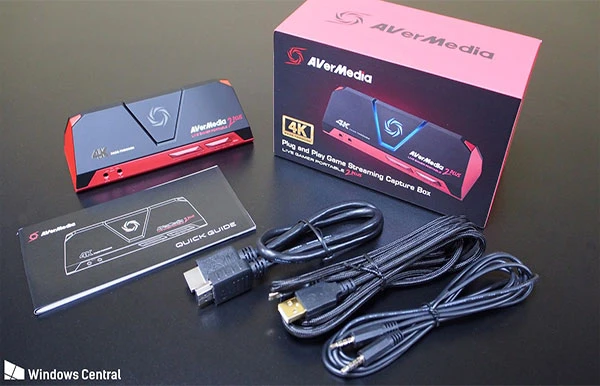

| What's in the box |
|
Análisis
AVerMedia Live Gamer Portable 2 Plus capture device has 4K passthrough and PC-free mode
Análisis
AVerMedia Live Gamer Portable 2 Plus Review — Capture Device for Techies and Newcomers Alike
Análisis
Doing It In 4K With Our Review Of The AVerMedia Live Gamer Portable 2 Plus
Análisis
4K passthrough without a PC? Absolutely! – AVerMedia Live Gamer Portable Plus 2 capture box review
Análisis
Avermedia Live Gamer Portable 2 Plus Review – A Future-Proof Upgrade for Streamers and Pro Players
Análisis
AverMedia Live Gamer Portable 2 Plus adds 4K passthrough support to a great capture card
Análisis
AVerMedia Live Gamer Portable 2 Plus Review – Flexible Streaming (Hardware)
Preguntas frecuentes
Audio
Micro SD Card
VRR
Troubleshooting
疑難排解
Settings
MAC M1
How do I start to use the Device
Software Usability
Hardware usability
Features/Functions
OBS
Chromebook
Windows
Mac OS
セットアップ
セットアップ・仕様
接続機器・設定
4K / HDR対応
VRR対応
音声端子
仕様
仕様・ソフト
仕様・ソフト（コントロール部）
仕様・ソフト（ミキサー部）
ストレージ
（PCモード）仕様・ソフト
（単体モード）仕様・設定
録画
配信
実況
再生
再生・編集
編集
Mac対応
相性
動画編集ソフト
ファイル管理
アップロード
ソフト
購入前のお問合せ
F225本体・付属品
セットアップ、Wi-Fi接続
テレビ視聴、設定画面
録画、予約録画、録画再生
アプリ
番組表
通信
設定
その他
困った時は
更新
EOL All
Streaming
Capturing
All Topics
Recording
Storage
Indicator Light
File management
Voice Commentary
GameMate
Upload
Playback & Video Quality
Editing & Converter
Live Stream
Installation
Watching TV
Stream Engine
Comparison Chart
Why do I only see a black screen in the software preview with no error messages? How could I fix the error message Resolution is not supported? Does LGP2 Plus support QHD (2560x1440) resolution on Pass-through display? Every time I connect the capture device to Streaming Center or OBS, the software crashes, and an error message appears saying, "Device Cannot Function Properly." What should I do? Why can’t I hear the game audio in preview and my recording video clip? Can AVerMedia capture card devices work with Mac computers with M1, M2, M3, M4 series? Why is the audio stuttering, cracking, or choppy in the software preview? How to set up? Is there any video to refer to? Device connection keeps saying no input signal. What is HDCP and how could I fix HDCP message appear on my preview? How do I fix the device keep flashing in blue light, or constant red light problem? Is there any way my PC can listen to the audio through the hdmi on my GC570 or other capture device? Device connection keeps saying no input signal, how can I fix it? Recommended microSD card's capacity What do I do with the error" RECentral Express does not have access........" on MAC before I open the software How do I fix the device stay in red and won't allow me to record in PC free mode? How do I solve the problem of recordings with wrong date in PC-free mode? Unable to start recording in PC-Free mode, LGP2 / LGP2 Plus LED displays a red LED. How to resolve this error? Why am I hearing static or buzzing noise from my headset? Why can't my friends hear my voice in the Xbox One party chat settings? Can I record the reboot and BIOS via AVerMedia's device? How to conduct a system performance test by RECentral Express on MacOS? How do I stream my video on Twitch through the RECentral Express In RECentral Express, the recorded video files which have been removed manually via Finder still show on Media Share Page. How to detele them completely? The display in RECentral 4 during preview is unstable (e.g., frame drops, image distortion). What should I do? Firmware update usage and reminder Can I record from an iOS/iPadOS/Android device using an AVerMedia capture card? Why do you hear the same content twice in the video? Can I set the GC513 to save video at 30 or 25 fps via PC Free mode. How to set up with Streamlab OBS How to set up OBS Studio with my Live Gamer Portable 2 PLUS GC513 ? When trying to import PC Free mode recorded MOV files into Adobe Premiere Pro receive following error message: "the file has no audio or video streams." Is there any solution available? How do I check if my LGP2 Plus is ready or not? (PC mode) How do I adjust overall audio balance? A list of compatible micro SD cards What type of headsets supported by LGP2 (GC510)/ LGP2 Plus (GC513)? RECentral 4 shows an error message with code 0x82EB69EB. How to fix it? When previewing the screen with RECentral 4, there is a situation of broken or distorted images. How can this be improved?
Descargas
Firmware(Mac)
Firmware(Win)
Plugin(macOS)
Plugin(Win)
Assist Central
Utility(macOS)
Utility(Windows)
RECentral(Mac)
RECentral (Win)
Connect (Mac)
Connect (Win)
CamEngine(Chrome)
CamEngine(Mac)
CamEngine(Win)
Download Manager
Application(Windows)
Application(macOS)
Driver
Firmware
Application
Utility & FW(Windows)
Utility & FW(macOS)
Utility (Chromebook)
Utility
Compatibility Tool
Quick Guide
User Manual
Datasheet
Certificates
Date : 2024-12-31 00:00:00
Version: [Application] RECentral4 v4.7.114.1Operating System: Win10 x64, Win 11
Description:
Resolving the Issue of Unable to Select Multi-Channel Audio on Windows 11 24H2
Date : 2024-12-16 00:00:00
Version：[Application] Diagnosis Tool v2.0.1.8OS：Win10 x64, Win11
Description：
Support GC553G2、GC575和GC571
Date : 2024-10-17 00:00:00
Version：[Application ] RECentralExpress v1.2.92OS：macOS 15
Description：
Fixed an issue where the screen capture function fails in multi-mode
Date : 2023-06-17 00:00:00
Version：GC513 Firmware 2.1.7.14 (Win)OS：Win10 x64, Win 11
Description：
Firmware update for this version is only necessary in specific scenarios: when the game console is Xbox Series X|S or PS5 and the screen connected to LGP2+ supports Variable Refresh Rate (VRR). Please note that LGP2+ itself does not support VRR functionality, but updating the firmware can prevent black screen or no signal issues. Additionally, HDMI Passthrough can display non-VRR content correctly.
The firmware update is divided into two main steps:
Step 1. Run the firmware update tool:
1) Switch the LGP2+ mode switch to PC mode and run the "LiveGamerPortable2PlusUpdate....exe" file.
2) Follow the instructions on the firmware tool and do NOT interrupt the process. Once the tool shows the process is complete totally, unplug and re-plug the USB cable.
Step 2. Update the Bin file:
1) Switch the device to Card-Reader mode, insert the SD card into the device and plug in the USB cable.
2) Copy the "update" folder to the root directory of the Micro SD card (NTFS format is not supported), including both LGP2.bin files in the "update " folder.
3) Switch the device to PC-Free mode and wait for the device update to complete (do NOT interrupt the process)
4) During the update, the device's LED will flash blue. Wait until the LED is turned off indicating the update is complete.
5) Unplug and re-plug the USB cable.
Note: To ensure the best compatibility with microSD cards, please use one among the list here:
https://www.avermedia.com/us/support/faq/faq_us_532
Date : 2023-04-27 00:00:00
Version：GC513 Firmware 2.1.7.13Description：
1. Powerup operation performance gets enhanced.
2. To capture high-quality game sounds, add a protection algorithm to prevent the capture card from being affected by some computers' AI denoise reduction.
Note: To ensure the best compatibility with microSD cards, please use one among the list here:
https://www.avermedia.com/us/support/faq/faq_us_532
Firmware Update Instructions:
1) Switch the device to Card-Reader mode, insert the SD card into the device and plug in the USB cable.
2) Copy the "update" folder to the root directory of the Micro SD card (NTFS format is not supported), including both LGP2.bin files in the "update " folder.
3) Switch the device to PC-Free mode and wait for the device update to complete (do NOT interrupt the process)
4) During the update, the device's LED will flash blue. Wait until the LED is turned off indicating the update is complete.
5) Unplug and re-plug the USB cable
Date : 2022-10-03 00:00:00
Version：[Application] Diagnosis Tool v2.0.1.13OS：Win10 x64,Win11
Description：
New model GC551G2 support
Date : 2020-10-26 00:00:00
- Version：[Application] Tool
- OS：macOS 10.14 & 10.15
- Description：
- 1. Fixed bugs
GC513 Utility Tool for Mac
1. Selecting recording qualities
2. Adjusting audio mixing ratio
3. HDCP handshaking On/Off switch
Date : 2019-12-31 00:00:00
- Version：v2.0.1.5
- OS：Win10 x64
- Description：
1. Support software updates through internet.
2. Support sending test result for unknown platform.
Date : 2019-10-01 00:00:00
- Version：StreamEngine v2.0.0.36
- OS：Win10 x64
- Description：
Modified localized strings.
Modified device name.
Date : 2018-10-30 00:00:00
- Versión：GC513 Live Gamer Portable 2 Plus Setup Tool _BETA
- SO：macOS 10.13 (High Sierra)/ macOS 10.14 (Mojave)
- Descripción：
GC513 Utility Tool for Mac
1. Selecting recording qualities
2. Adjusting audio mixing ratio
3. HDCP handshaking On/Off switch
