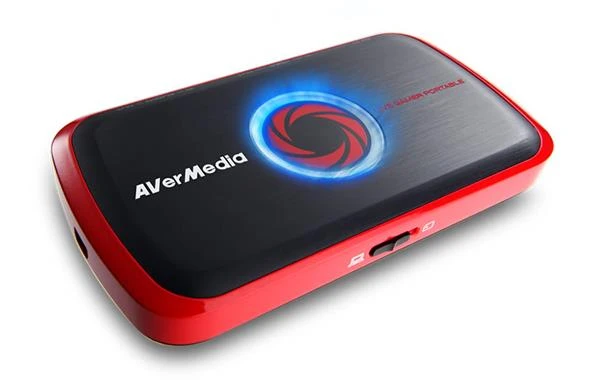

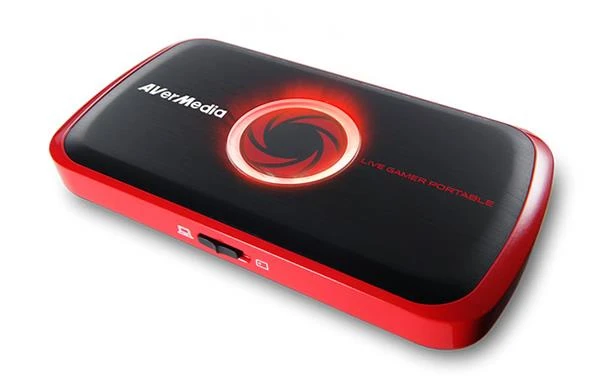

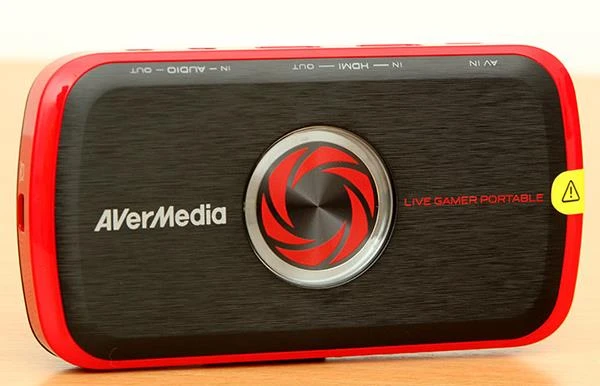

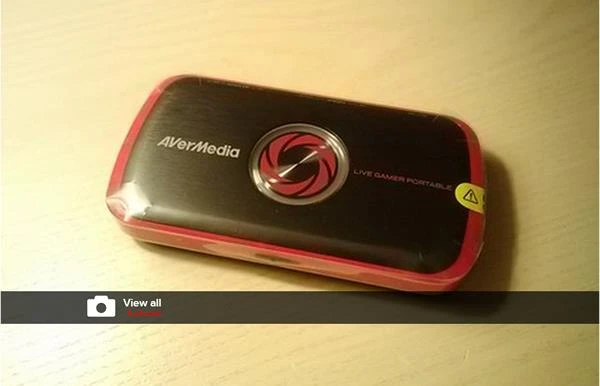

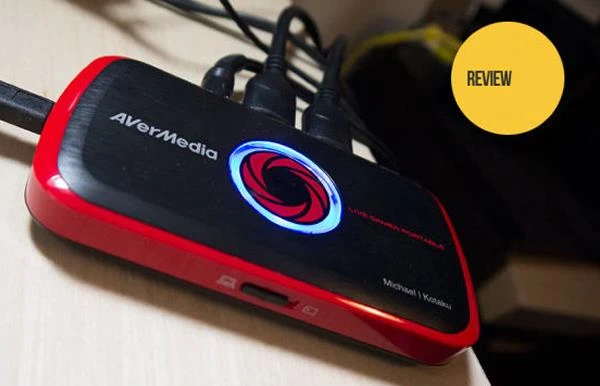

LGP is a capture card that accompanies you to battles at home, or on the road. Never miss another opportunity to record and share your awesome road games, tournaments, or friendly matches.
1-Click Full HD Recording without a PC

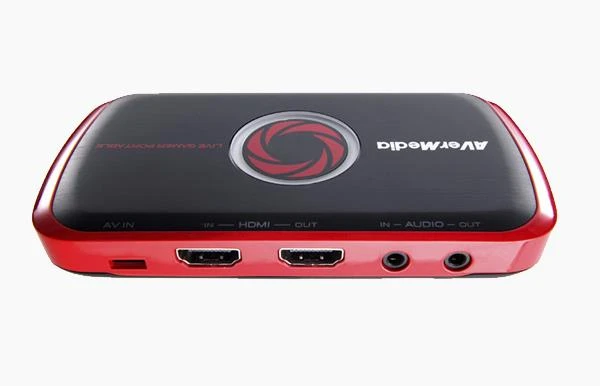

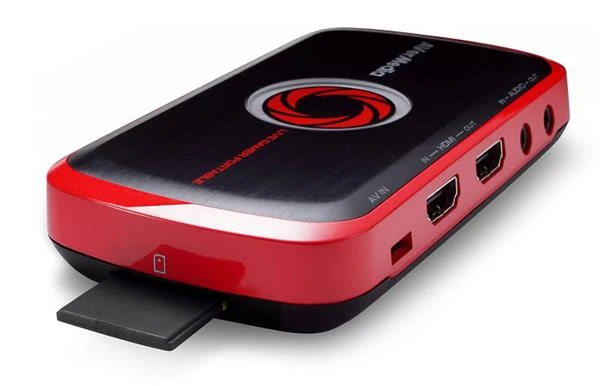

Live Gamer Portable (LGP) packs all the essentials a gamer needs in its sleek body. HDMI or component inputs for all mainstream consoles*, an SD card slot for capturing without a PC, and a hot button that activates 1080p recording with a single click.
* To record PlayStation®4, upgrade your system software to version 1.7 or later. Click here for more information on how to disable HDCP on PS4.
Playful, yet Powerful
LGP simplifies live streaming so much you almost forgot how much trouble it used to be. You can even record and stream your gameplay simultaneously, with voice commentary. The H.264 hardware encoder ensures top quality video without overloading your CPU.
Your Choice of Application and Platform
LGP works with any DirectShow compliant streaming application such as XSplit or OBS, and broadcasts to YouTube, Twitch, or Ustream right out of the box.
You also have the privilege to stream with the user-friendly RECentral.
- Technical Specifications
- • Interface:USB 2.0 (USB Mini)

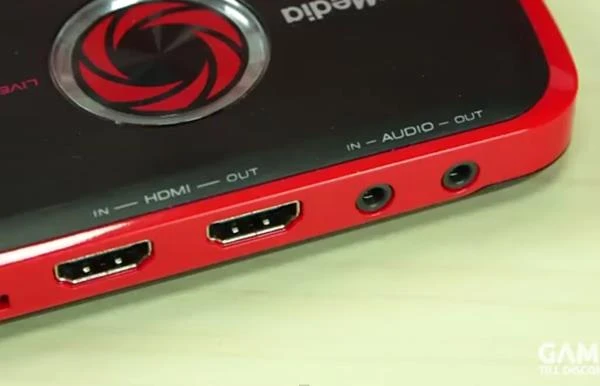

• Video Input:HDMI / Component
• Video Output (Pass-Through):HDMI
• Audio Input:HDMI, RCA L/R, 3.5 mm microphone
• Audio Output (Pass-Through):HDMI, 3.5 mm stereo
• Max Pass-Through Resolutions:1080p60
• Max Record Resolutions:1080p30
• Supported Resolutions (Video input):1080p, 1080i, 720p, 576p, 576i, 480p, 480i
• Operation Modes:PC Mode, PC-free Mode
• Record Format:MPEG 4 (H.264+AAC) / Supports hardware encoding
• Dimension (W x D x H):131 x 70 x 22 mm (5.2 x 2.8 x 0.9 in)
• Weight:117 g (4.1 oz)
Notes:
1. LGP does not support viewing/recording/streaming of HDCP protected signals
2. SDHC Class 10 SD card is required for PC-Free recording, SD card is not included.
- System Requirements(For dedicated streaming PC)
- Operating sytem: Windows® 10 (1909 version or previous versions, Not support 2004 version / 8.1 / 7 ) ; MacOS* 10.9 / 10.10 / 10.11 / 10.12 / 10.13 *Please note that C875 does not support MacOS 10.14 or above. For 1080p30 Desktop: Intel® Core™ 2 Duo 2.8 GHz/AMD Athlon 64 X2 3.0 GHz
VGA card supporting DirectX 10.0c
4GB
Laptop: Intel® Core™ i7-4810MQ
NVIDIA GeForce GTX 870M
4 GB RAM (8 GB recommended)
Notes:
1. RECentral for MAC, does not support video streaming it only support video recording.
- What's in the box
- • Live Gamer Portable (C875)
• HDMI cable
• Component cable
• USB cable
• 3.5 mm audio cable
• PS3 cable
• Carry pouch
• Quick guide
ถามและตอบ
Audio
Micro SD Card
VRR
Troubleshooting
疑難排解
Settings
MAC M1
How do I start to use the Device
Software Usability
Hardware usability
Features/Functions
OBS
Chromebook
Windows
Mac OS
セットアップ
セットアップ・仕様
接続機器・設定
4K / HDR対応
VRR対応
音声端子
仕様
仕様・ソフト
仕様・ソフト（コントロール部）
仕様・ソフト（ミキサー部）
ストレージ
（PCモード）仕様・ソフト
（単体モード）仕様・設定
録画
配信
実況
再生
再生・編集
編集
Mac対応
相性
動画編集ソフト
ファイル管理
アップロード
ソフト
購入前のお問合せ
F225本体・付属品
セットアップ、Wi-Fi接続
テレビ視聴、設定画面
録画、予約録画、録画再生
アプリ
番組表
通信
設定
その他
困った時は
更新
EOL All
Streaming
Capturing
All Topics
Recording
Storage
Indicator Light
File management
Voice Commentary
GameMate
Upload
Playback & Video Quality
Editing & Converter
Live Stream
Installation
Watching TV
Stream Engine
Comparison Chart
ดาวน์โหลด
Firmware(Mac)
Firmware(Win)
Plugin(macOS)
Plugin(Win)
Assist Central
Utility(macOS)
Utility(Windows)
RECentral(Mac)
RECentral (Win)
Connect (Mac)
Connect (Win)
CamEngine(Chrome)
CamEngine(Mac)
CamEngine(Win)
เครื่องมือจัดการการดาวน์โหลด
Application(Windows)
Application(macOS)
แอปพลิเคชันและไดรเวอร์
เฟิร์มแวร์
Application
Utility & FW(Windows)
Utility & FW(macOS)
Utility (Chromebook)
ยูทิลิตี้
เครื่องมือเพื่อความเข้ากันได้
คู่มือฉบับย่อ
คู่มือผู้ใช้
เอกสารข้อมูล
Certificates
Date : 2018-10-15 00:00:00
- Version：[Application] RECentral: v1.3.0.117
- OS：Win7 x86, Win7 x64, Win8.1 x86, Win8.1 x64, Win10 x86, Win10 x64
- Description：
1. Fix some minor issues.
Date : 2018-10-15 00:00:00
- Version：[Driver] v3.7.x.39
- OS：Win7 x86, Win7 x64, Win8.1 x86, Win8.1 x64, Win10 x86, Win10 x64
- Description：
1. Fix some minor issues.
Date : 2018-10-15 00:00:00
- Version：[Stream Engine] V1.3.0.17 (Beta)
- OS：Win7 x86, Win7 x64, Win8.1 x86, Win8.1 x64, Win10 x86, Win10 x64
- Description：
1. Support 64-bit streaming software (e.g. OBS, Streamlabs OBS…etc).
2. Add French UI support.
3. Remove the independent audio capture filter.
User manual: Link
Date : 2018-10-15 00:00:00
- Version：[Application & Driver] RECentral:1.3.0.117 (Beta) Driver:3.7.x.39 StreamEngine:1.3.0.17 (Beta)
- OS：Win7 x86, Win7 x64, Win8.1 x86, Win8.1 x64, Win10 x86, Win10 x64
- Description：
-Package with Stream Engine* which can be supported by 64-bit streaming software (e.g. OBS, Streamlabs OBS…etc).
* Stream Engine’s user manual: Link
Date : 2018-03-05 00:00:00
- Version：[Recentral Beta Mac] RECentral:v1.2.21 (Beta)
- OS：Mac OSX 10.13 High Sierra
- Description：Fixed inverted icon issue
Date : 2017-06-15 00:00:00
- Version：[Application & Driver] RECentral:1.3.0.116 Driver:3.7.x.39 (Beta)
- OS：Win7 x86, Win7 x64, Win8.1 x86, Win8.1 x64, Win10 x86, Win10 x64
- Description：1. Fixed Twitch crash issue.
Date : 2017-06-07 00:00:00
- Version：[Recentral Beta Mac] RECentral:v1.2.21 (Beta)
- OS：Mac OS 10.8 / 10.12
- Description：Fixed bug : Can’t record 720p60 file
Date : 2017-04-26 00:00:00
- Version：[Application & Driver] RECentral:1.3.0.114 Driver:3.7.x.39 (Beta)
- OS：Win7 x86, Win7 x64, Win8.1 x86, Win8.1 x64, Win10 x86, Win10 x64
- Description：1. Support AVerMedia mic devices.
2. Fixed some issues.
Date : 2017-02-22 00:00:00
- Version：[Application & Driver] RECentral:1.3.0.112 Driver:3.7.x.39 (Beta)
- OS：Win7 x86, Win7 x64, Win8.1 x86, Win8.1 x64, Win10 x86, Win10 x64
- Description：1. Fixed windows desktop black screen when Open/Close setting wizard.
Date : 2016-10-14 00:00:00
- Version：[Application & Driver] RECentral:v1.3.0.109 Driver:v3.7.x.39
- OS：Win7 x86, Win x64, Win8.1 x86, Win8.1 x64, Win10 x86, Win10 x64
- Description：- Improve stability
- Fixed audio wasn’t recorded if changing audio sample rate while recording
- Support new Twitch API
- Fixed sometimes record was stopped unexpectedly
- Fixed capture device can’t be detected if system has installed ASUS virtual camera
- Fixed some YouTube account cannot start streaming
- Update win10 logo driver
Date : 2016-04-14 00:00:00
- Version：[Application & Driver] RECentral:v1.3.0.104 Driver:v3.7.x.39
- OS：Win 7 x86, Win 7 x64, Win 8.1 x86, Win 8.1 x64, Win 10 x86, Win 10 x64
- Description：•Minor bug fixes and other improvements.
Date : 2016-02-19 00:00:00
- Version：[Driver] 3.7.x.39 (Beta)
- OS：Win 7 x86, Win 7 x64, Win 8.1 x86, Win 8.1 x64, Win 10 x86, Win 10 x64
- Description：•Minor bug fixes and other improvements.
Date : 2016-02-19 00:00:00
- Version：[Application & Driver] RECentral:v1.3.0.104 (Beta) Driver:v3.7.x.39 (Beta)
- OS：Win 7 x86, Win 7 x64, Win 8.1 x86, Win 8.1 x64, Win 10 x86, Win 10 x64
- Description：•Minor bug fixes and other improvements.
Date : 2016-01-14 00:00:00
- Version：Stream Engine v1.3.0.13 (Beta)
- OS：Win7 x86, Win7 x64, Win8.1 x86, Win8.1 x64, Win10 x86, Win10 x64
- Description：•The LGP Stream Engine makes LGP compatible with DirectShow compliant software (e.g., OBS, WireCast, FME...) by creating a virtual device called “LGP Stream Engine”.
•Simultaneously record the LGP video source while streaming.
* LGP driver must be pre-installed before running the LGP Stream Engine.
Date : 2014-02-26 00:00:00
- Version：firmware_mac v20
- OS：Mac OS 10.7 and above
- Description：The official release for Live Gamer Portable.
Date : 2014-03-19 00:00:00
- Version：1.0.0.9 (Windows) 1.0.1 (Mac)
- OS：Win 7 x86, Win 7 x64, Win 8 x86, Win 8 x64
Mac OS 10.7 and above - Description：This utility helps you quickly convert the TS format files into MP4 format.
Date : 2013-10-29 00:00:00
- Version：1.0.0.9
- OS：Win 7 x86, Win 7 x64, Win 8 x86, Win 8 x64
- Description：This utility helps you quickly convert the TS format files into MP4 format.
Date : 2013-09-27 00:00:00
- Version：Stream Engine V1.0.0.35
- OS：Win 7 x86, Win 7 x64, Win 8 x86, Win 8 x64
- Description：•The LGP Stream Engine makes LGP compatible with DirectShow compliant software (e.g., OBS, WireCast, FME...) by creating a virtual device called ??GP Stream Engine??
•Simultaneously record the LGP video source while streaming.
* LGP driver must be pre-installed before running the LGP Stream Engine.
Date : 2014-05-21 00:00:00
- Version：v21
- OS：Win 7 x86, Win 7 x64, Win 8 x86, Win 8 x64
- Description：•Fixed the alterations in input source resolution that occur in PC-Free mode.
•Fixed compatibility with some LG Monitors.
•Fixed the no audio issue that occurred randomly with HDMI pass-through.
•Minor bug fixes and other improvements.
Date : 2013-09-09 00:00:00
- Version：v9
- OS：Win 7 x86, Win 7 x64, Win 8 x86, Win 8 x64
- Description：•Minor bug fixes and other improvements.
Date : 2013-06-17 00:00:00
- Version：v7
- OS：Win 7 x86, Win 7 x64, Win 8 x86, Win 8 x64
- Description：•PC-Free mode now support 1080p / 16Mbps.
•Support HDMI Color Range selection.
•Compatibility improved.
