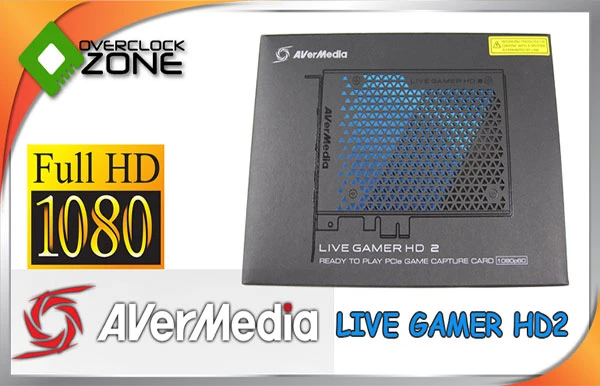

The second installment of Live Gamer HD has arrived! Packed with more power and style, Live Gamer HD 2 (LGHD2) is a plug-and-play PCIe-capturing beast that records and streams smooth, uncompressed, zero-lag gameplay in 1080p 60 fps.
1080p60 Uncompressed Video
LGHD2 is built for speed and quality. By capturing uncompressed videos, LGHD2 simplifies your PC operations and delivers smoother and sharper 1080p60 streaming.
Ready to Play: No Driver Needed
Tired of installing drivers? Don’t you worry. LGHD2 doesn’t require driver installation. Insert it into a PCIe slot and it’s ready to roll.
Flexible Audio Connection
Having more audio options is always a plus when it comes to capturing. Connect digitally via HDMI or analog via 3.5 mm ports, you can record audio from consoles, PCs, or even output to mixers for audio mixing—the flexibility is yours.
Compressed Video Output
Besides uncompressed videos, LGHD2 also delivers compressed videos that require less transmission bandwidth, so you can use multiple LGHD2s* to capture different sources at the same time.
*Multi-card-support software is required

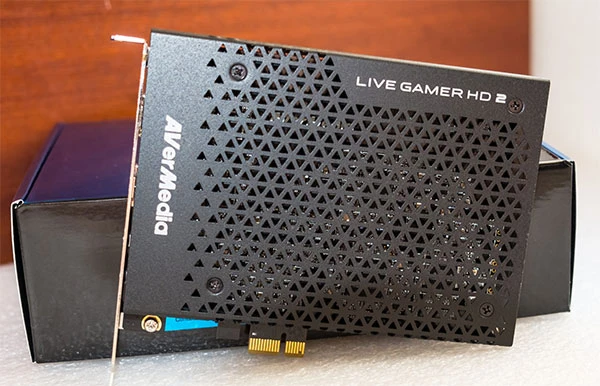

Get to Know the Design
If there’s a geometric shape that can represent gamers, it would be a triangle—a combination of vitality (a circle) and stability (a square) which outlines gamers’ charactistics. And based on this key element, we created a triangle metal mesh. Aside from its premium built quality and stylish design, it also provides excellent protection, ventilation, and allows the LED lighting to shine through.

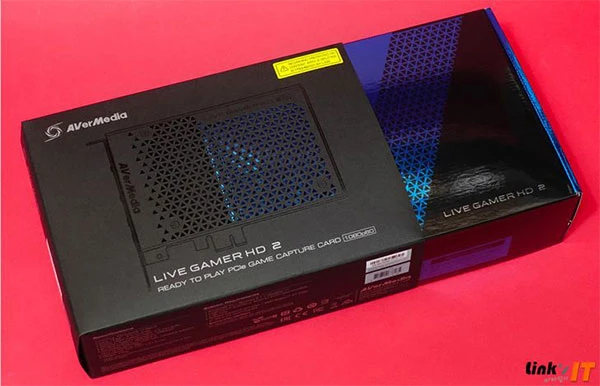

Packaging
The same design is beautifully presented on LGHD2’s packaging. Engraved and cut by high precision laser, the triangle mesh looks just as astonishing on paper sleeve as on metal sheet. The design of the inner box is also carefully thought through. Its pattern and silvery blue finishing mimics the LED lighting as you slowly pull it out of the sleeve. It's a one-of-a-kind unboxing experience.
RECentral 3—Stream in Perfection
The powerful and stylish RECentral has been further enhanced with multiple Pro features. Your stream will never look the same again.
Picture-in-Picture
Customize the look of your channel, now with even more contents! Overlay webcam, videos, announcements and more! Keep your fans entertained.
Interactive Elements
Show off new subscriptions with TwitchAlerts! Interact with viewers by adding your chatroom too.
Live Editing
No need to go through hours of recordings to find those highlights. Cut, trim, and merge your video while it’s being recorded.
Embedded Sharing
Share your channel to social media with one simple click, right within RECentral!
- Technical Specifications
- • Interface:PCI-Express Gen 2 x1
• Video Input:HDMI
• Video Output (Pass-Through):HDMI
• Audio Input:HDMI / 3-Pole 3.5 mm Jack
• Audio Output (Pass-Through):HDMI / 3-Pole 3.5 mm Jack
• Max Pass-Through Resolutions:1080p60
• Max Record Resolutions:1080p60
• Supported Resolutions (Video input):1080p, 1080i, 720p, 576p, 480p, 480i
• Record Format:MPEG 4 (H.264+AAC) / MJPEG
• Dimension (W x D x H):125 x 151 x 21.5 mm (4.92 x 5.94 x 0.84 in)
• Weight:145 g (5.11 oz)
Notes:
1. LGHD2 does not support viewing/recording/streaming of HDCP protected signals
- System Requirements(For dedicated streaming PC)
- Operating system: Windows® 10 / 8.1 / 7 *
For 1080p60 Desktop:
- Intel® Core™ i5-3330 or above (i7-3770 recommended)
- NVIDIA® GeForce® GTX 650 / AMD Radeon™ R7 250X or above are recommended
- 4 GB RAM
Notes:
* Windows® 10 / 8.1 (Support UVC Protocol) Windows® 7 Requires driver installation
1. Warning: Live Gamer HD2 is not compatible with X99 (ASUS, MSI, ASROCK) motherboards

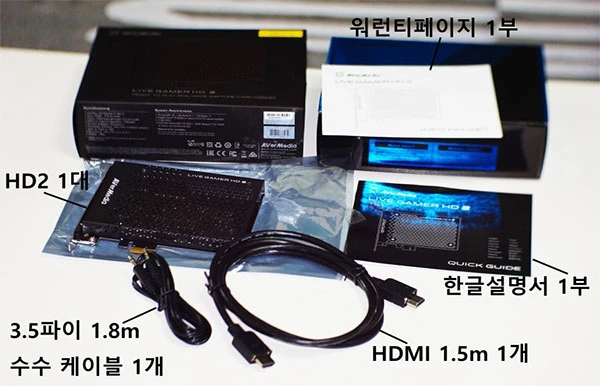

- What's in the box
- • Live Gamer HD 2 (GC570)
• HDMI cable
• 3-Pole 3.5mm audio cable
• Quick guide
Q&A
DOWNLOAD
Date : 2022-10-03 00:00:00
Version：[Application] Diagnosis Tool v2.0.1.13OS：Win10 x64,Win11
Description：
New model GC551G2 support
Date : 2022-07-13 00:00:00
Version：[Application] RECentral4 v4.7.44.1OS：Win10 x64,Win 11
Description：
Minor Bugs fix
Optimize program stability
Date : 2022-05-12 00:00:00
- Version：[Application] AssistCentral v1.2.0.13 Beta
- OS：Win10 x64 & Win11
- Description：
- For use with systems running Microsoft Windows 10 or 11 and equipped with AVerMedia discrete desktop capture card, USB capture card. Download and run directly onto the system you want to update. An internet connection is required. The related software and firmware will be downloaded and installed.
Date : 2022-02-24 00:00:00
- Version：[Application] RECentral v4.7.31.1 Beta
- OS：Win10 x64,Win 11
- Description：
- Updated Twitch API
Date : 2022-01-03 00:00:00
Version：StreamEngine v2.0.0.58 betaOS：Win10 x64,Win11
Description：
1. Fixed loading issue with stream engine.
2. Fixed compatibility problem while running NVidia Broadcast
3. Fixed audio issues with some platforms.
Date : 2021-10-04 00:00:00
- Version：[Application] RECentral 4 v4.7.24.1
- OS：Win10 x64,Win 11
- Description：
1.Support Windows 11
2. Improving AVerMedia UVC device compatibility.
Date : 2021-07-09 00:00:00
- Version：[Application] RECentral 4 v4.7.17.1
- OS：Win10 x64
- Description：
1. Fixed the video capture problem on the AMD graphics card problem
2. Fixed the audio disappear problem on the preview screen
3. Fixed Youtube HDR streaming problem on AMD graphics card
4. Improved the HDR video quality in multi-mode capture
Date : 2021-05-04 00:00:00
- Version：[Application] RECentral 4 v4.7.9.1 Beta
- OS：Win10 x64
- Description：
1. Improved the streaming stability problem on FaceBook
2. Improved the software compatibility problem
3. Adjusted the graphics card's default profile settings
Date : 2021-03-05 00:00:00
- Version：[Application] RECentral 4 v4.7.4.1
- OS：Win10 x64
- Description：
REC-922 Single mode preview page HDR enable/disable icon was revert
REC-923 Remaining time not display correctly fix.
Support AMD RX 6800 and RX 6900 record HDR
Fix the RGB light display mode
Date : 2020-12-16 00:00:00
- Version：[Application] RECentral 4 v4.6.0.12 Beta
- OS：Win10 x64
- Description：
- Change sender to fix unstable problem
Fix when enable instant highlight function and plug-out device lets ap close issue
Fix instant highlight Ui bug.
Date : 2020-10-23 00:00:00
- Version：[Application] RECentral 4 v4.5.0.37
- OS：Win10 x64
- Description：
- 1. Fixed streaming issue to YouTube platform.
Date : 2020-10-07 00:00:00
- Version：[Application] RECentral 4 v4.5.0.35
- OS：Win10 x64
- Description：
- 1. Removed Smashcast platform.
2. Improved the performance for decoding MJPEG 4K.
Date : 2020-09-25 00:00:00
- Version：StreamEngine v2.0.0.52
- OS：Win10 x64,Win11
- Description：
- 1. Fixed GC311 recording failed on Win10 20H1.
Date : 2020-07-10 00:00:00
- Version：[Application] RECentral 4 v4.5.0.25
- OS：Win10 x64
- Description：
- 1. Support Thai language.
2. Support HDR preview with HDR monitor.
3. Support audio recording up to 5.1 channels
4. Support capturing hardware accelerated application on Win10 1903
5. Fixed login failure of mixer platform.
6.Improved application performance
7.Fixed installation failed on some platforms.
Date : 2020-03-06 00:00:00
- Version：[Application] RECentral 4 Beta v4.3.1.87
- OS：Win10 x64
- Description：
- 1. Fixed YouTube Live Streaming issue.
2. Modified uploading file to YouTube work flow.
3. Fixed Windows WMI CPU utility is high on some platforms.
Date : 2020-01-03 00:00:00
- Version：RECentral v4.3.1.83
- OS：Win10 x64
- Description：
1. Use system’s AAC encoder, support audio bitrate 96Kbps, 128Kbps, 160Kbps and 192Kbps
2. Support AMD RX5700 4Kp60 HDR recording
3. Fixed login failure of Mixer platform.
4. Fixed captured application can’t be overlayed by other application.
Date : 2019-12-31 00:00:00
- Version：v2.0.1.5
- OS：Win10 x64
- Description：
1. Support software updates through internet.
2. Support sending test result for unknown platform.
Date : 2019-11-07 00:00:00
- Version：v2.0.1.2
- OS：Win10 x64
- Description：
Detect the compatibility of capturing cards and platform.
Date : 2019-10-03 00:00:00
- Version：RECentral v4.3.1.74
- OS：Win10 x64
- Description：
Modified button position of face sticker configuration.
Fixed the effect of color adjustment isn't linear for Live Gamer ULTRA.
Fixed there is no audio output when GC551 is removed and plugged in multi-mode.
Fixed resizing windows size is slow in multi-mode.
Improved memory usage during recording
Improved chroma key default value and algorithm.
Date : 2019-10-01 00:00:00
- Version：StreamEngine v2.0.0.36
- OS：Win10 x64
- Description：
Modified localized strings.
Modified device name.
Date : 2019-07-23 00:00:00
- Version：RECentral v4.3.1.71 (Beta)
- OS：Win10 x64
- Description：
Support RTMPS
Support Facebook API v3.2
Support adjusting application's display windows size automatically by windows screen size
Support HTML5 in embedded web browser in multi-mode.
Support feedback issues through AVerMedia official website
Improve the response time of user interface
Improve the response time of recording
Modified video resolution of the recording profiles "Optimal", "Good" and "Normal".
Modified localized strings.
Used DirectX12 as video rendering engine.
Fixed audio noise in recorded files when capturing PS4 gameplay.
Removed photo sharing to Twitter and Facebook
Removed video sharing to Facebook
Removed video editing function which provided in previos version
Date : 2018-11-06 00:00:00
- Version：[Driver] Driver: 1.0.x.14
- OS：Win7 x86
- Description：
1. Improve compatibility issues.
Date : 2018-12-19 00:00:00
- Version：v1.1.5.0
- OS： Win 7 x64, Win 8.1 x64, Win 10 x64, Win11
- Description：
1. Fix display error (picture enlargement) upon input resolution change
2. Fix black screen issue upon pressing "Alt+Tab" in connected computer's PC game
3. Fix pass-through monitor compatibility issue.
4. Fix platform compatibility issue when running firmware upgrade.
Date : 2018-11-06 00:00:00
- Version：[Application] RECentral: v4.3.0.35
- OS：Win 10 x64
- Description：
1. Fixed some minor issues.
Date : 2018-11-06 00:00:00
- Version：[Driver] Driver: 1.0.x.14
- OS：Win7 x64
- Description：
1. Improve compatibility issues.
Date : 2018-09-20 00:00:00
- Version：[Application] RECentral: v4.3.0.34 (Beta)
- OS：Win10 x64
- Description：
1.Fix an issue that cannot stream to Facebook.
2.Fix an issue that cannot stream to Twitch.
3.Fix some other issues(https://www.avermedia.com/gaming/download/recentral4#ans_part).
Date : 2018-08-14 00:00:00
- Version：[Application] RECentral: v4.2.0.35
- OS：Win10 x64
- Description：
1. Fixed an issue that some functional descriptions were wrong.
2. Fixed an issue that the frame rate was unstable when recording 240Mbps.
Date : 2018-06-25 00:00:00
- Version：[Application] RECentral: v4.2.0.30
- OS：Win 7 x64, Win 8.1 x64, Win 10 x64
- Description：
Fixed some minor issues.
Date : 2018-04-16 00:00:00
- Version：[Application] RECentral: v4.1.0.18 Beta
- OS：Win 7 x64, Win 8.1 x64, Win 10 x64
- Description：1.Fixed some audio issues when recording.
2.Fixed multiple streaming issues on its profile page.
3.Improve platform compatibility of GC550.
4.Add a full-screen display setting to keep/extend aspect ratio.
5.Fixed some minor issues.
Date : 2018-03-08 00:00:00
- Version：[Application] RECentral: v4.1.0.12 Beta
- OS：Win 7 x64, Win 8.1 x64, Win 10 x64
- Description：1. Fixed a synchronous issue with audio and video.
2. Fixed an issue that installer might be frozen on some Win7 platforms.
3. Fixed an issue that clip feature didn't work after enabled face beauty feature.
4. Improve preview quality.
5. Improve stability.
6. Fixed some audio issues.
7. Support streaming to multiple CDNs at the same time.
8. Fixed minor issues
Date : 2017-07-25 00:00:00
- Version：v1.0.0.23
- OS： Win 7 x64, Win 8.1 x64, Win 10 x64
- Description：
•Add to show the OSD with new firmware version.
In order to make sure that firmware upgrade completes, please refer to https://www.avermedia.com/gaming/support_faq/live_gamer_hd_2#faq_part
Date : 2017-09-26 00:00:00
- Version：[Application] RECentral 3_v3.0.0.93 (Beta)
- OS：Win 7 x86, Win 7 x64, Win 8.1 x86, Win 8.1 x64, Win 10 x86, Win 10 x64
- Description：•Fix stream to FB issue.
Remark:
This version isn’t compatible with RECentral 4, so please remove RECentral 4 before the installation.
If you are facing the compatible issue, please try to remove RECentral 4 on control panel. It may show the installing steps when removing, please finish the installation and then it can be fully removed.
Date : 2017-08-08 00:00:00
- Version：[Application] RECentral 3_v3.0.0.88 (Beta special version)
- OS：Win7 x64, Win8.1 x64, Win 10 x64
- Description：Special version. Install ONLY if encounter one of below listed issues:
•Fixed "on some platforms receive Device is busy error"
•Fixed "on some platforms AP crashes due to file management page failure"
•Fix stream to FB issue
Date : 2017-07-18 00:00:00
- Version：[Driver] V1.0.x.13
- OS：Win 7 x86
- Description：•Fixed some compatibility issues.
Date : 2017-07-18 00:00:00
- Version：[Driver] V1.0.x.13
- OS：Win 7 x64
- Description：•Fixed some compatibility issues.
Date : 2017-07-18 00:00:00
- Version：[Application] RECentral 3_v3.0.0.79
- OS：Win 7 x86, Win 7 x64, Win 8.1 x86, Win 8.1 x64, Win 10 x86, Win 10 x64
- Description：•Fixed some compatibility issues.
Date : 2017-06-02 00:00:00
- Description： English, Polski, Deutsch, Türkçe, Español, Magyar, Français, Pусский, Italiano, Ελληνικά, Português, 한국어, Čeština, 繁體中文, Nederlands, 简体中文,
Date : 2017-06-15 00:00:00
- Version：[Application] RECentral 3_v3.0.0.78 (Beta)
- OS：Win 7 x86, Win 7 x64, Win 8.1 x86, Win 8.1 x64, Win 10 x86, Win 10 x64
- Description：1. Fixed Twitch crash issue.
2. Fixed YouTube couldn’t login.
3. Fixed some minor issues.
Date : 2017-05-09 00:00:00
- Version：[Driver] V1.0.X.10 (Beta)
- OS：Win 7 x64
- Description：•Minor bug fixes and other improvements.
Date : 2017-05-09 00:00:00
- Version：[Driver] V1.0.X.10 (Beta)
- OS：Win 7 x86
- Description：•Minor bug fixes and other improvements.
Date : 2017-05-09 00:00:00
- Version：[Application] RECentral 3_v3.0.0.69 (Beta)
- OS：Win 7 x86, Win 7 x64, Win 8.1 x86, Win 8.1 x64, Win 10 x86, Win 10 x64
- Description：•Support AVerMedia mic devices.
Date : 2017-03-17 00:00:00
- Version：[Application] RECentral 3_v3.0.0.65
- OS：Win 7 x86, Win 7 x64, Win 8.1 x86, Win 8.1 x64, Win 10 x86, Win 10 x64
- Description：•Minor bug fixes and other improvements.
Date : 2017-03-17 00:00:00
- Version：[Driver] V1.0.x.9
- OS：Win 7 x64
- Description：•Minor bug fixes and other improvements.
Date : 2017-03-17 00:00:00
- Version：[Driver] V1.0.x.9
- OS：Win 7 x86
- Description：•Minor bug fixes and other improvements.
Date : 2017-01-25 00:00:00
- Version：[Application] RECentral 3_v3.0.0.48
- OS：Win 7 x86, Win 7 x64, Win 8.1 x86, Win 8.1 x64, Win 10 x86, Win 10 x64
- Description：•For New Product “Live Gamer HD 2” (GC570)
Date : 2017-01-25 00:00:00
- Version：[Driver] V1.0.64.9
- OS：Win 7 x64
- Description：•For Windows 7 x64 USB Host Driver used
Date : 2017-01-25 00:00:00
- Version：[Driver] V1.0.0.9
- OS：Win 7 x86
- Description：•For Windows 7 x86 USB Host Driver used
AWARDS
HDR247
2018-05-14
Darktech-Reviews
2018-01-21
Darktech-Reviews
2018-01-21
PCM
2017-06-20
PCDIY
2017-06-06
Game IT
2017-04-15
XFastest
2017-04-07
