What are the supported passthrough and capture resolutions and frame rates for each color format on GC553G2/GC575?

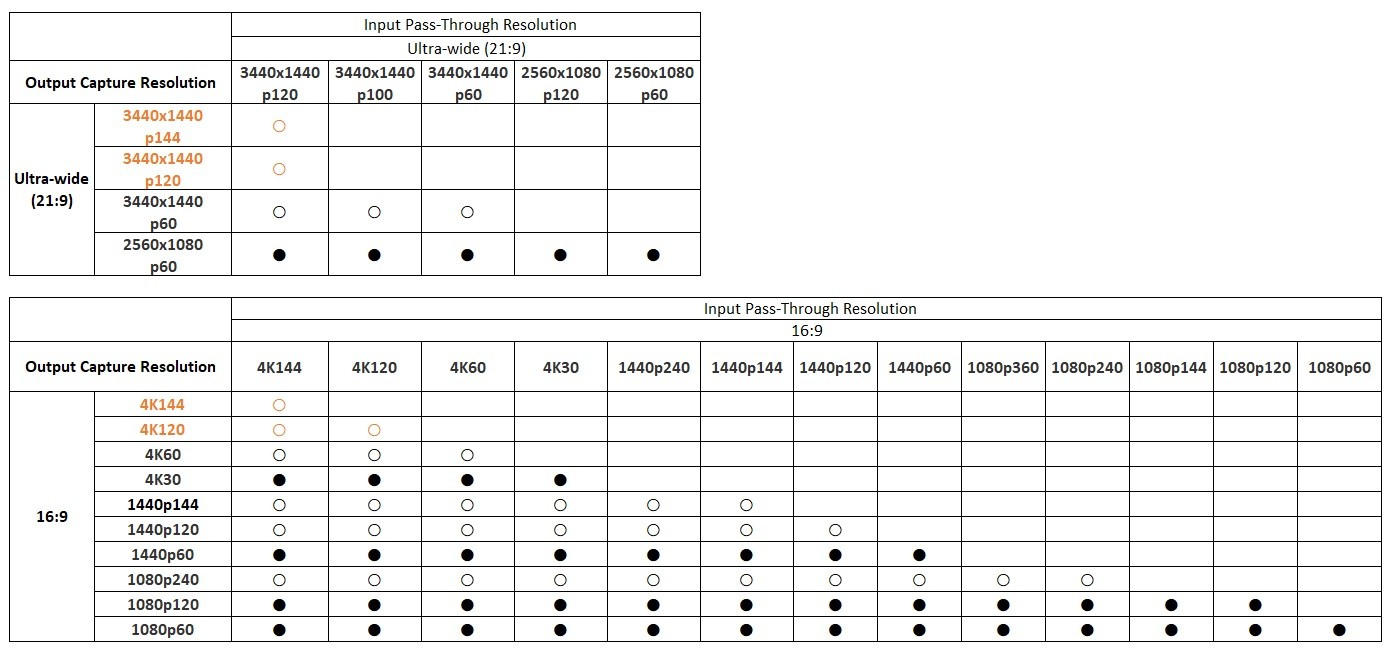

Please refer to the supported passthrough and capture resolutions below. For each input resolution, the supported capture resolution is shown as supported by GC553G2 & GC575.
Note: The following table information is only applicable to Windows systems.
○: Can be captured in SDR
●: Can be captured in SDR or HDR
Orange Color: New firmware uppdate only for GC553G2

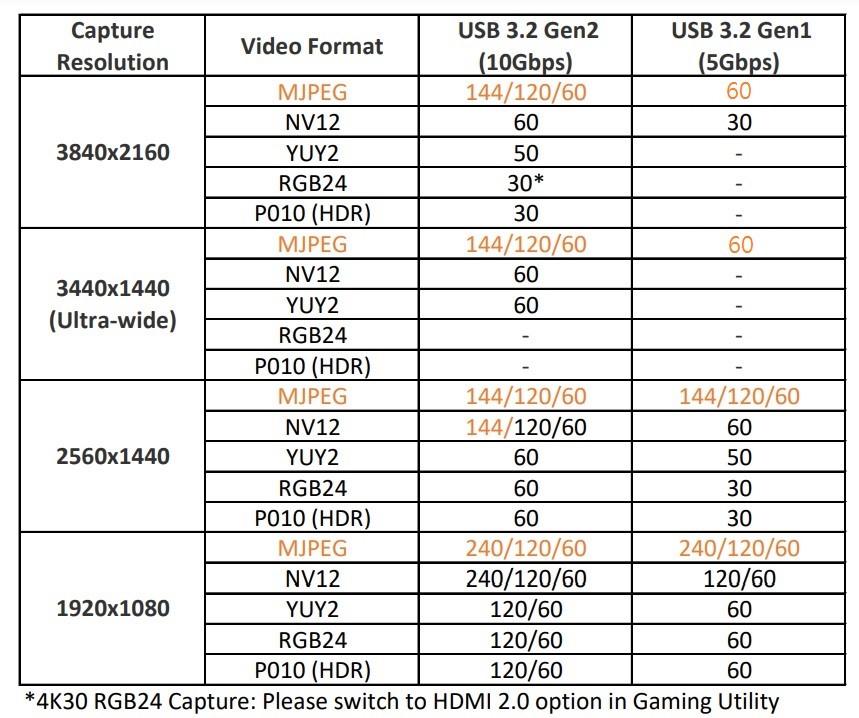

Capture Video Format Specifications
Please refer to the list below for resolutions and frame rates that can be captured in different video formats. The availability of these color formats changes depending on the type of USB port that GC553G2 is connected to (10Gbps, 5Gbps).
Orange Color: New firmware uppdate only for GC553G2
202405 amend for GC553G2
