D133OXB/D133ONB (5G)

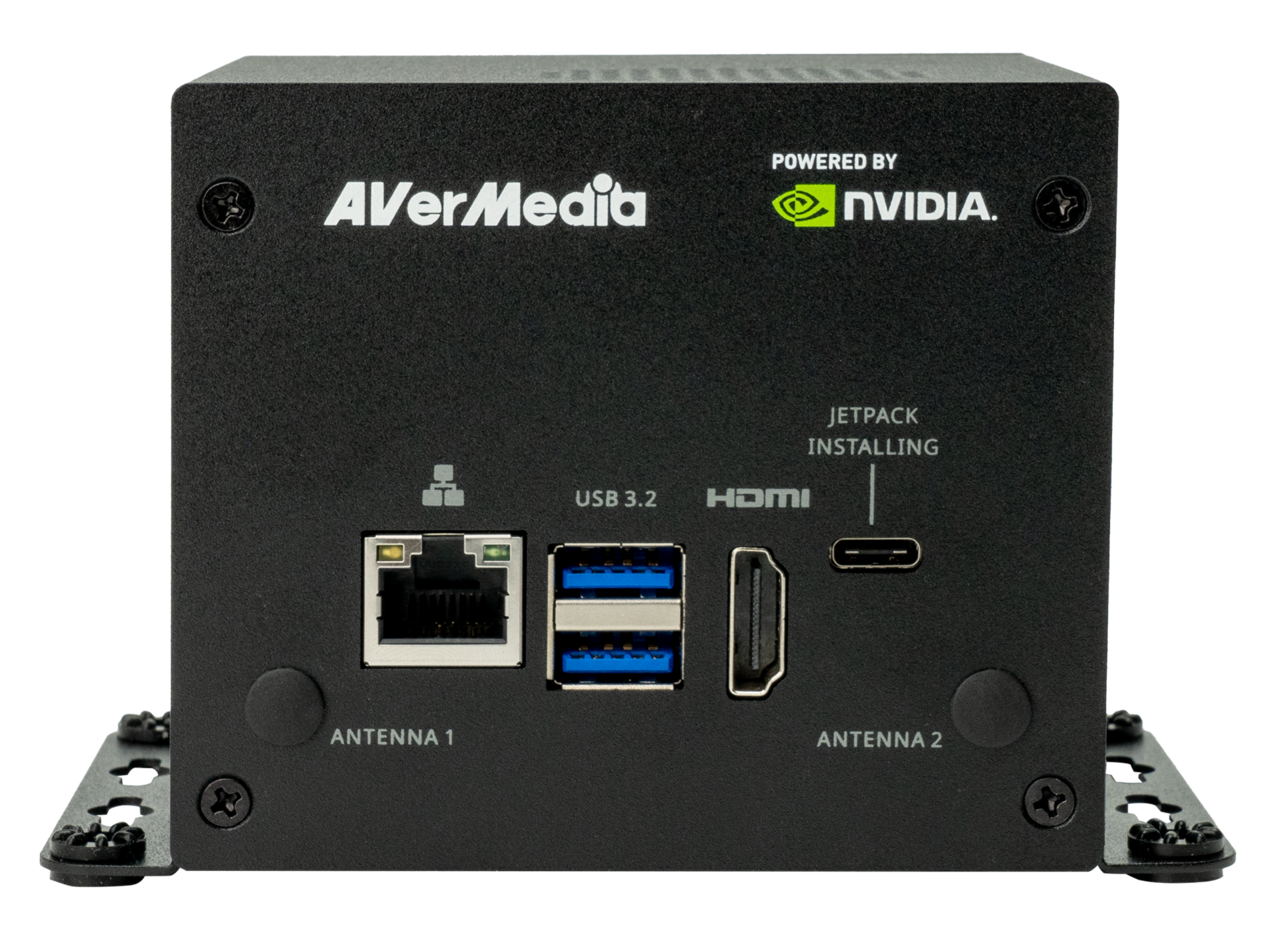

Standard Box PC D133OXB/D133ONB (5G) Equips NVIDIA® Jetson™ Orin NX/Orin Nano Module

Equips NVIDIA® Jetson Orin NX/ Orin Nano module
Supports Super Mode for Jetson Orin™ Nano
1 x GbE RJ-45
1 x OOB for Power cycling and Cloud serial console (Optional)
1 x 5G daughter board for 4G/5G/capture card functions (Optional)
2 x USB 3.2
2 x M.2 key for SSD/wifi

1 x HDMI output
20-pin expansion header
Operating temperature: -25°C ~ 60°C
Dimension: 93mm x 81.2mm x 81.9mm (3.66” x 3.19” x 3.22”)
Support Allxon 24/7 Edge AI device remote management with OOB disaster recovery solutions

Overview

AVerMedia’s D133OXB/D133ONB (5G) Box PC equips powerful NVIDIA® Jetson Orin NX/ Orin Nano modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities

D133OXB/D133ONB (5G)Box PC is designed for the industry applications with spatial concern and compact yet efficient for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart Camera

Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.

Specifications

Model	D133OXB-16G (5G)/D133OXB-8G (5G) D133ONB-8G (5G)/D133ONB-4G (5G)
Type	Box PC
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson Orin NX 16G or 8G / Orin Nano 8G or 4G module
Networking	1 x GbE RJ-45 1 x M.2. key E 2230 for wifi
Display Output	1 x HDMI output 3840 x 2160 at 60Hz for Orin NX, 30Hz for Orin Nano
Temperature	Operating temperature -25°C~60°C (TBD) Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs(Internal)	2 x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch
USB	1 x USB 2.0 type C for recovery 2 x USB 3.2 Type-A
Storage	1x M.2. key M 2280 for NVMe (256G SSD installed)
Expansion Header	20 pins: 2x I2C, 1x UART, 9x GPIOs 5 pins & 30 pins: support 4G/5G functions via daughter board (oprional, sold separately) 15 pins & 10 pins: supports OOB module (optional, sold separately)
Power Consumption	D133ONB : 14.4W to 25.4W D133OXB : 17.6W to 31.5W
Input Power	3.5mm Screw Terminal; 12V/5A, 9V~24V is recommended.
Power Cord	US/JP/EU/UK/TW/AU/CN
Thermal solution	Fan solution
Buttons	Power and Recovery
RTC Battery	Support RTC battery and Battery Life Monitoring by MCU
Dimension/Weight	93mm x 81.2mm x 81.9mm (3.66” x 3.19” x 3.22”) ,W/O mounting hole Weight: 500g (TBD)
Certifications	CE, FCC, KC(TBA)
Package	1x Box PC 12V power adapter/Power cord

Ordering Information

Model	SKU Number	NVIDIA SOM	SSD	OOB Module*	5G Daughter Board*
D133OXB	D133OXB-16G-001	Orin NX 16G	256G	-	-
D133OXB	D133OXB-8G-001	Orin NX 8G	256G	-	-
D133ONB	D133ONB-8G-001	Orin Nano 8G	256G	-	-
D133ONB	D133ONB-4G-001	Orin Nano 4G	256G	-	-
D133OXB 5G	D133OXB-16G-002	Orin NX 16G	256G	RMII Function (Eth)	-
D133OXB 5G	D133OXB-8G-002	Orin NX 8G	256G	RMII Function (Eth)	-
D133ONB 5G	D133ONB-8G-002	Orin Nano 8G	256G	RMII Function (Eth)	-
D133ONB 5G	D133ONB-4G-002	Orin Nano 4G	256G	RMII Function (Eth)	-
D133OXB 5G	D133OXB-16G-003	Orin NX 16G	256G	RMII Function (Eth)	4G Module
D133OXB 5G	D133OXB-8G-003	Orin NX 8G	256G	RMII Function (Eth)	4G Module
D133ONB 5G	D133ONB-8G-003	Orin Nano 8G	256G	RMII Function (Eth)	4G Module
D133ONB 5G	D133ONB-4G-003	Orin Nano 4G	256G	RMII Function (Eth)	4G Module
D133OXB 5G	D133OXB-16G-004	Orin NX 16G	256G	RMII Function (Eth)	5G Module
D133OXB 5G	D133OXB-8G-004	Orin NX 8G	256G	RMII Function (Eth)	5G Module
D133ONB 5G	D133ONB-8G-004	Orin Nano 8G	256G	RMII Function (Eth)	5G Module
D133ONB 5G	D133ONB-4G-004	Orin Nano 4G	256G	RMII Function (Eth)	5G Module
D133OXB 5G	D133OXB-16G-005	Orin NX 16G	256G	4G Module	-
D133OXB 5G	D133OXB-8G-005	Orin NX 8G	256G	4G Module	-
D133ONB 5G	D133ONB-8G-005	Orin Nano 8G	256G	4G Module	-
D133ONB 5G	D133ONB-4G-005	Orin Nano 4G	256G	4G Module	-

Optional Accessories

Optional Accessories	Specs
MIPI Camera	For 22 pin MIPI connector: 1. raspberry pi camera v2/ v3 2. Manufacturer: APPRO.PHO: B-04: IMX179 (8M) MIPI, 1080P (30fps)

*For more detailed specification of OOB module and 5G daughter board, please check the "Accessory" page.

**Please contact your local sales for more information. All specifications are subject to change without prior notice.

Orin Box PC


OS	Version	Compatible SOM	Release Note
L4T r36.4 (Jetpack 6.1)	D133_ORIN-R3.2.0.6.1.0 (Beta)	Orin NX 16G/8G Orin Nano 8G/4G	ReadMe


OS	Version	Compatible SOM	Release Note
L4T 36.3 (Jetpack 6.0)	D133_ORIN-R3.1.2.6.0.0 (BETA)	Orin NX 16G/8G Orin Nano 8G/4G	ReadMe


OS	Version	Compatible SOM	Release Note
L4T 36.3 (Jetpack 6.0)	D133_ORIN-R3.1.0.6.0.0 (BETA)	Orin NX 16G/8G Orin Nano 8G/4G	ReadMe
