The 5G daughter board supports 4G/5G modules and capture cards, providing flexible and efficient solutions for embedded systems and IoT applications.
It features M.2 slots to accommodate 4G/5G modules, enabling high-speed wireless connectivity. It also supports various interfaces, allowing for high-resolution image capture.
It's suited for smart city applications, supporting real-time data transmission and infrastructure monitoring; industrial automation, enabling robust machine-to-machine communication and real-time control; and remote surveillance, offering stable connections and high-definition video streaming. It meets modern demands for rapid connectivity and high-quality image processing.
Model | 5G Daughter Board | ||||||
---|---|---|---|---|---|---|---|
Applicable product | |||||||
I/O | 1 x M.2 Key. B for 4G/5G module 1 x M.2 Key. M for SSD/Capture card ( In practice, the SSD is installed on the daughter board, while the capture card is installed on the motherboard.) 1 x Micro SIM slot | ||||||
Power Input | 1 x 5pin wafer for 12V power from the motherboard | ||||||
Environment | Operating temperature -40°C ~ 85°C (TBD, The actual situation depends on the box PC spec. ) Storage temperature -40°C ~ 85°C | ||||||
Mechanical | 76.7 x 90mm | ||||||

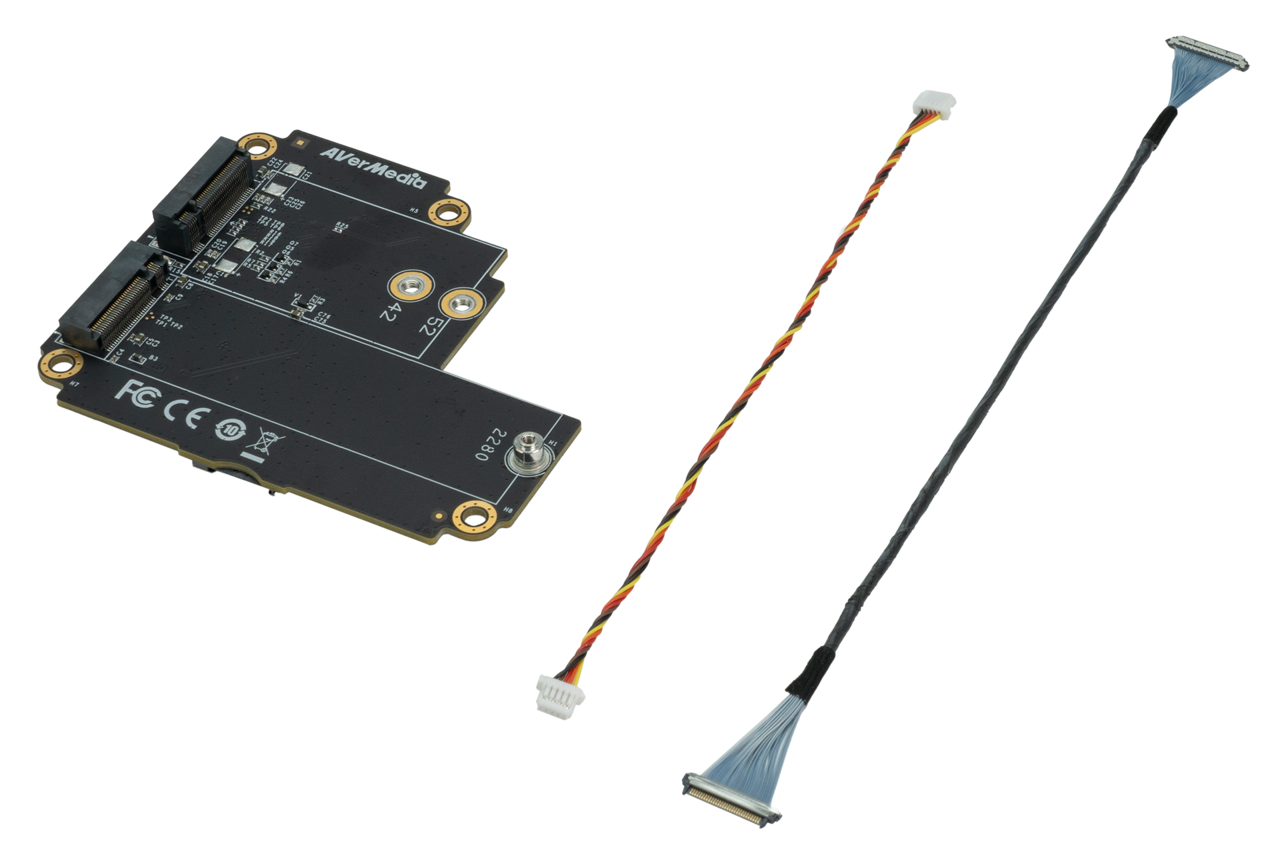

Package | Daughter Board Power cable Micro Coaxial connection cable Screws |
* All specifications are subject to change without prior notice.
