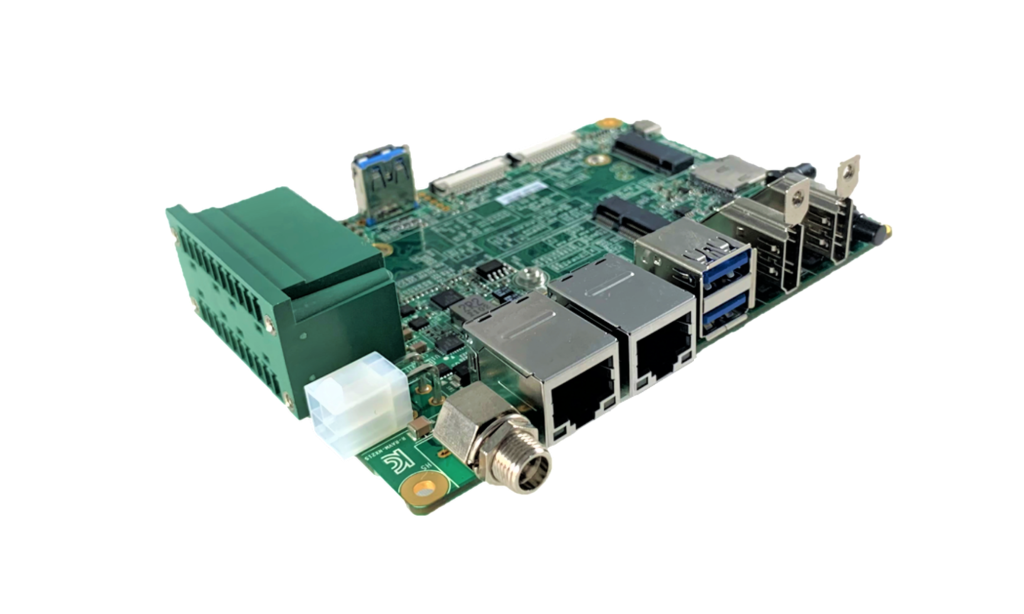

Standard Carrier Board NX215 for NVIDIA® Jetson Orin NX/Xavier™ NX/TX2 NX/Nano Module
AVerMedia’s NX215 Carrier board equips powerful NVIDIA® Jetson Orin NX/Xavier™ NX/TX2 NX/NANO modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.
NX215 is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.
AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
Gather and deliver the information to streamline decisions and create more value for the customer.
Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.
Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations for a variety of services.
Model | NX215 |
|---|---|
Type | Carrier Board |
NVIDIA GPU SoC Module Compatibility | NVIDIA® Jetson Orin NX/Xavier™ NX/ TX2 NX/ Nano module |
Networking | 2x GbE RJ-45 1xM.2. key E 2230 for wifi (Nano doesn’t support) |
Display Output | 2x HDMI 2.0 (3840 x 2160 at 60Hz) (Orin NX/ NANO supports 1x HDMI 2.0 ) |
Temperature* | Operating temperature 0°C~70°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing |
MIPI Camera Inputs | •2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector •1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector (not for Orin NX) |
USB | 1x USB 2.0 Micro-B for recovery 3x USB 3.0 Type-A |
Storage | 1x micro-SD card slot (not for Orin NX) 1xM.2. key M 2280 for NVMe |
Expansion Header (Internal) | 20 pins: 2x I2C, 1x UART, 4x GPIOs, 1xCAN (EU terminal block) (Nano: 0xCAN) |
Input Power | DCINJACK on board & ATX 4pin 12V/5A, 12V~24V is recommended. |
Power Cord | US/JP/EU/UK/TW/CN/AU |
Fan Module | Heat sink with fan (optional) |
Buttons | Power and Recovery |
RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
PCB/Electronics Mechanical Info | 120mm (W) x 90mm (L) x 26.5mm (H) Weight: 125 g |
Certifications | CE, FCC,KC |
Optional Accessories | Specs |
|---|---|
MIPI Camera | For 15 pin MIPI connector: 1.raspberry pi camera v2 2.Manufacturer: APPRO.PHO
For 36 pin MIPI connector: (not for Orin NX) 1.Manufacturer: APPRO.PHO
|
* Temperature is still under testing. Please contact your local sales for more information.
** All specifications are subject to change without prior notice.
