Standard Carrier Board for NVIDIA® Jetson™ Nano (Version B01)/TX2 NX/Xavier NX Module

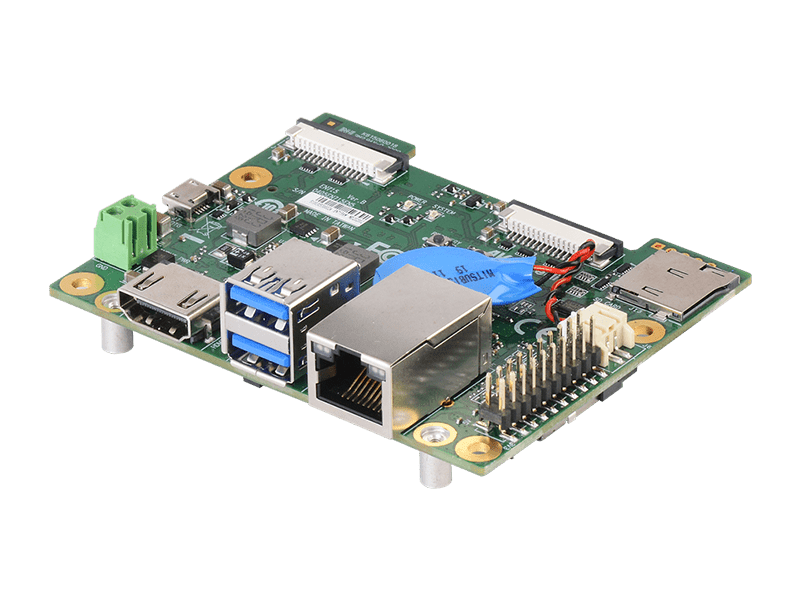

AVerMedia carrier board EN715 is designed for NVIDIA® Jetson Nano™ (Version B01)/ TX2 NX/ Xavier™ NX module and for the industry applications in the environment with the high physical space concern and operation in the temperature range from 0°C to 70°C. It features the very compact dimensions of 70.6mm (L) x 87mm (W) x 27.3mm (H), with four Ø 3.2 mounting holes for the highly reliable field installation.
EN715 can provide the access to a list of rich I/O functions, which includes 2x 2 Lane MIPI CSI-2, 1x 4 Lane MIPI CSI-2 Camera Input, 1x 4Kp60 HDMI output, 2x USB 3.0, 1x GbE RJ-45, 20-pins GPIO expansion, 1x Micro SD card slot, and 1x Micro-B USB 2.0 for recovery. It also comes with a single-mold PCB terminal block module for the easy power connection.
With the compact dimensions, design for reliable field installation, and the rich I/O functions, EN715 is the best cost-effective choice for AIoT edge computing in the intelligent video analytics applications of Smart Retail, Smart Camera, Smart Medical and Smart City.
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
Gather and deliver the information to streamline decisions and create more value for the customer.
Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.
Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.
Model | EN715 |
|---|---|
Type | Carrier Board |
NVIDIA GPU SoC Module Compatibility | NVIDIA® Jetson Nano™ (Version B01)/TX2 NX/Xavier™ NX module |
Networking | 1x GbE RJ-45 |
Display Output | 3840 x 2160 at 60Hz |
Temperature | Operating temperature 0°C~70°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing |
MIPI Camera Inputs | • 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector • 1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector |
USB | 1x USB 2.0 Micro-B for recovery 2x USB 3.0 Type-A |
Storage | 1x micro-SD card slot |
Expansion Header | 20 pins: 2x I2C, 1x UART, 9x GPIOs |
Input Power | 3.5mm Screw Terminal; 9V~19V is recommended. |
Buttons | Power and Recovery |
RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
PCB/Electronics Mechanical Info | W: 87mm x L: 70.6mm x H: 27.3mm (3.43” x 2.78” x 1.07”) Weight: 70g |
Certifications | CE, FCC, KC |
Optional Accessories | Specs |
|---|---|
NVIDIA® Jetson Series | NVIDIA® Jetson Nano™ (Version B01)/TX2 NX/Xavier™ NX module |
Power Adaptor | 12V/5A |
Power Cord | US/JP/EU/UK/TW/AU/CN |
Fan Module | Heat sink with fan |
MIPI Camera | For 15 pin MIPI connector: 1.raspberry pi camera v2 2.Manufacturer: APPRO.PHO
B-04: IMX179 (8M) MIPI, 1080P (30fps) C-04: IMX290 (2M) MIPI, 1080P (30fps) C-05: IMX290 (2M) +ISP (YUV), 1080P (30fps)
For 36 pin MIPI connector: 1.Manufacturer: APPRO.PHO B-03: IMX334 (4K) MIPI, 4K (30fps) A-06: IMX334 (4K) V-by-One® HS x1, 4K (30fps) |
*All specifications are subject to change without prior notice.
Date : 2024-09-09 00:00:00
| OS | Version | Release Note |
| L4T 35.5.0 (Jetpack 5.1.3) | EN715-NX-R2.4.3.5.1.3 | ReadMe |
Date : 2024-06-13 00:00:00
*For UK customers:
Please do not download from the official website.
Contact our EU sales team (bentley.lo@avermedia.com) for assistance.
Date : 2023-09-18 00:00:00
| OS | Version | Release Note |
| L4T 35.4.1 (Jetpack 5.1.2) | EN715-NX-R2.3.0.5.1.2 (BETA) | ReadMe |
Date : 2023-07-06 00:00:00
| OS | Version | Release Note |
| L4T 32.7.1(Jetpack 4.6) | NX211B-R1.0.22.4.6 (BETA) | ReadMe |
Date : 2023-07-06 00:00:00
| OS | Version | Release Note |
| L4T 32.7.3(Jetpack 4.6.3) | NX211B-R1.1.0.4.6.3 (BETA) | ReadMe |
