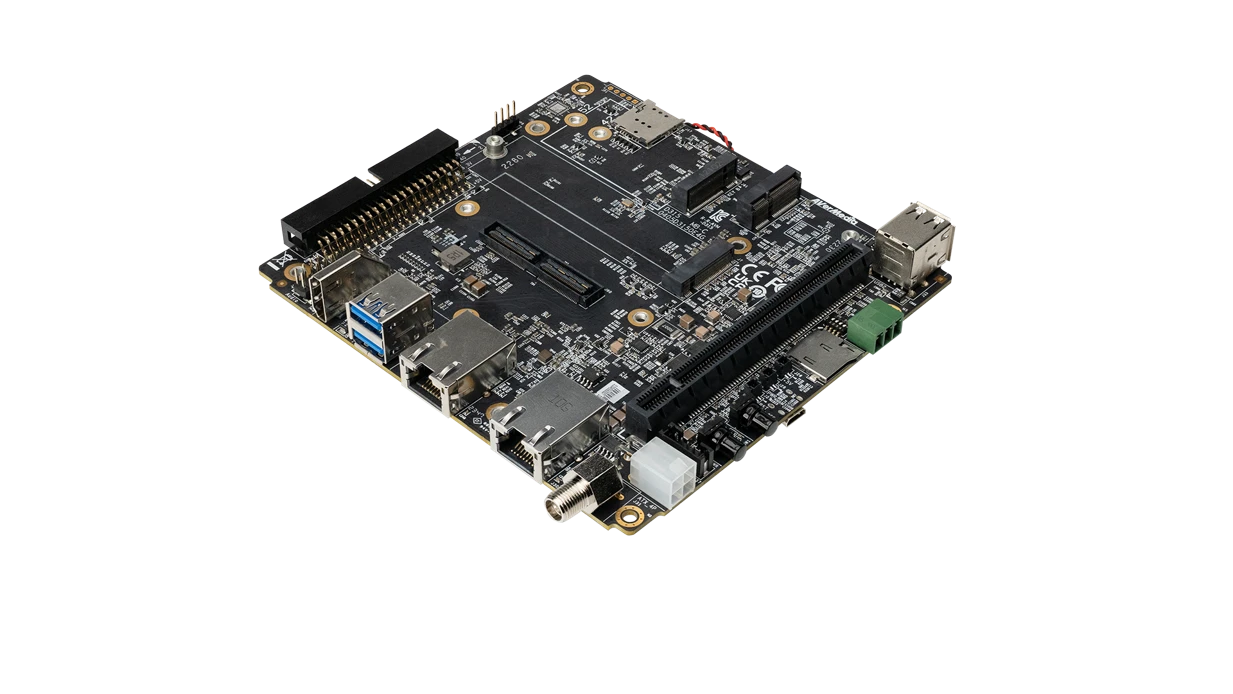

D315 5G

Applies NVIDIA® Jetson AGX Orin & AGX Orin Industrial module

1x M.2 B key for 4G & 5G, 1x M.2 E key for Wi-Fi 6E and
1x M.2 M key for SSD and capture
120-pin highspeed connector for MIPI SerDes cameras, such as GMSL2/FPD-link III/V-by-One® HS, to deploy in AMRs application
1x GbE & 1x 10G RJ-45 ethernet for dozens of IP cameras streaming simultaneously in smart security application
10GigE Vision camera connector for smart inspectionand 1x PCIe slot for multi-function expansion
Operating temperature: -40°C ~ 85°C
Dimension: 141.5mm(W) x 133.5mm(L) x 29mm(H)

Overview

AVerMedia Carrier Board D315 5G support NVIDIA® Jetson AGX Orin & AGX Orin Industrial , which brings next-level AI performance and power-efficient capability for all autonomous machines. This optional SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.

D315 5G includes a 120-pin high-speed connector for connecting MIPI SerDes cameras, which can fulfill the demand for AMRs. In addition, a sufficient Ethernet bandwidth with 10G is excellent for applying smart security, enabling dozens of IP cameras to stream simultaneously. The connector for the 10GigE Vision Camera is also great for smart inspection. Lastly, with its compact size, D315 5G furnishes a PCIe slot for multi-function expansion and excellent compatibility with 5G and Wi-Fi 6.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

AMRs

AMRs deployment relies on live camera feeds to provide a rapid and flexible adjustment for the working process and creates a significant productivity growth.

Smart Security

Smart security relies on live camera feeds to benefit from the video analysis to improve and ensure community safety.

Smart Inspection

Smart inspection relies on live camera feeds to benefit from fast and accurate detection to improve quality control in production.

Specifications

Model	D315 5G
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson AGX Orin & AGX Orin Industrial module
Networking	1x GbE RJ-45 1x 10G RJ-45
Display Output	1x HDMI output
Temperature	•Operating temperature -40°C~85°C •Storage temperature -40°C ~ 85°C •Relative humidity 40 °C @ 95%, Non-Condensing
MIPI & SerDes Camera (120-pin)	GMSL2/FPD-link III/V-by-One® HS (STURDeCAM20 optional)
USB	•1x USB 2.0 Micro-B for recovery •2x USB 2.0 Type-A •2x USB 3.2 Type-A
Storage	1x micro-SD card slot
Expansion Header	•40-pin (UART, SPI, CAN, I2C, I2S, GPIOs ) •1x M.2 B key (for 4G LTE module or 5G module) •1x M.2 E key (for Wi-Fi 6E) •1x M.2 M key (for SSD or AVerMedia capture card: CN311-H, CN312SW, CN312MW) •1x Micro SIM socket •1x PCIe x16 (only support x8 PCIe lanes) •1x CAN bus with transceiver •120-pin (for MIPI SerDes) •OOB support
Power requirement	Voltage: DC 12V~54V Current: DC in JACK on board: 7A Max ATX 4pin: 10.8A Max
Power Cord	US/JP/EU/UK/TW/AU/CN
Fan Module	Heat sink with fan (optional)
Buttons	Power and Recovery
RTC Battery	Support RTC battery and battery life monitoring by MCU
PCB/Electronics Mechanical Info	141.5mm (W) x 133.5mm (L) x 29mm (H) Weight: 189g
Certifications	CE, FCC, KC

Ordering Information

Model	SKU Number	Support NVIDIA SOM	Support 4G/5G
D315	D315-001	AGX Orin 32G / 64G	-
D315 (5G)	D315-002	AGX Orin 32G / 64G / Industrial	YES

Optional Accessories

Wi-Fi Module	M.2 E key 2230	Intel® Wireless-AC 9260、Intel® Wi-Fi 6E AX210
SSD	M.2 M key 2280	256GB
Capture Card	M.2 M key 2280	CN312MW	1x SDI; 1x HDMI	2Kp60 in (SDI), 1920 x 1200p60 in (HDMI), 1080p out
	M.2 M key 2280	CN312SW	2x SDI	2Kp60 in - 1080p out
	M.2 M key 2280	CN311-H	1x HDMI	4096 x 2160p30 in and out
4G LTE Cat4	M.2 B key 3042	Quectel EM05-G
5G	M.2 B key 3052	Quectel RM520N-GL

Orin Carrier Board


OS	Version	Release Note
L4T r36.4 (Jetpack 6.1)	D315AO-R3.2.0.6.1.0 (beta)	ReadMe


OS	Version	Release Note
L4T 35.4.1 (Jetpack 6.0)	D315AO-R3.1.3.6.0.0	ReadMe


OS	Version	Release Note
L4T 35.4.1 (Jetpack 5.1.3)	D315AO-R2.5.2.5.1.3	ReadMe
