D135

[Preliminary]

NVIDIA® Jetson Orin NX/Orin Nano module

IP65/67 Vehicle System

IP65/67 BOX PC
Dual Fan & Fanless Product type
Either 8x GMSL2 (Z-code) or 4x M12 (X-Code) PoE 802.3af
2x M12 X-Code for GbE with PoE 802.3af
1x M12 A-Code (Isolated CAN BUS 2.0 Port With Transceiver, 2 port)
2x M20 USB 3.0(Type A)
1x M12 A-Code 12pin (4x GPI & 2x GPO & 1x RS485)
1x M12 B-Code 5pin Power Input
Operating Temperature: -40~80°C (base on SKU)
Optional RF: 5x connectors FAKRA for WIFI 6/4G/5G/GPS
Optional IP67/69K Camera: oToBrite 2.5M camera series,
e-con Systems camera series
Optional: Support Allxon 24/7 Edge AI device remote management with OOB disaster recovery solutions

Overview

AVerMedia’s AI Box PC D135 equips powerful NVIDIA® Jetson Orin NX/Orin Nano module. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.

D135 BOX PC is designed for the IP65/IP67 Vehicle System applications and feature a rich assortment of waterproof I/O ports for rapid AI-based solution development and seamless deployment as required by demanding vehicle applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others’ Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

AMRs

AMRs deployment relies on live camera feeds to provide a rapid and flexible adjustment for the working process and creates a significant productivity growth.

Smart Security

Smart security relies on live camera feeds to benefit from the video analysis to improve and ensure community safety.

Smart Inspection

Smart inspection relies on live camera feeds to benefit from fast and accurate detection to improve quality control in production.

Specifications

Model	D135OXD、D135OXB、D135OND、D135ONB
Type	IP65/67 Box PC
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson Orin NX/Orin Nano
Indication	2x Single LED
External I/O (waterproof)	Either 8 x GMSL2 (FAKRA SMB Plug Z-code) or 4 x PoE (M12 X-Code 8pin, with PoE 802.3af) 2 x M12 X-Code for GbE with PoE 802.3af 1x M12 A-Code (Isolated CAN BUS 2.0 Port With Transceiver, 2 port) 2x M20 USB 3.0(Type A) 1x GPIO / RS485 (M12 A-Code 12pin, 4x GPI & 2x GPO & 1x RS485) 1x M12 B-Code 5pin Power Input 5x ANT (2 for 4G/5G, 2 for Wi-Fi, 1 for GNSS)
Internal Slot	1x M.2 M key 2280 (256 GB NVMe SSD pre-installed) ( *The SSD capacity for the 6x POE SKU is limited to a maximum of 2TB) 1x M.2 E key 2230 (Wi-Fi, optional) 1x M.2 B key 3042(4G) LTE module or 3052(5G) module (optional) 1x mPCIe slot (optional for GNSS or GNSS RTK module)
Repair Area with an Access Panel with O ring for waterproof	1x Recovery mode push button 1x DIP switch for CAN terminal selection 1x USB 3.1 Type-A port 1x GbE RJ45 port 1x HDMI type A port (4Kp60) 1x USB-C (BSP flash) 1x USB-C UART port (Debug) 2x Nano SIM card slot (4G/LTE/5G)
Misc (Optional)	Accelerometer , IMU 6-Axis motion tracking
OOB (Optional)	Allxon OOB
Super Capacitor	Super Capacitor (250W/sec, TBC)
Operating Temperature	-40°C~80°C (base on SKU)
Storage temperature	-40°C ~ 85°C
Relative humidity	40 °C @ 95%, Non-Condensing
Power requirement	DC Input Range 9-36V DC input with Power Ignition Controller
RTC Battery	Support RTC battery and Battery Life Monitoring by MCU
Verification	MIL-STD-810H for shock & vibration (TBC)
Mechanical Info	W: 300mm * L: 153mm* H: 103mm Weight: 4.9Kg
Certifications	CE, FCC, KC (TBC)

Ordering Information (Preliminary)

Model	SKU Number	Fan	NVIDIA SOM	SSD	GMSL2 / POE	IP rate	Wi-Fi	4G/5G	OOB	Operating Temperature (TBD)
D135	D135OXD-16G-002	2	Orin NX 16G	256 GB	8x GMSL2 + 2x POE	IP65	W/O	W/O	Optional	-40~80°C
D135	D135OXB-16G-004	-	Orin NX 16G	256 GB	8x GMSL2 + 2x POE	IP65	W/O	W/O	Optional	-40~70°C
D135	D135OXD-16G-006	2	Orin NX 16G	256 GB	6x POE	IP65	W/O	W/O	Optional	-40~65°C
D135	D135OXB-16G-008	-	Orin NX 16G	256 GB	6x POE	IP65	W/O	W/O	Optional	-40~50°C
D135	D135OND-8G-010	2	Orin Nano 8G	256 GB	8x GMSL2 + 2x POE	IP65	W/O	W/O	Optional	-40~80°C
D135	D135ONB-8G-012	-	Orin Nano 8G	256 GB	8x GMSL2 + 2x POE	IP65	W/O	W/O	Optional	-40~65°C
D135	D135OND-8G-014	2	Orin Nano 8G	256 GB	6x POE	IP65	W/O	W/O	Optional	-40~65°C
D135	D135ONB-8G-016	-	Orin Nano 8G	256 GB	6x POE	IP65	W/O	W/O	Optional	-40~50°C

Optional Accessories

IP67/69K Camera	GMSL2	oToBrite: oToCAM222-H61M、oToCAM222-C120M、oToCAM222-S195M、 oToCAM223-H61M、oToCAM223-C120M、oToCAM223-S195M
IP67/69K Camera	GMSL2	e-con Systems: STURDeCAM31、STURDeCAM21、STURDeCAM20、NileCAM81、NileCAM21、NileCAM20
Wi-Fi Module	M.2 E key 2230	Intel® Wi-Fi 6E AX210
4G LTE Cat4	M.2 B key 3042	Quectel EM05-G
5G	M.2 B key 3052	Quectel RM520N-GL

Orin Box PC

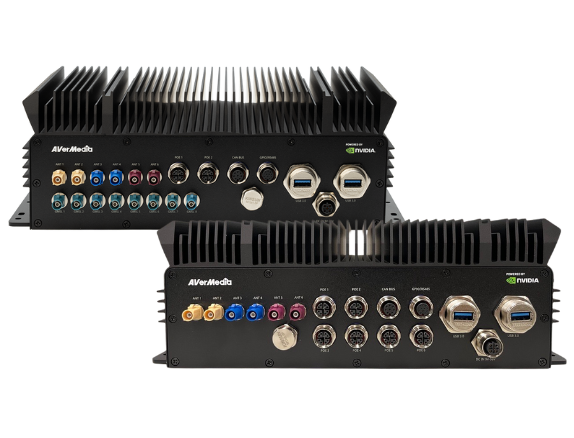

Box PC - D135 (Orin NX/Orin Nano, Fanless/Fan)
