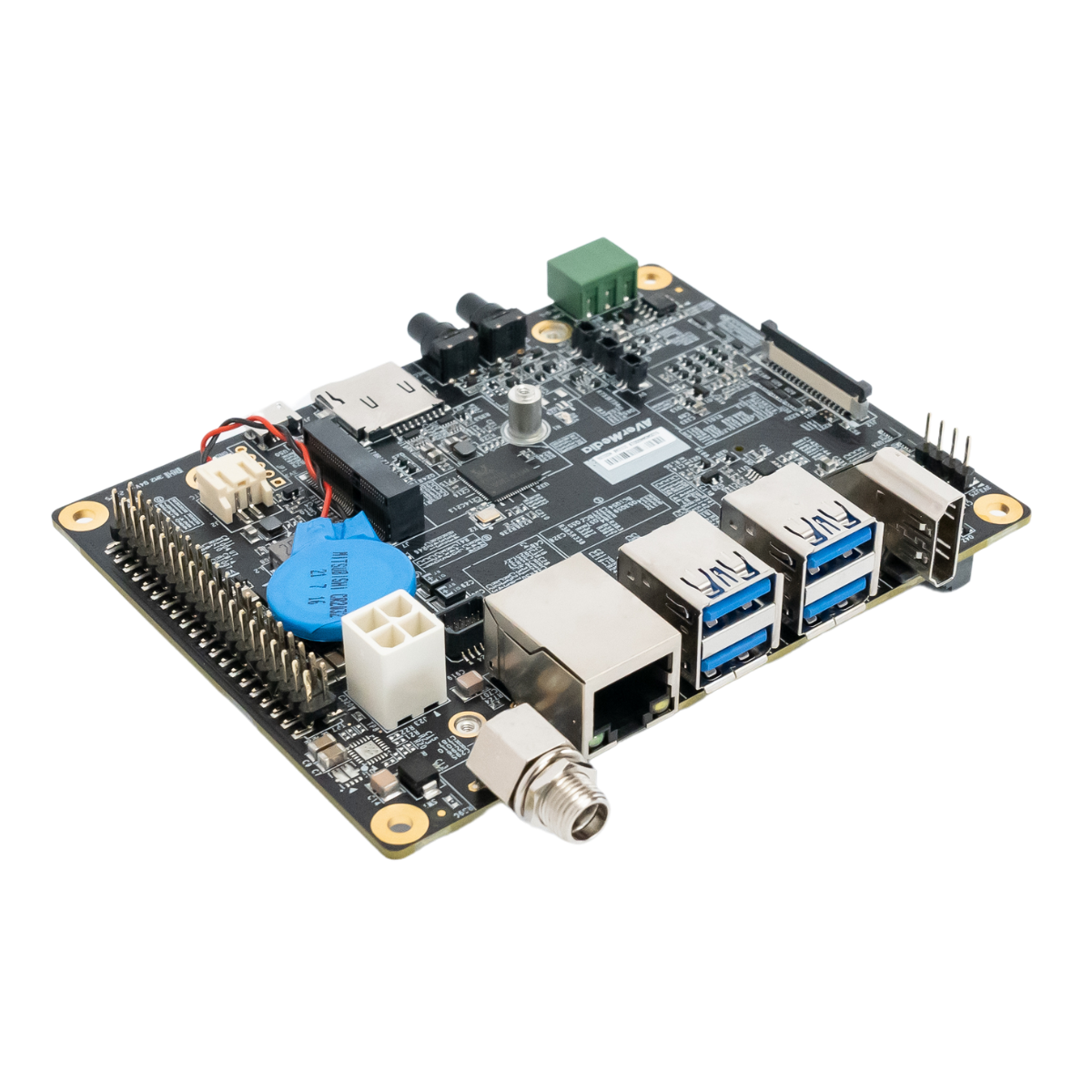

Standard Carrier Board D131 for NVIDIA® Jetson Orin™ NX/ Jetson Xavier™ NX/Jetson Nano™ Module

2 x 2 Lane MIPI CSI-2 Camera input/ 1 x 4 Lane MIPI CSI-2 Camera Input
2 x M.2. for Wi-Fi, SSD and Capture card
1 x GbE RJ-45 (Option PoE), 40-pin expansion header
4 x USB3.2 Gen1 (5G) type A and 1 x 4Kp60 HDMI output
1 x micro-SD card slot
Operating temperature: 0°C ~ 70°C (TBD)
Dimension: 113mm(W) x 105mm(L) x 28.53 mm(H)
Weight: 95g

Overview

AVerMedia’s D131 Carrier board equips powerful NVIDIA® Jetson Orin NX/ Jetson Xavier™ NX/ Jetson Nano modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.

AVerAI D131 is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

AMRs

AMRs deployment relies on live camera feeds to provide a rapid and flexible adjustment for the working process and creates a significant productivity growth.

Smart Security

Smart security relies on live camera feeds to benefit from the video analysis to improve and ensure community safety.

Smart Inspection

Smart inspection relies on live camera feeds to benefit from fast and accurate detetion to improve quality control in production.

Specifications

Model	D131
Type	Carrier Board
NVIDIA Jetson SoM	Jetson Orin NX/ Xavier™ NX/ Nano module
Networking	1x GbE RJ-45 (PoE option) 1xM.2. key E 2230 for wifi (Nano doesn’t support)
Display Output	1x HDMI 2.0 (3840 x 2160 at 60Hz)
Temperature	Operating temperature 0°C~70°C (TBD) Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs	•2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector •1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector
USB	1x USB 2.0 Micro-B for recovery 4x USB 3.2 Gen1 (5G) type A
Storage	1x M.2. key M 2280 for SSD 1x micro-SD card slot (Orin NX doesn't support)
Expansion Header	40-pin: 1x UART, 2x SPI, 2x 12C, 1x I2S, GPIOs
Input Power	DC IN JACK on board & ATX 4pin 12V/5A, 9V~24V is recommended.
Power Cord	US/JP/EU/UK/TW/CN/AU
hermal Solution	Fan (optional)
Buttons	Power and Recovery
RTC Battery	Support RTC battery and Battery Life Monitoring by MCU
Dimensions	113mm (W) x 105mm (L) x 28.53mm (H) Weight: 95 g
Certifications	CE, FCC,KC

Optional Accessories	Specs
MIPI Camera	For 15 pin MIPI connector: 1. raspberry pi camera v2 2. Manufacturer: APPRO.PHO B-04: IMX179 (8M) MIPI, 1080P (30fps) C-04: IMX290 (2M) MIPI, 1080P (30fps) C-05: IMX290 (2M) +ISP (YUV), 1080P (30fps) 3. Manufacturer: e-con Systems e-CAM131_CUNX - 4K Camera e-CAM50_CUNX - 5.0 MP e-CAM24_CUNX - Color Global shutter Camera For 36 pin MIPI connector: 1.Manufacturer: APPRO.PHO B-03: IMX334 (4K) MIPI, 4K (30fps) A-06: IMX334 (4K) V-by-One® HS x1, 4K (30fps)

Optional Accessories

Specs

MIPI Camera

For 15 pin MIPI connector:

1. raspberry pi camera v2

2. Manufacturer: APPRO.PHO

B-04: IMX179 (8M) MIPI, 1080P (30fps)
C-04: IMX290 (2M) MIPI, 1080P (30fps)
C-05: IMX290 (2M) +ISP (YUV), 1080P (30fps)

3. Manufacturer: e-con Systems

e-CAM131_CUNX - 4K Camera
e-CAM50_CUNX - 5.0 MP
e-CAM24_CUNX - Color Global shutter Camera

For 36 pin MIPI connector:

1.Manufacturer: APPRO.PHO

B-03: IMX334 (4K) MIPI, 4K (30fps)
A-06: IMX334 (4K) V-by-One® HS x1, 4K (30fps)

** All specifications are subject to change without prior notice.

Carrier Board - D131
