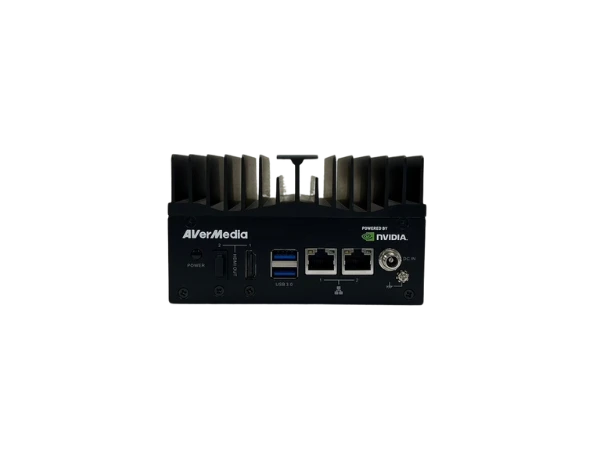

AI Box PC D115OXB/D115ONB Equips NVIDIA® Jetson™ Orin NX/Orin Nano Module
Embedded NVIDIA® Jetson Orin NX/Orin Nano module
2x GbE, 3x USB 3.0, 1x HDMI output
20 pins: 2x I2C, 1x UART, 4x GPIOs, 1x CAN (EU terminal block)
2x M.2 for Wi-Fi and SSD
Operating temperature: 0°C ~ 60°C
Dimension: W: 126mm x L: 96mm x H: 74mm
*Please contact your local sales for more information.
AVerMedia’s D115OXB/D115ONB is the next generation of AI Box PC that is designed with the NVIDIA® Jetson Orin NX/Orin Nano module. Suited for situations with spatial concerns, this high inference AI Box comes in at a compact 126mm (W) x 96mm (L) x 74mm (H) housing. And with a fanless design, the thermally optimized housing is capable of operating at 0 ~ 60°C while running virtually silently. Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others’ Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.
We understand that every situation has a set of unique requirements, and this is the reason the D115OXB/D115ONB is designed with a rich assortment of I/O ports. From 2x 2 Lane MIPI CSI-2 Input (internal), to 1x HDMI output, and 2x GbE RJ-45, you can rest assured that the D115OXB/D115ONB carries key I/O ports required for your unique application. And if you require additional customizations, our customer-dedicated team will be happy to support you with rapid deployment.
Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others’ Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
Gather and deliver the information to streamline decisions and create more value for the customer.
Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.
Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.
Model | D115OXB-8G/ D115OXB-16G D115ONB-4G/D115ONB-8G |
|---|---|
Type | Box PC |
NVIDIA GPU SoC Module Compatibility | NVIDIA® Jetson Orin NX module (8GB / 16GB) Orin Nano (4G/8G) |
Networking | 2x GbE RJ-45 1x M.2. key E 2230 for Wi-Fi |
Display Output | 1x HDMI 4Kp60 for Orin NX/ 4Kp30 for Orin Nano |
Temperature | Operating temperature 0°C~60°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing |
MIPI Camera Inputs | 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector |
USB | 1x USB 2.0 Micro-B for recovery 3x USB 3.0 Type-A (1x internal) |
Storage | 1x M.2. key M 2280 for NVMe (256G SSD installed) |
Expansion Header (Internal) | 20 pins: 2x I2C, 1x UART, 4x GPIOs, 1x CAN with transceiver (EU terminal block) |
Input Power | DC in Jack on board & ATX 4pin 12V/5A, 12V~24V is recommended. |
Power Cord | US/JP/EU/UK/TW/CN/AU |
Fan Module | Fanless Solution |
Buttons | Power and Recovery |
RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
PCB/Electronics Mechanical Info | W: 126mm x L: 96mm x H: 74mm (4.96” x 3.80” x 2.91”) Weight: 1kg |
Certifications | CE, FCC, KC |
Package | 1x D115OXB/D115ONB (256G SSD installed) 1x Adapter and Power cable |
Optional Accessories | Specs |
|---|---|
MIPI Camera | For 15 pin MIPI connector: raspberry pi camera v2 raspberry pi camera v3 Manufacturer: APPRO.PHO B-04: IMX179 (8M) MIPI, 1080P (30fps) C-04: IMX290 (2M) MIPI, 1080P (30fps) C-05: IMX290 (2M) +ISP (YUV), 1080P (30fps)
|
*Please contact your local sales for more information. All specifications are subject to change without prior notice.
Date : 2024-06-13 00:00:00
Date : 2024-05-28 00:00:00
| OS | Version | Compatible SOM | Release Note |
| L4T 36.3 (Jetpack 6.0) | D115_ORIN-R3.1.0.6.0.0 (BETA) | Orin NX 16G/8G Orin Nano 8G/4G | ReadMe |
Date : 2024-05-06 00:00:00
| OS | Version | Compatible SOM | Release Note |
| L4T 35.5.0 (Jetpack 5.1.3) | D115_ORIN-R2.4.1.5.1.3 (BETA) | Orin NX 16G/8G Orin Nano 8G/4G | ReadMe |
Date : 2023-09-18 00:00:00
| OS | Version | Release Note |
| L4T 35.4.1 (Jetpack 5.1.2) | D115ON-R2.1.1.5.1.2 (BETA) | ReadMe |
Date : 2023-09-18 00:00:00
| OS | Version | Release Note |
| L4T 35.4.1 (Jetpack 5.1.2) | D115OX-R2.3.1.5.1.2 (BETA) | ReadMe |
Date : 2023-07-06 00:00:00
| OS | Version | Release Note |
| L4T 35.3.1 (Jetpack 5.1.1) | D115OX-BSP-R2.2.1.5.1.1 (BETA) | ReadMe |
Date : 2023-07-06 00:00:00
| OS | Version | Release Note |
| L4T 35.2.1 (Jetpack 5.1) | D115OX-BSP-R2.1.2.5.1 (BETA) | ReadMe |
