Frame_Grabbers_USB - C039P

C039P

EZMaker USB SDK

Image/Video Capturing
Take Snapshots in BMP or JPG
Capture Serial Fields in BMP, JPG or AVI
Supports NTSC and PAL
Various Programming Languages Supported

Overview

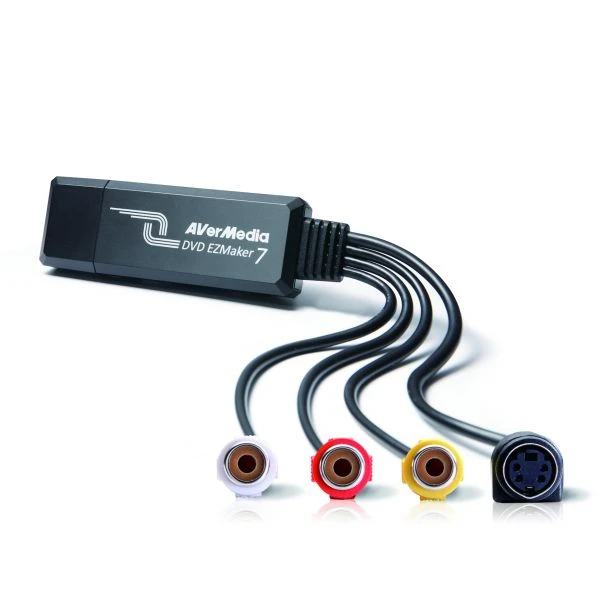

The AVerMedia EZMaker USB SDK is a USB video capture device with both S-Video and composite inputs. The accompanying software development kit provides frequently used functions to help developers and system integrators complete their tasks easily and efficiently. Even better, it is also compatible with major programming languages such as Visual C++ and Visual Basic.

Digitize Analog Video Effortlessly

The AVerMedia EZMaker USB SDK allows you to capture true color video sources and images from any type of analog video equipment through S-Video/composite video inputs. Its portability makes it the best solution for mobile applications such as mobile monitoring and analysis.

Versatile AVerMedia SDK

Industrial customers can develop vertical applications flexibly and efficiently by using a specifically designed SDK, with features such as device control, media capture, A/V processing, and more.

Learn more about AVerMedia SDK.

High Quality API Solutions

The AVerMedia EZMaker USB SDK provides users with a powerful set of API in DLL modules for more convenient and efficient development experiences, such as the option of capturing and previewing content in a video window. Users can also add customized text, dates and timestamps to a video.

As the leading expert of frame grabber solutions worldwide, AVerMedia now offers Linux driver and OpenCV integration to support C353W/CM313BW/C351W/C039P on NVIDIA TK1/TX1 platforms. The benefit of using AVerMedia C353W/CM313BW/C351W/C039P on NVIDIA TK1/TX1 platforms is to enable the application developers to acquire video feeds from many other kinds of cameras and/or video devices through HDMI, VGA, SDI, and Composite video interfaces, which are very much suitable for the applications of robotics, UAV (i.e. drone), medical image, UGV, surveillance, AOI, and in-veh

Specifications

Model	C039P
Host Interface	USB 2.0
Input	Composite/ S-Video/ Audio L/R
Input Video Resolution	720 x 480@60i, 720 x 576@50i
Capture Video format	NTSC/PAL: 80 x 60 (NTSC only), 88 x 72, 128 x 96, 160 x 120, 176 x 144, 240 x 180, 240 x 176, 320 x 240, 352 x 240, 352 x 288, 640 x 240,640 x 288, 640 x 480, 704 x 576 (PAL, SECAM only), 720 x 240, 720 x 288, 720 x 480, 720 x 576 (PAL, SECAM only)
Pixel Format	NTSC: YUY2 (4:2:2), UYVY (4:2:2) PAL/SECAM: YUY2 (4:2:2), UYVY (4:2:2), Y8
Color Adjustment	Brightness, Contrast, Hue, Saturation, Sharpness
Programming Language	VB, VC, Delphi, C#, VB.NET
SDK Framework	General DLL
Operating Temperature	Temperature: 0°C to 45°C Humidity: 0 to 80% RHNC
Storage Environment	Temperature: -30°C to +65°C Humidity: 0 to 90% RHNC
Power Requirement	5V max 2.06A
Dimension (mm)	82(L) x 28.49(W) x 14(H)
CPU	For SD Video Capturing (AVI Format) Intel® Pentium® 4.3.0G (HT) AMD Athlon™ 64 3200+ Intel® Pentium® Mobile Processor 2.0G or AMD equivalent
Memory	512 MB RAM or above
VGA	VGA card with support for DirectX9.0c or above
Sound Card	Yes
Supported OS	Win 7/ 8.1/10 (32/64 bits)*

*All specifications are subject to change without prior notice.
‧ For driver availability, please contact support
‧ Driver customization service by request

DOWNLOAD

Source code

3D drawing

Datasheet

Driver

User Manual

BSP for Nano

BSP for NX

BSP for TX2 NX

SDK and Capture Studio

BSP

Date : 2021-12-24 00:00:00

Version: AVerMedia SDK v1.2.1.65 & Capture Studio v1.5.1.56
OS: Win7/8.1/10 x86 and x64, Win11 x64
Description: Support Win11

Date : 2017-09-08 00:00:00

Version: [Windows Driver] 10.2.x.116
OS: Win7 x86, Win8.1 x86, Win10 x86
Description: Win10 RS2 WHQL

Date : 2017-09-08 00:00:00

Version: [Windows Driver] 10.2.x.116
OS: Win7 x64, Win8.1 x64, Win10 x64
Description: Win10 RS2 WHQL

Date : 2013-04-26 00:00:00

Product Datasheet
