D115WOXB/D115WONB (5G)

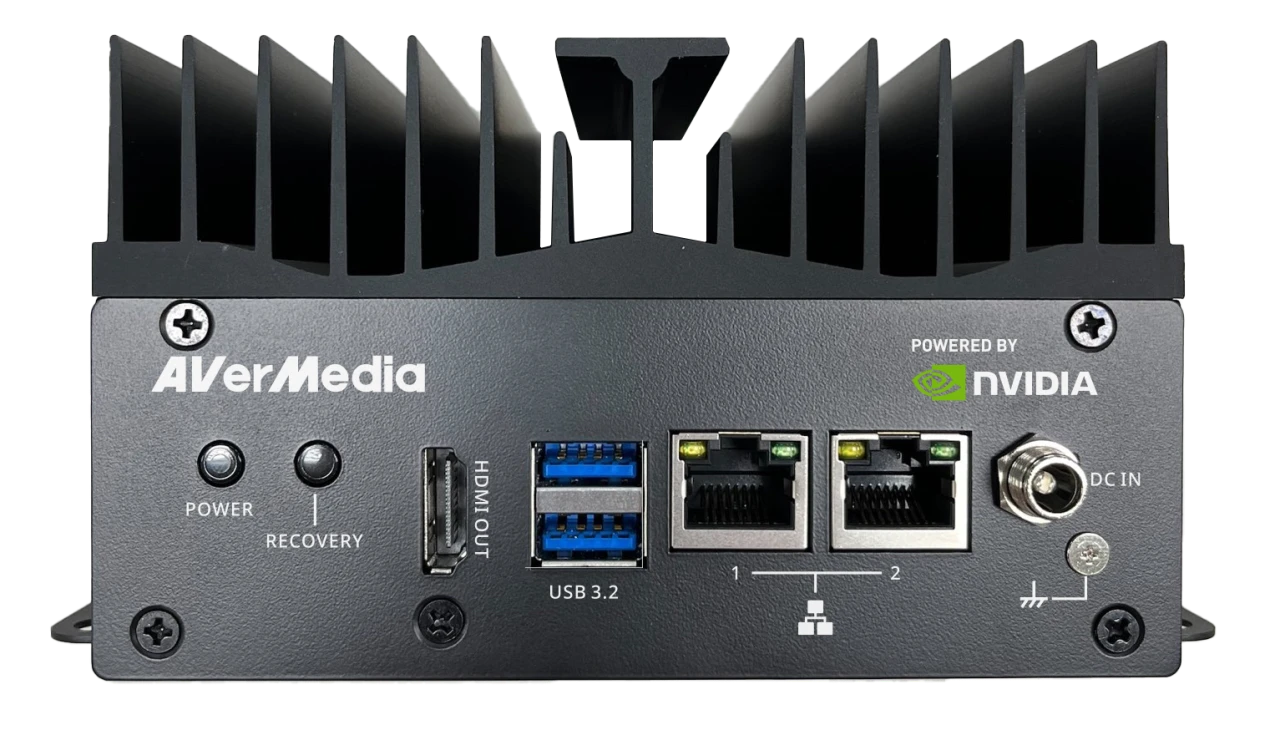

AI Box PC D115WOXB/D115WONB (5G) Equips NVIDIA® Jetson™ Orin NX/Orin Nano Module

Embedded NVIDIA® Jetson Orin NX / Orin Nano
2 x M.2. for WIFI and SSD
2 x GbE RJ-45 (Optional: Ethernet 1 for PoE ; Ethernet 2 can be used with OOB for NC-SI function )
1 x OOB for Power cycling and Cloud serial console (Optional)
2 x USB 3.2 & 1 x HDMI output
20-pins expansion header
Operating temperature -25°C~60°C (TBD)
Dimension: W: 126mm x L: 96mm x H: 74mm
Support Allxon 24/7 Edge AI device remote management with OOB disaster recovery solutions

Overview

AVerMedia's AI Box PC D115WOXB / D115WONB (5G) equips powerful NVIDIA® Jetson Orin NX / Orin Nano module. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.

D115WOXB/D115WONB (5G) is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others’ Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart Camera

Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.

Specifications

Model	D115WOXB-16G (5G)/D115WOXB-8G (5G) D115WONB-8G (5G)/D115WONB-4G (5G)
Type	Box PC
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson Orin NX module (16GB / 8GB) NVIDIA® Jetson Orin Nano module (8GB / 4GB)
Networking	2x GbE RJ-45 (Optional: Ethernet 1 for PoE* ; Ethernet 2 can be used with OOB for NC-SI function** ) 1xM.2. key E 2230 for wifi
Display Output	1 x HDMI output3840 x 2160 at 60Hz for Orin NX, 30Hzfor Orin Nano
Temperature	Operating temperature -25°C~60°C (TBD) Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs	2x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch Connector
USB	1x USB 2.0 type C for recovery 2x USB 3.2 Type-A
Storage	1x M.2. key M 2280 for NVMe (256G SSD installed in box PC)
Expansion Header (Internal)	20 pins: 2x I2C, 2x UART, 4x GPIOs, 1xCAN (EU terminal block)***
Input Power	DC in JACK on board & ATX 4pin 12V/5A, 9V~24V is recommended.
Power Cord	US/JP/EU/UK/TW/AU/CN
Fan Module	Fanless Solution
Buttons	Power and Recovery
RTC Battery	Support RTC battery and Battery Life Monitoring by MCU
PCB/Electronics Mechanical Info	W: 126mm (W) x 96mm (L) x 74mm (H) Weight: 1kg (TBD)
Certifications	CE, FCC, KC
Package	1x D115WOXB/D115WONB (256G SSD installed) 1x Adapter and Power cable

Ordering Information

Model	SKU Number	NVIDIA SOM	SSD	PSE board*	OOB Module** [Preliminary]	5G Daughter Board [Preliminary]	Mechanical Info
D115WOXB	D115WOXB-16G-001	Orin NX 16G	256G	-	-	-	•126mm x 96mm x 73.9mm (4.96” x 3.78” x 2.91”) • weight : 1kg
D115WOXB	D115WOXB-16G-002	Orin NX 16G	256G	YES	-	-	•126mm x 96mm x 73.9mm (4.96” x 3.78” x 2.91”) • weight : 1.1kg
D115WOXB (5G)	D115WOXB-16G-003	Orin NX 16G	256G	-	NC-SI Function	-	•126mm x 96mm x 73.9mm (4.96” x 3.78” x 2.91”) • weight : 1.3kg
D115WOXB (5G)	D115WOXB-16G-004	Orin NX 16G	256G	YES	NC-SI Function	-	•W: TBD •Weight: TBD
D115WOXB (5G)	D115WOXB-16G-005	Orin NX 16G	256G	-	RMII Function	-	•126mm x 96mm x 73.9mm (4.96” x 3.78” x 2.91”) • weight : 1.3kg
D115WOXB (5G)	D115WOXB-16G-006	Orin NX 16G	256G	YES	RMII Function	-	•W: TBD •Weight: TBD
D115WOXB (5G)	D115WOXB-16G-007	Orin NX 16G	256G	YES	-	4G Module	•W: TBD •Weight: TBD
D115WOXB (5G)	D115WOXB-16G-008	Orin NX 16G	256G	YES	-	5G Module	•W: TBD •Weight: TBD
D115WOXB (5G)	D115WOXB-16G-009	Orin NX 16G	256G	YES	-	Frame Grabber CN312SW	•W: TBD •Weight: TBD
D115WOXB (5G)	D115WOXB-16G-010	Orin NX 16G	256G	YES	-	Frame Grabber CN312M	•W: TBD •Weight: TBD

*With the optional OOB module, the default configuration uses Ethernet 2 for OOB management, rendering the OOB-Ethernet on the device inactive. Alternatively, we offer another option that allows users to manage via the Ethernet on the OOB module, changing the box PC configuration from 2x RJ45 to 3x RJ45.

Optional Accessories

Optional Accessories	Specs
MIPI Camera	For 22pin MIPI connector: 1. raspberry pi camera v2 /raspberry pi camera v3 2. Manufacturer: APPRO.PHO ■ B-04: IMX179 (8M) MIPI, 1080P (30fps)

Specs

MIPI Camera

For 22pin MIPI connector:

1. raspberry pi camera v2 /raspberry pi camera v3

2. Manufacturer: APPRO.PHO

■ B-04: IMX179 (8M) MIPI, 1080P (30fps)

* For details, please refer to the "Accessory-PoE Board" webpage.

** For details, please refer to the "Accessory-OOB module" webpage. Ethernet 2 supports NC-SI for enabling Allxon OOB and In-Band functions simultaneously.

***When equipped with the OOB module, 2x UART will be unavailable.

****Please contact your local sales for more information. All specifications are subject to change without prior notice.

Orin Box PC


OS	Version	Compatible SOM	Release Note
L4T 36.3 (Jetpack 6.0)	D115W_ORIN-R3.1.0.6.0.0 (BETA)	Orin NX 16G/8G Orin Nano 8G/4G	ReadMe
