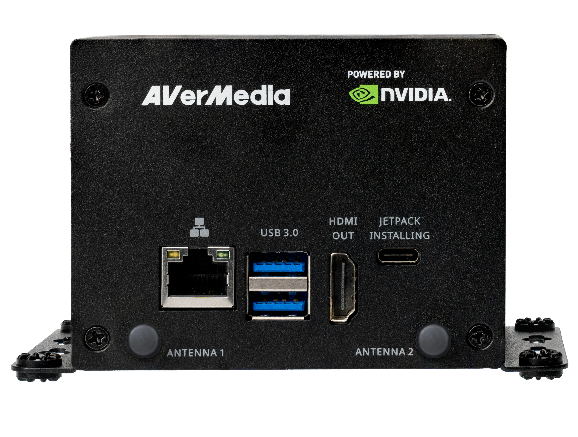

AVerMedia’s D133OXB/D133ONB Box PC equips powerful NVIDIA® Jetson Orin NX/ Orin Nano modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities
D133OXB/D133ONB Box PC is designed for the industry applications with spatial concern and compact yet efficient for rapid AI-based solution development and seamless deployment as required by demanding business applications.
AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
Gather and deliver the information to streamline decisions and create more value for the customer.
Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.
Model | D133OXB-16G/D133OXB-8G D133ONB-8G/D133ONB-4G |
---|---|
Type | Box PC |
NVIDIA GPU SoC Module Compatibility | NVIDIA® Jetson Orin NX 16G or 8G / Orin Nano 8G or 4G module |
Networking | 1 x GbE RJ-45 |
Display Output | 1 x HDMI output 3840 x 2160 at 60Hz for Orin NX, 30Hz for Orin Nano |
Temperature | Operating temperature -25°C~60°C |
MIPI Camera Inputs(Internal) | 2 x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch |
USB | 1 x USB 2.0 type C for recovery |
Storage | 1x M.2. key M 2280 for NVMe (256G SSD installed) |
Expansion Header | 20 pins: 2x I2C, 1x UART, 9x GPIOs |
Power Consumption | D133ONB : 14.4W to 25.4W D133OXB : 17.6W to 31.5W |
Input Power | 3.5mm Screw Terminal; 12V/5A, 9V~24V is recommended. |
Power Cord | US/JP/EU/UK/TW/AU/CN |
Thermal solution | Fan solution |
Buttons | Power and Recovery |
RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
Dimension/Weight | W: 93mm x L: 81.2mm x H: 74.4mm (TBD) |
Certifications | CE, FCC, KC(TBA) |
Package | 1x Box PC |
Optional Accessories | Specs |
---|---|
MIPI Camera | For 22 pin MIPI connector: |
*All specifications are subject to change without prior notice.
The Embedded System that Unlocks the Full Potential of AI
Date : 2024-05-06 00:00:00
OS | Version | Compatible SOM | Release Note |
L4T 35.5.0 (Jetpack 5.1.3) | D133_ORIN-R2.2.1.5.1.3 (BETA) | Orin NX 16G/8G Orin Nano 8G/4G | ReadMe |
Date : 2024-03-12 00:00:00
OS | Version | Compatible SOM | Release Note |
L4T 36.2 (Jetpack 6.2.0) | D133_ORIN-R3.0.0.6.2.0_DP (BETA) | Orin NX 16G/8G Orin Nano 8G/4G | ReadMe |
Date : 2024-03-12 00:00:00
OS | Version | Compatible SOM | Release Note |
L4T 35.4.1 (Jetpack 5.1.2) | D133ON-BSP-R2.1.1.5.1.2 (Beta) | Orin Nano 8G/4G | ReadMe |
Date : 2023-11-10 00:00:00
OS | Version | Compatible SOM | Release Note |
L4T 35.3.1 (Jetpack 5.1.1) | D133ON-R2.0.2.5.1.1 (BETA) | Orin Nano 8G/4G | ReadMe |
