NX215

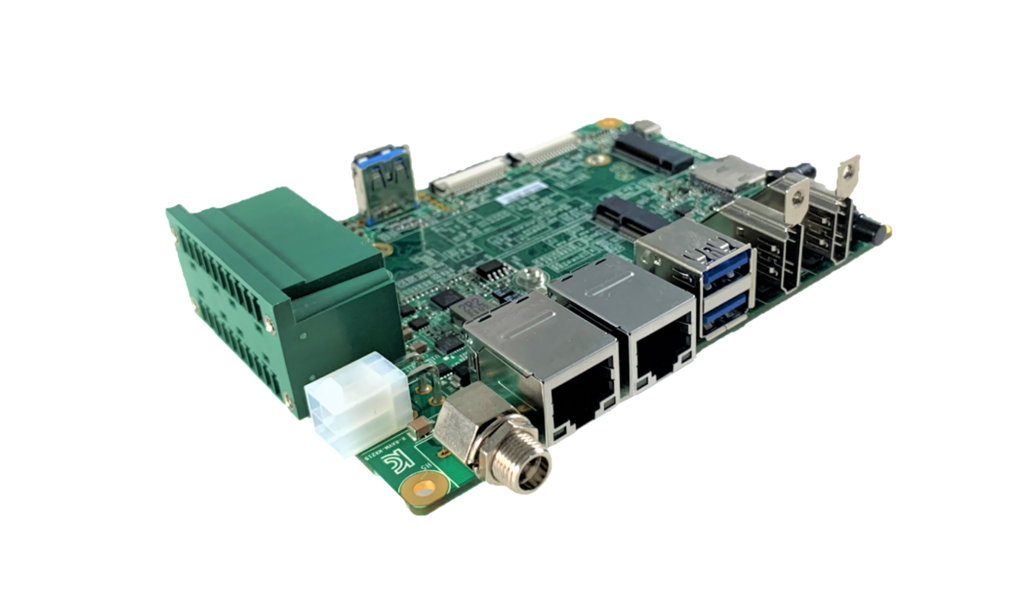

Standard Carrier Board NX215 for NVIDIA® Jetson Orin NX/Orin Nano/ Xavier™ NX/TX2 NX/Nano Module

Fully support NVIDIA® Jetson Orin NX/Xavier™ NX/ TX2 NX /Nano Module
Supports Super Mode for Jetson Orin™ Nano
2x 2 Lane MIPI CSI-2 Camera Input
1x 4 Lane MIPI CSI-2 Camera Input (not for Orin NX)
2x GbE RJ-45, 20-pins expansion header
3x USB 3.0
2x 4Kp60 HDMI output (Nano/Orin NX:1x4Kp60, Orin Nano 1x4Kp30)
1x micro-SD card slot ( not for Orin NX/ Orin Nano)
2x M.2. for WIFI and SSD (Nano doesn't support wifi)
Operating temperature: 0°C ~ 70°C
Dimension: W: 120mm x L: 90mm x H:26.5mm

Overview

AVerMedia’s NX215 Carrier board equips powerful NVIDIA® Jetson Orin NX/Orin Nano/Xavier™ NX/TX2 NX/NANO modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.

NX215 is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others’ Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart Camera

Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations for a variety of services.

Specifications

Model	NX215
Type	Carrier Board
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson Orin NX/Orin Nano/ Xavier™ NX/ TX2 NX/ Nano module
Networking	2x GbE RJ-45 1xM.2. key E 2230 for wifi (Nano doesn’t support)
Display Output	2x HDMI 2.0 (3840 x 2160 at 60Hz) (Nano/Orin NX: 1x HDMI 4Kp60, Orin Nano: 1x 4Kp30 )
Temperature*	Operating temperature 0°C~70°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs	•2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector •1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector (not for Orin NX/Orin Nano)
USB	1x USB 2.0 Micro-B for recovery 3x USB 3.0 Type-A
Storage	1x micro-SD card slot (not for Orin NX/Orin Nano) 1xM.2. key M 2280 for NVMe
Expansion Header (Internal)	20 pins: 2x I2C, 1x UART, 4x GPIOs, 1xCAN with transceiver (EU terminal block) (Nano: 0xCAN)
Input Power	DCINJACK on board & ATX 4pin 12V/5A, 12V~24V is recommended.
Power Cord	US/JP/EU/UK/TW/CN/AU
Fan Module	Heat sink with fan (optional)
Buttons	Power and Recovery
RTC Battery	Support RTC battery and Battery Life Monitoring by MCU
PCB/Electronics Mechanical Info	120mm (W) x 90mm (L) x 26.5mm (H) Weight: 125 g
Certifications	CE, FCC,KC

Optional Accessories	Specs
MIPI Camera	For 15 pin MIPI connector: 1.raspberry pi camera v2 and v3 2.Manufacturer: APPRO.PHO B-04: IMX179 (8M) MIPI, 1080P (30fps) C-05: IMX290 (2M) +ISP (YUV), 1080P (30fps) For 36 pin MIPI connector: (not for Orin NX) 1.Manufacturer: APPRO.PHO B-03: IMX334 (4K) MIPI, 4K (30fps) A-06: IMX334 (4K) V-by-One® HS x1, 4K (30fps)

Optional Accessories

Specs

MIPI Camera

For 15 pin MIPI connector:

1.raspberry pi camera v2 and v3

2.Manufacturer: APPRO.PHO

B-04: IMX179 (8M) MIPI, 1080P (30fps)
C-05: IMX290 (2M) +ISP (YUV), 1080P (30fps)

For 36 pin MIPI connector: (not for Orin NX)

1.Manufacturer: APPRO.PHO

B-03: IMX334 (4K) MIPI, 4K (30fps)
A-06: IMX334 (4K) V-by-One® HS x1, 4K (30fps)

* Temperature is still under testing. Please contact your local sales for more information.

** All specifications are subject to change without prior notice.

Orin Carrier Board

OS	Version	Compatible SoMs	Release Note
L4T r36.4.3 (Jetpack 6.2)	AVERMEDIA_JETPACK-R1.1.0.6.2.0 (Beta)	AGX Orin Orin NX & Orin Nano Orin Nano Super Mode	ReadMe


OS	Version	Compatible SOM	Release Note
[L4T 35.6.0] (Jetpack 5.1.4)	NX215B-R2.5.0.5.1.4	Xavier NX	ReadMe


OS	Version	Compatible SOM	Release Note
L4T r36.4 (Jetpack 6.1)	D115_ORIN-R3.2.0.6.1.0 (Beta)	Orin NX 16G/8G Orin Nano 8G/4G	ReadMe


OS	Version	Release Note
L4T 35.5.0 (Jetpack 5.1.3)	NX215B-R2.4.3.5.1.3	ReadMe


OS	Version	Compatible SOM	Release Note
L4T 36.3 (Jetpack 6.0)	D115_ORIN-R3.1.0.6.0.0 (BETA)	Orin NX 16G/8G Orin Nano 8G/4G	ReadMe
