How to Use the Live Streamer App on Android devices

Supported Devices

• Capture Devices: GC313Pro, GC515

Step 1: Connect Your Devices

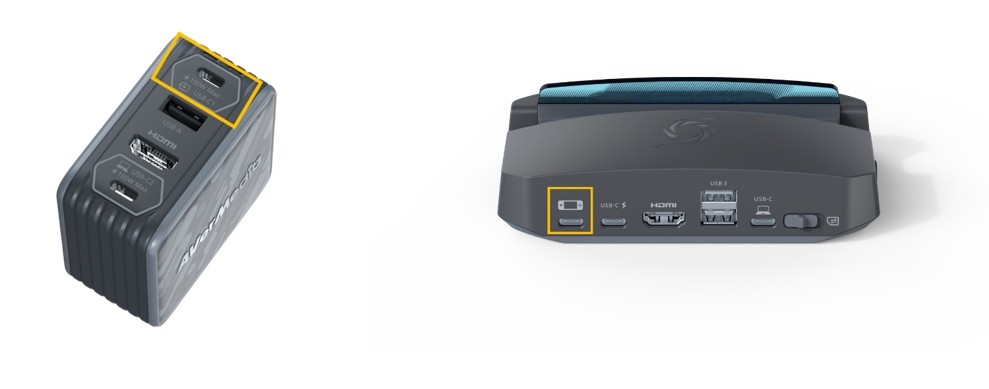

• Connect your signal source to the C1 port of the Elite Go using the included cable.
• Connect your signal source to the port with a handheld icon on the GC515.
  • Important: If you use GC515, make sure to connect the power supply of the signal source to the port with the thunder icon.

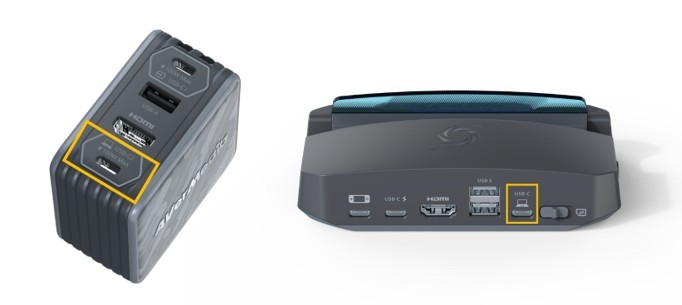

• Connect your Android device to the C2 port of GC313Pro using a USB cable that supports at least 5Gbps data transfer
• Connect to the port with a laptop icon on the GC515.

Step 2: Install the Application

• Download Live Streamer App from the Play Store
• Enable privacy settings so the app can access the capture device.

Step 3: Set Up Video Sources

• Tap the camera icon set primary camera device as your signal source.
•

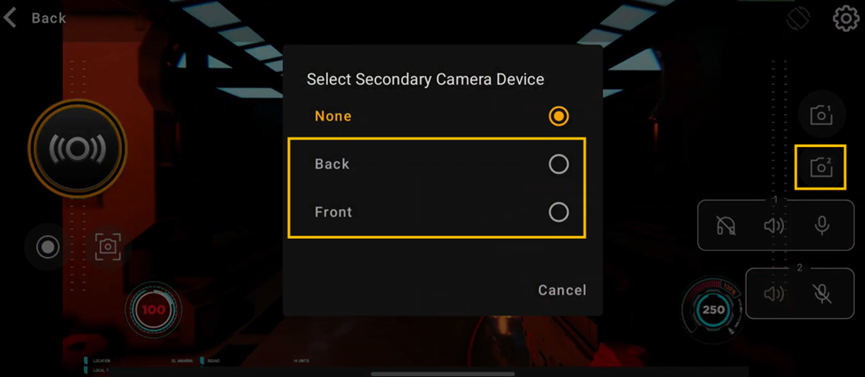

• Secondary camera device to your camera
•

• You can drag the Picture-in-Picture, zoom in/out, Double-tap to swap with the main scene.

Step 4: Set Up Audio Sources

• Tap the microphone icon Under the Camera source.

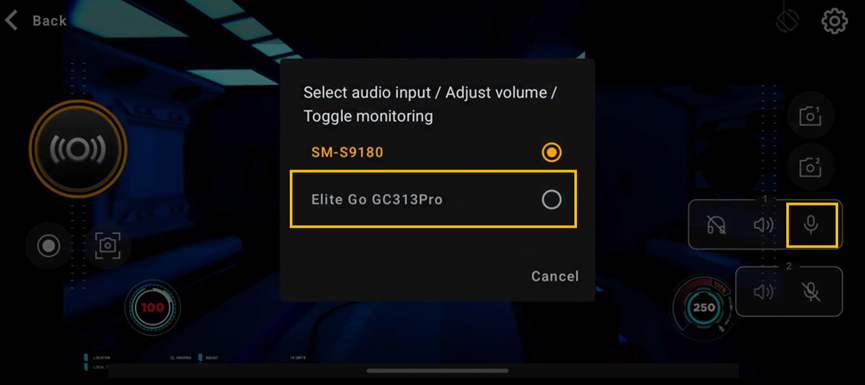

• For game sound:
  • Choose your capture device as the first audio source.
  •

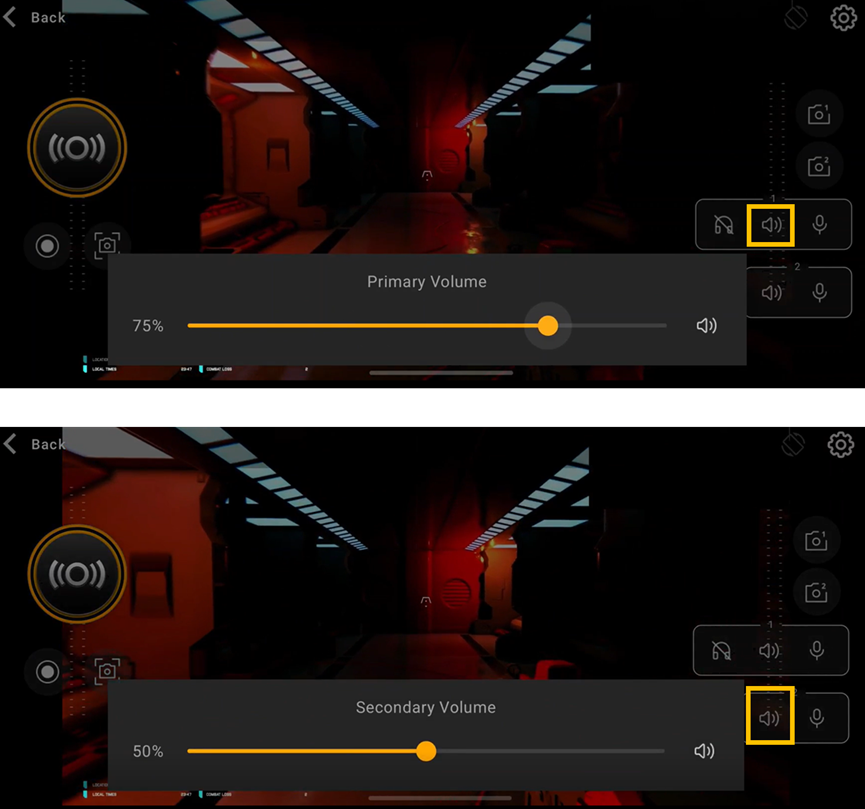

• • Adjust volume via the speaker icon.
  •

• • Enable sound monitoring via the headset icon.
  •

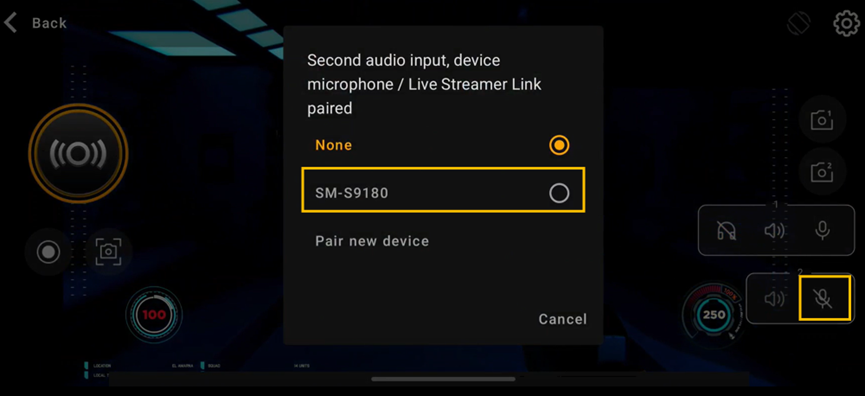

• For voice streaming:
  • Choose your device as the secondary audio source.



Step 5: Screenshots & Recording

• On the left:

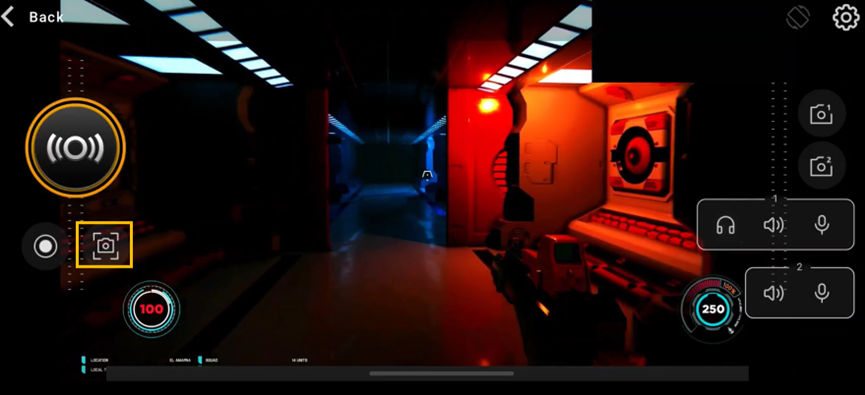

• Tap the camera icon to take a screenshot.
•

• • Tap recording icon to record video.
  •

• Change video resolution in Recording Settings.
•

Important: You cannot stream and record at the same time.

Step 6: Streaming Settings

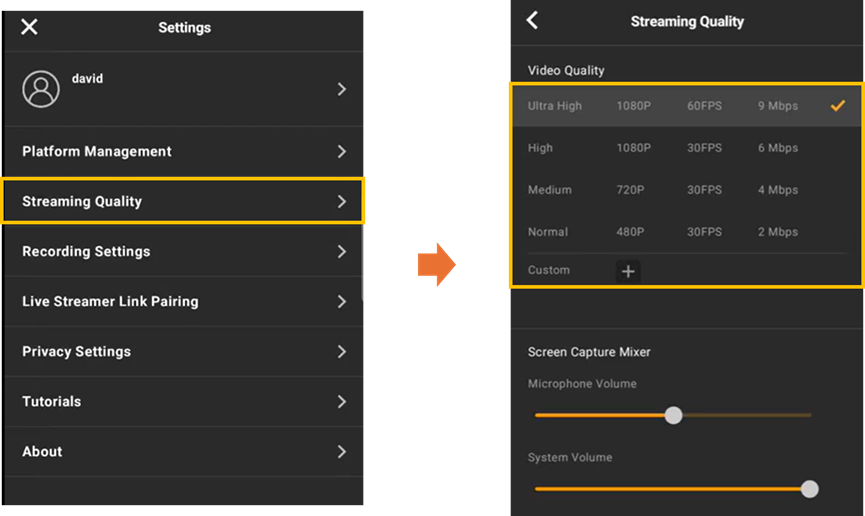

• Click Streaming Quality to set video quality.
•

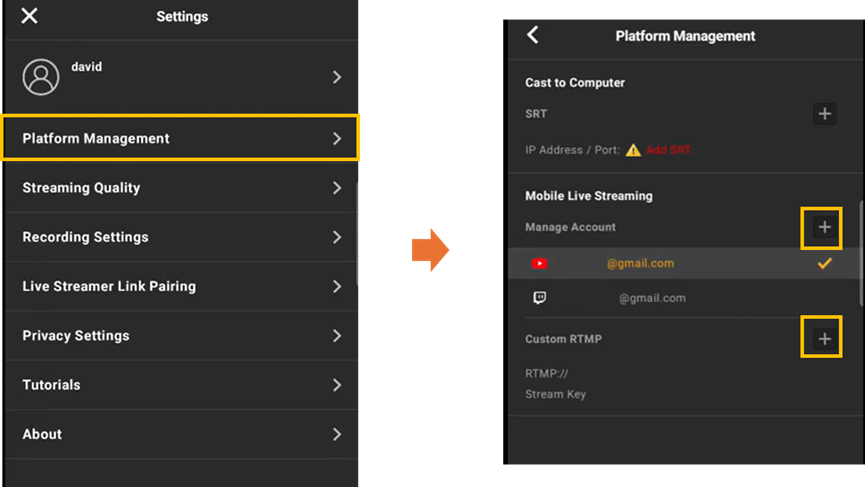

• Go to Platform Management:
  • Add a streaming platform account or a custom RTMP link.
  •

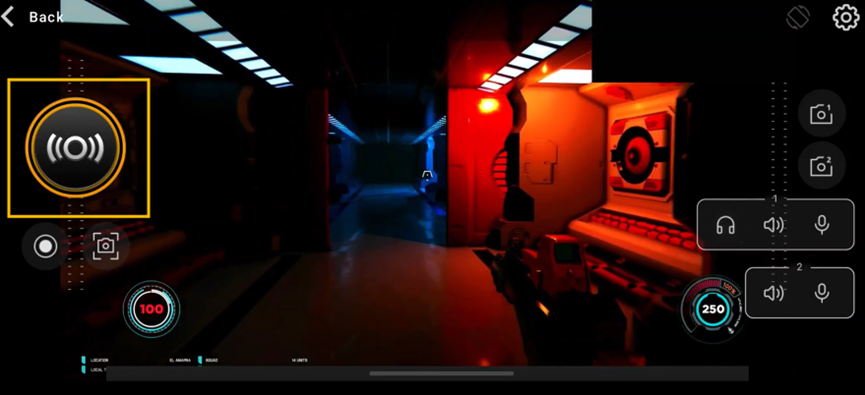

• On preview page:
  • Tap the streaming icon.
  • Set your title and description.
  • Click Confirm to start streaming.
