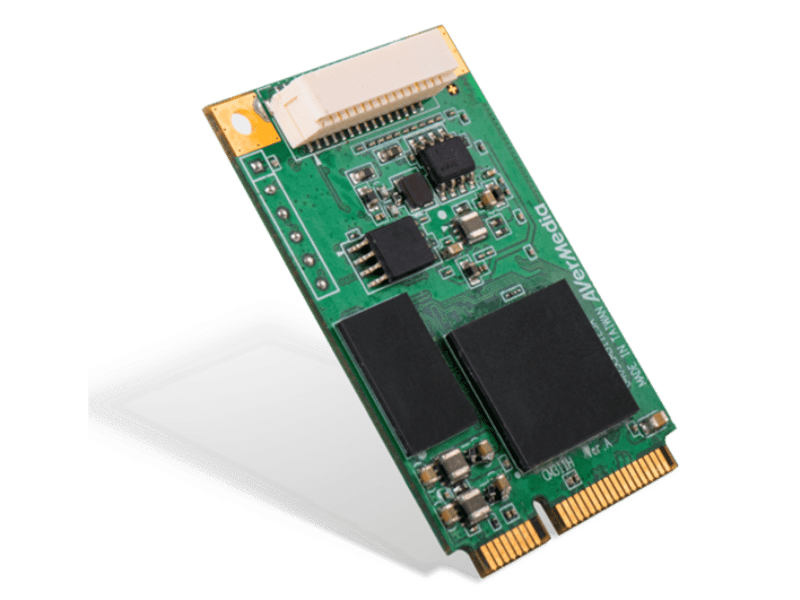

CM311-H is a Mini-PCIe HDMI frame grabber capable of capturing videos up to 1080p@60. With AVerMedia Video Engine technology inside, it can perform various video processing tasks such as frame rate conversion, de-interlacing, scaling and so on without consuming the computing power of the target platform.
It is endowed with full functions that are required to capture Full HD video for industrial and commercial markets such as data recorders, medical imaging devices, machine vision or any industrial imaging applications. The CM311-H design is committed to shorten the development schedule and provide integrators with a complete and rugged solution towards building their own applications.
The compact form factor design of a Mini PCIe card is perfect for small-footprint embedded systems. It is also ideal for solutions that need to be vibration-proof while the mounting holes make it suitable for in-vehicle, military and industrial applications.
CM311-H can support up to 4:4:4 10 bit RGB and YUV, meaning it can capture colors across the full color spectrum for richer and brighter image quality. The 10-bit color depth support is especially useful in the medical imaging applications where images with the slightest color variation may indicate different conditions or stages of diseases. This in turn may assist doctors in accurately diagnosing patient conditions.
Model | CM311-H |
---|---|
Host Interface | PCI Express Gen2 x1 |
Audio Interface | HDMI 1.4a |
Audio Format | HDMI embedded audio |
Audio Sampling Rate | 32KHz, 44.1KHz, 48KHz |
Connector Type | SHLD 30 pin connector |
Video Input Interface | HDMI |
Video Format | YUV444: IYU2, AYUV, V410, Y410 YUV422: YUY2, YUYV, UYVY, V210, Y210 YUV420: I420, NV12, YV12 RGB: RGB565, RGB555, RGB24, RGB32, ARGB |
Color Depth | 8-bit/ 10-bit |
Channel No. | 1 Ch |
Input Resolution | 1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60 fps 1920x1080i @ 50/59.94/60 fps 1280x720p @ 50/59.94/60 fps 720x576p @ 50 fps 720x480p @ 59.94/60 fps 640x480p @ 59.94/60 fps |
Record Resolution | 1920x1080 @ 23.98/24/25/29.97/30/50/59.94/60 fps 1280x720 @ 50/59.94/60 fps 720x576 @ 50 fps 720x480 @ 59.94/60 fps 640x480 @ 59.94/60 fps |
Encoding Mode | Software Encoding |
Multi-Card Support | Yes |
Supported OS | Windows 7/8.1/10 (32/64 bits)* |
Form factor | Mini PCIe |
Dimension (L x W) | 50.80 x 30 mm |
Power Consumption | ~ 4.0W |
Operating Temperature | 0°C ~ 50°C (by simulation) |
Operating Humidity | 5% ~ 80% Relative Humidity |
| Ordering Information |
---|---|
CM311-H | Mini-PCIe 1080p 60FPS HDMI Frame Grabber |

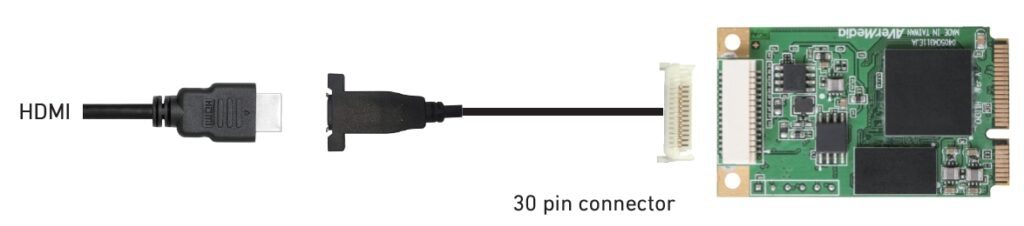

Accessories | •30 pin to HDMI adapter cable •Thermal pad Basic |
*All specifications are subject to change without prior notice.
** Linux Services
‧ For driver availability, please contact support
‧ Driver customization service by request
