4Kp30 HDMI 2-Channel Low Profile Video Frame Grabber
Maximum input resolution up to 4096×2160/30fps
Low-profile PCI Express form factor
Reduce the capture latency to shorten the time required for a full frame of image to be captured
Support hardware up/down scaling, de-interlacing, and color space convert
Support 10-bit color depth
For 4-channel model: CL314H1

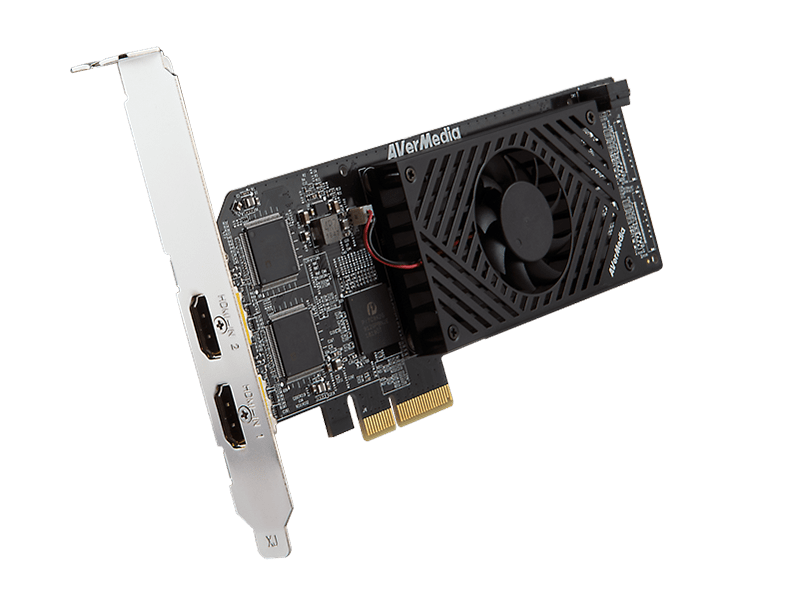

AVerMedia CL312H1, the 4Kp30 HDMI 2-channel low profile video capture card, is equipped by four HDMI channels with the embedded audio input and supports astounding uncompressed real-time video capturing up to 4096×2160 30fps resolution.
CL312H1 can improve the quality of a wide range of media recorded for businesses, universities, broadcasting, and manufacturing facilities, which can eventually provide a more lifelike and smooth video playback experience.

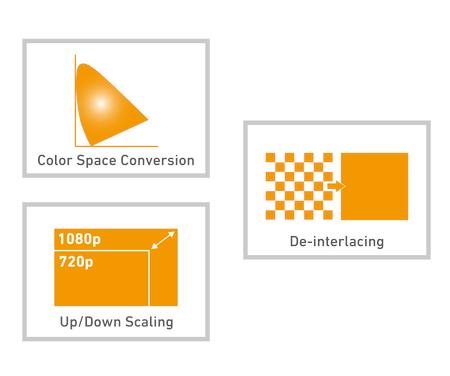

With the AVerMedia Video Engine Technology inside, it can perform various video processing tasks such as frame rate conversion, hardware up/down scaling, de-interlacing, and so on without consuming the computing power of the target platform.
With the powerful FPGA-based design, the CL312H1 is able to achieve a better performance and provide more improved capture quality and reliability.
Suitable for small-footprint embedded platform, the compact low profile form factor design provides a better use of internal space and reduces cable routing. It increases the use of interior space for a more flexible heat spreading solution.
CL312H1 has built-in AVerMedia Video Engine technology which implements most useful video enhancing features to significantly reduce the efforts of CPU and the software development. In other words, this can help our clients to achieve the better cost saving of the hardware platform and the development resource.
The 10-bit color depth support is especially useful in the medical imaging applications where images with the slightest color variation may indicate different conditions or stages of diseases. This in turn may assist doctors in accurately diagnosing patient conditions.
Model | CL312H1 |
|---|---|
Host Interface | PCIe Gen2 x 4 |
Audio Interface | HDMI embedded PCM |
Audio Format | Embedded HDMI, PCM |
Audio Sampling Rate | 32/44.1/48KHz |
Connector Type | HDMI Type A |
Input Interface | HDMI*2 (HDMI 1.4a) |
Video Format | YUV444: IYU2, AYUV, V410, Y410 YUV422: YUY2, YUYV, UYVY, V210, Y210 YUV420: I420, NV12, YV12 RGB: RGB565, RGB555, RGB24, RGB32, ARGB |
Color Depth | 8 bit/10bit |
Channel No. | 2 channels |
Max. Input Resolution
| 4096 x 2160 @ 30fps (by pass) |
Max. Recording Resolution | 2-CH 4096x2160 30fps (by pass) |
Multi-Card Support | Yes |
Supported OS | Windows 7, 8.1, 10 (32/64-Bit) Linux Kernel 2.6.14 and above (32/64-bit) |
Form Factor | PCIe Low Profile |
Dimension (L x W) | 180 x 68.78 mm |
Power Consumption | 16W |
Operating Temperature
| 0°C ~ 60°C |
Operating Humidity | 5% - 80% Relative Humidity |
Safety Certification | FCC / CE |
*All specifications are subject to change without prior notice.
