D315AO 5G

• 1x M.2 B key for 4G & 5G, 1x M.2. E key for Wi-Fi 6E and 1x M.2. M key for SSD and capture

• 120-pin highspeed connector for MIPI SerDes cameras, such as GMSL2/FPD-link III/V-by-One® HS, to deploy in AMRs application

• 1x GbE & 1x 10G RJ-45 ethernet for dozens of IP cameras streaming simultaneously in smart security application

• 10GigE Vision camera connector for smart inspection and 1x PCIe slot for multi-function expansion

• Operating temperature: -25°C ~ 70°C

• Dimension: 141.5mm(W) x 133.5mm(L) x 63mm(H)

Overview

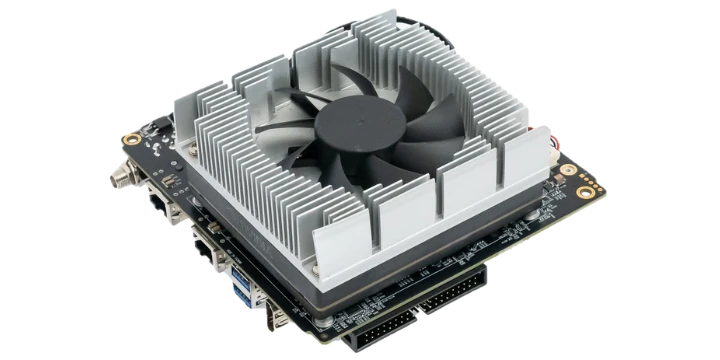

AVerMedia Engineering Kit D315AO 5G built with NVIDIA® Jetson AGX Orin & AGX Orin Industrial module, which brings next-level AI performance and power-efficient capability for all autonomous machines. This optional SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.

D315AO 5G includes a 120-pin high-speed connector for connecting MIPI SerDes cameras, which can fulfill the demand for AMRs. In addition, a sufficient Ethernet bandwidth with 10G is excellent for applying smart security, enabling dozens of IP cameras to stream simultaneously. The connector for the 10GigE Vision Camera is also great for smart inspection. Lastly, with its compact size, D315AO 5G furnishes a PCIe slot for multi-function expansion and excellent compatibility with 5G and Wi-Fi 6.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

AMRs

AMRs deployment relies on live camera feeds to provide a rapid and flexible adjustment for the working process and creates a significant productivity growth.

Smart Security

Smart security relies on live camera feeds to benefit from the video analysis to improve and ensure community safety.
