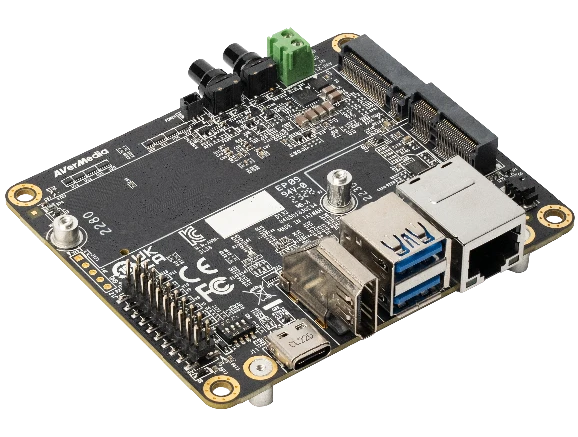

Standard Carrier Board D133 Equips NVIDIA® Jetson™ Orin NX/Orin Nano Module
Applies to NVIDIA® Jetson Orin NX/ Orin Nano module
Supports Super Mode for Jetson Orin™ Nano
1 x GbE RJ-45
2 x USB 3.2
1x 4Kp60 HDMI outputs (Orin NX)
1x 4Kp30 HDMI outputs (Orin Nano)
2 x M.2 key for SSD/wifi
2 x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch
20-pin expansion header
Operating temperature: -40°C ~ 85°C
Dimension: 90mm x 76mm (3.54” x 2.99”)
AVerMedia’s D133 Carrier Board support powerful NVIDIA® Jetson Orin NX/ Orin Nano modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities
D133 Carrier Board is designed for the industry applications with spatial concern and compact yet efficient for rapid AI-based solution development and seamless deployment as required by demanding business applications.
AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
Gather and deliver the information to streamline decisions and create more value for the customer.
Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.
Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.
Model | D133 |
|---|---|
Type | Carrier Board |
NVIDIA GPU SoC Module Compatibility | NVIDIA® Jetson Orin NX/ Orin Nano module |
Networking | 1 x GbE RJ-45 |
Display Output | 1 x HDMI output 3840 x 2160 at 60Hz for Orin NX, 30Hz for Orin Nano |
Temperature | Operating temperature -40°C~85°C |
MIPI Camera Inputs(Internal) | 2 x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch |
USB | 1 x USB 2.0 type C for recovery |
Storage | 1x M.2. key M 2280 for NVMe |
Expansion Header | 20 pins: 2x I2C, 1x UART, 9x GPIOs |
Input Power | 3.5mm Screw Terminal; 12V/5A, 9V~24V is recommended. |
Power Cord | US/JP/EU/UK/TW/AU/CN (optional) |
Thermal solution | Fan solution (optional) |
Buttons | Power and Recovery |
RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
PCB/Electronics Mechanical Info | 90mm x 76mm (3.54” x 2.99”) W/O mounting hole |
Certifications | CE, FCC, KC |
Package | 1x D133 Carrier board |
Model | SKU Number | Description |
|---|---|---|
D133 | D133-001 | - |
D133 (5G) | D133-002 | Compatible with OOB/5G/capture card through the OOB module and daughter board. Please note that a separate order is required. |
Optional Accessories | Specs |
|---|---|
MIPI Camera | For 22 pin MIPI connector: |
*For more detailed specification of OOB module, please check the "Accessory" page.
**Please contact your local sales for more information. All specifications are subject to change without prior notice.
Date : 2024-11-22 00:00:00
| OS | Version | Compatible SOM | Release Note |
| L4T r36.4 (Jetpack 6.1) | D133_ORIN-R3.2.0.6.1.0 (Beta) | Orin NX 16G/8G Orin Nano 8G/4G | ReadMe |
Date : 2024-05-28 00:00:00
| OS | Version | Compatible SOM | Release Note |
| L4T 36.3 (Jetpack 6.0) | D133_ORIN-R3.1.0.6.0.0 (BETA) | Orin NX 16G/8G Orin Nano 8G/4G | ReadMe |
Date : 2024-05-06 00:00:00
| OS | Version | Compatible SOM | Release Note |
| L4T 35.5.0 (Jetpack 5.1.3) | D133_ORIN-R2.2.1.5.1.3 (BETA) | Orin NX 16G/8G Orin Nano 8G/4G | ReadMe |
Date : 2024-03-12 00:00:00
| OS | Version | Compatible SOM | Release Note |
| L4T 35.4.1 (Jetpack 5.1.2) | D133ON-BSP-R2.1.1.5.1.2 (Beta) | Orin Nano 8G/4G | ReadMe |
Date : 2023-11-10 00:00:00
| OS | Version | Compatible SOM | Release Note |
| L4T 35.3.1 (Jetpack 5.1.1) | D133ON-R2.0.2.5.1.1 (BETA) | Orin Nano 8G/4G | ReadMe |
