C725B
SD PCIe Frame Grabber
Fully DirectShow compatible
Supports uncompressed video capture for AVI or WMV formats
Supports snapshots for BMP or JPG formats
Captures and digitizes NTSC/PAL/SECAM analog signals
Supports multiple programming languages
Overview

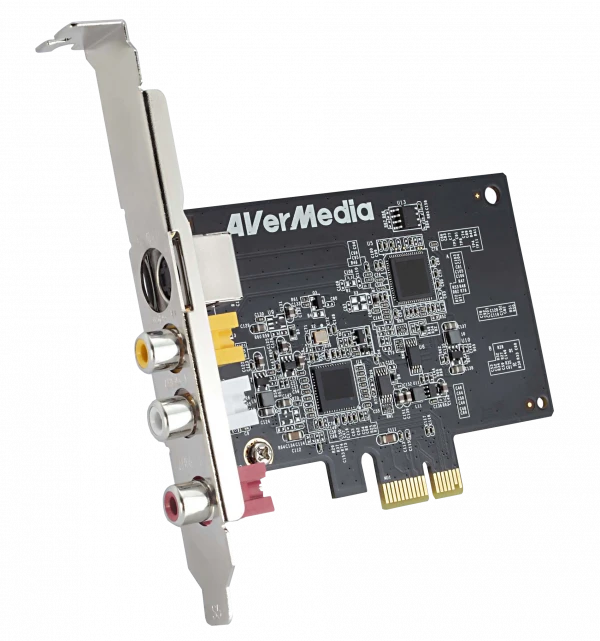

The AVerMedia C725B is a PCI-E video capture card equipped with composite, S-Video and stereo audio inputs for digitizing video from analog signals into uncompressed AVI format at 25/30 fps for a wide range of resolutions. It supports PAL, NTSC and SECAM video standards, and also comes with a software development kit that includes frequently used applications to allow system developers to integrate apps in various operating platforms.
Specifications
Model | C725B |
|---|---|
Host Interface | PCIe |
Input | S-Video Composite video RCA audio |
Input Video Resolution | 160 × 120, 176 × 144, 240 × 180, 240 × 176 |
Pixel Format | YUY2(4:2:2), UYVY (4:2:2), RGB24 (4:4:4) |
Color Adjustment | Brightness, Contrast, Hue, Saturation, Sharpness |
Multi-Card Support | Yes (up to 8 pcs) |
Programming Language | Visual Basic, Visual C++, Delphi, C#, VB.NET |
Operating Environment | Temperature: 0 to +65 ℃ |
Storage Environment | Temperature: -30 to +65 ℃ |
Power Requirement | 3.3V max 400mA |
Dimensions (L x W) | 93.5 x 68.78mm |
CPU | Intel® Pentium® 4 3.0 GHz AMD Athlon™ 64 3200+ |
Memory | 512 MB RAM |
VGA | VGA card with support for DirectX9.0c or above |
Supported OS | Windows 7/ 8.1/ 10 (32/ 64 bits)* |
Sound Card | Yes |
*All specifications are subject to change without prior notice.
‧ For driver availability, please contact support
‧ Driver customization service by request
‧ For home use, the C725B does not support branded computer systems equipped with Intel 12th or 13th Gen CPUs, whether running Windows 10 or Windows 11, which may result in screen freezing.
