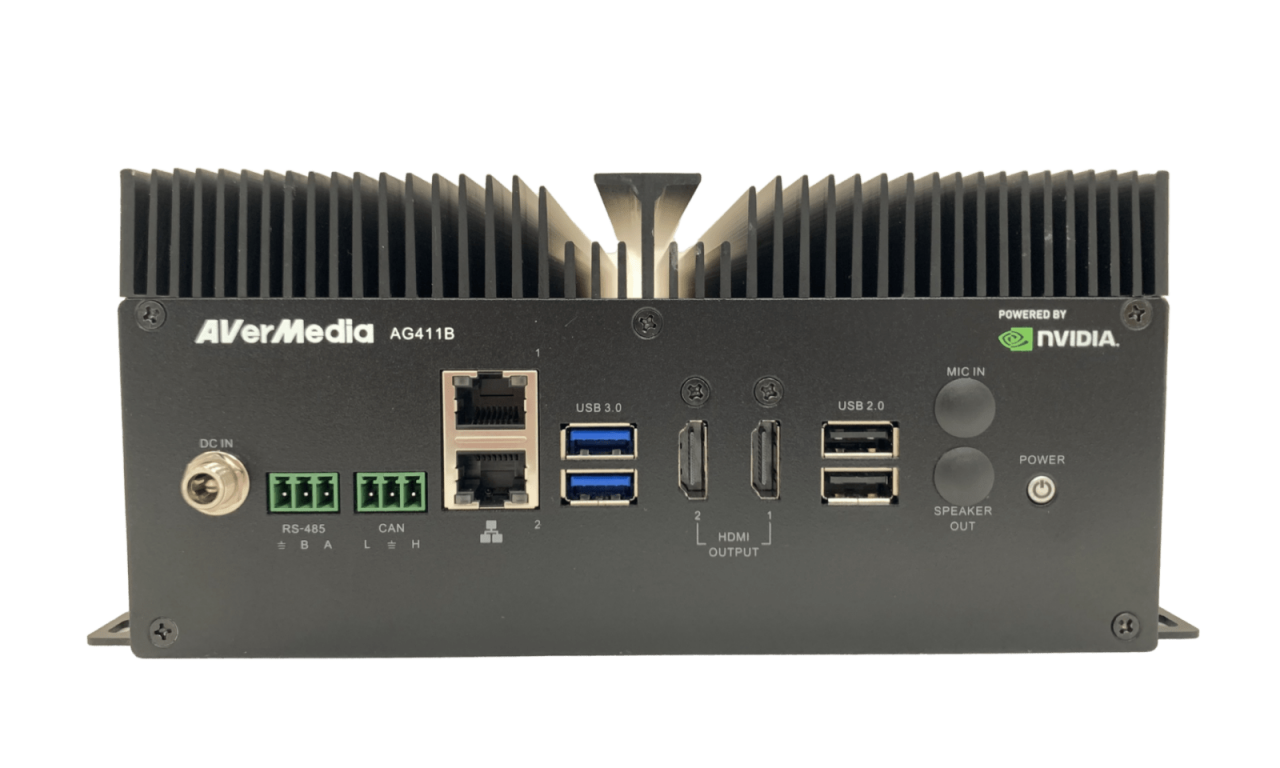

AG411B

Standard Box PC AG411B equips NVIDIA® Jetson™ AGX Xavier™ or Xavier™ Industrial Module

• Embedded NVIDIA® Jetson AGX Xavier™ or Xavier™ Industrial 32GB / 64GB* module

• 2x M.2 Key M 2280 or 3x mPCIe alternatively

• 1x M.2 Key E 2230 for Wi-Fi module

• 1x M.2 Key M 2280 for NVMe

• 2x GbE, 2x USB 3.0, 2x 4Kp60 HDMI output

• 1x CAN bus with transceiver

• Wide input voltage: 12~54V DC Input

• Easy to use with expansion I/O on one side.

• Operating temperature: -10°C ~ 60°C

• Dimension: W: 190mm x L: 240mm x H: 88.5mm (Product only)

Overview

AVerMedia Industrial AI Box PC AG411B equips with NVIDIA® Jetson AGX Xavier™ or Xavier™ Industrial module which aims targets AI-centric use cases for edge AI industrial computing such as heavy industry and industrial automations requiring wide input voltage operation. AG411B is easy to use with expansion I/O on one side.

AG411B Box PC provides 2x M.2 Key M 2280 and 3x mPCIe slots alternatively for Xavier to receive various video inputs by using AVerMedia’s capture cards. These 2x M.2 Key M 2280 and 3x mPCIe slots share PCIe Gen2 x4 lanes, so AG411B Box PC can provide three different combinations for developers to install video capture cards alternatively, such as 2x M.2 Key M 2280 slots and 3x mPCIe slots.

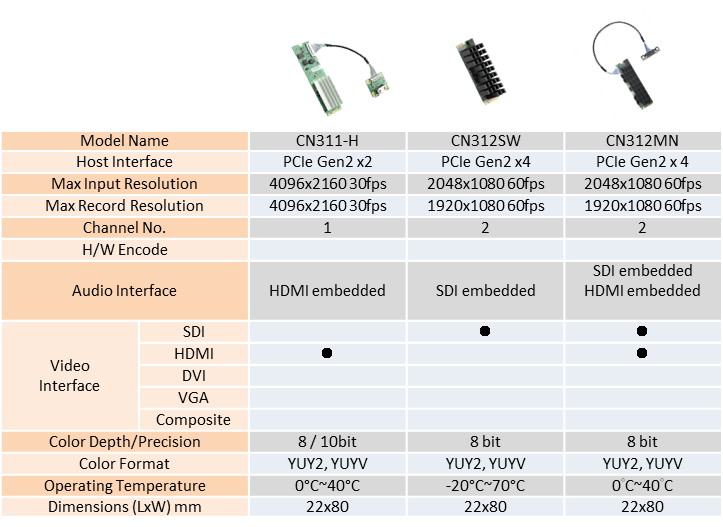

By using AVerMedia’s extended video capture cards, Xavier is able to receive HDMI, SDI, composite video inputs, and even dual 4Kp30 HDMI video inputs for different application scenarios. This highly integrated edge computer is a well prepared application ready system for developers to overcome the challenges timely and easily.

Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others’ Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart Camera

Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.

Specifications

* Temperature is still under testing. Please contact your local sales for more information.

** All specifications are subject to change without prior notice.
