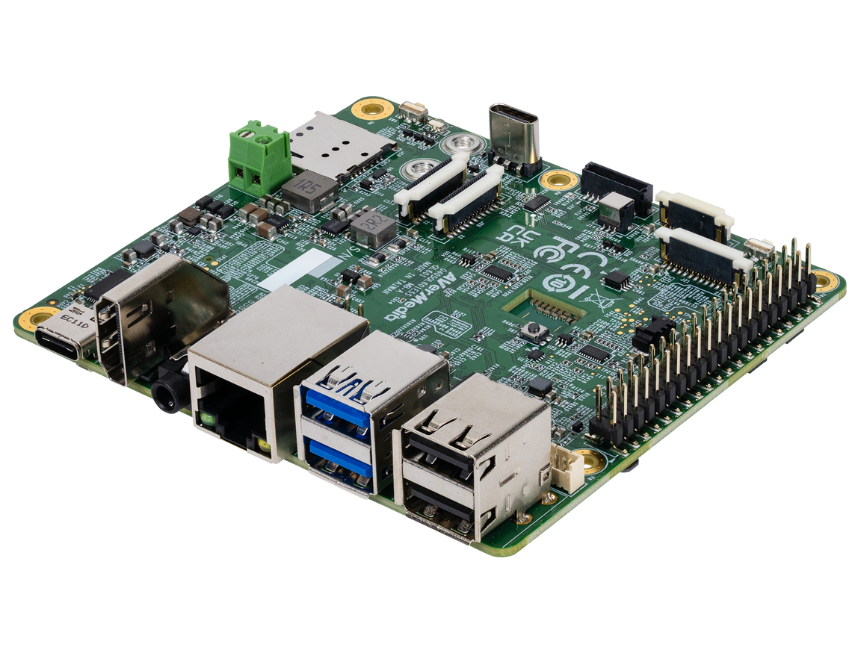

Single Board Computer
Equipped with Qualcomm® Dragonwing™ QCS6490
Qualcomm® Dragonwing™ QCS6490 Processor
1 x GbE RJ-45
2 x USB 3.0 & 2 x USB 2.0
1x HDMI 2.0 (3840x2160 at 60Hz)
1 x M.2 key B for LTE/5G
2 x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch
40-pin expansion header
Operating temperature: 0°C ~ 60°C
Dimension: 98.4mm x 88.5mm x 26.5mm
Accelerate development & deployment
AVerMedia offers comprehensive Camera Ecosystem partners to supports different interfaces like MIPI-CSI2, USB, GMSL, etc.
QL601 is designed to be compatible with a variety of daughter boards for expansion needs. To accelerate AI development, we offer AVT SDK & API on QL601.
Assure Manageability and Security
AVerMedia designs solutions with advanced out-of-band remote management capabilities. In terms of security, our design integrates Qualcomm TEE and provides cybersecurity solutions through our ISV ecosystem partners.
Power Efficiency and seamless wireless connectivity
Powered by the Qualcomm® Dragonwing QCS6490 Processor, the solution consumes just 6.9W while supporting Wi-Fi 6 and Bluetooth. AVerMedia's design also includes an M.2 KeyB slot for cellular module integration.
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
Gather and deliver the information to streamline decisions and create more value for the customer.
Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.
Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.
Model | QL601 |
|---|---|
Type | Single Board Computer |
Platform/Computer Power | Qualcomm® Dragonwing QCS6490 Processor/12.5 TOPS |
Networking | 1 x GbE RJ-45 1 x 802.11ax Wi-Fi and Bluetooth 5.2 1 x M.2 key B for LTE/5G |
Display Output | 1 x HDMI output 3840 x 2160 at 60Hz |
Temperature | Operating temperature 0°C~60°C Relative humidity 40°C @ 95%, Non-Condensing |
MIPI Camera Inputs(Internal) | 2 x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch |
USB | 2 x USB 2.0 Type-A |
Storage | 1 x microSD card slot |
Expansion Header | 40-pin GPIO: 2 x 3.3V DC power, 2 x 5V DC power, 2 x UART, 2 x SPI, 1 x PWM, 6 x GPIO, 2 x I2C, 1 x I2C(3.3V) |
Input Power | Type-C 45W DC-in/ |
Power Cord | US/JP/EU/UK/TW/AU/CN (optional) |
Thermal solution | Fan and Fanless solution (optional) |
Buttons | Power and Recovery |
RTC Battery | Support RTC battery |
PCBA/Electronics Mechanical Info | L: 98.4mm x W: 88.5mm x H: 26.5mm |
Certifications | CE, FCC, KC |
Package | 1x QL601 SBC |
Expansion Board | Description |
|---|---|
PCIe to GbE Ethernet | Supports Driver-Free, Plug And Play, With Transparent Acrylic Mounting Plate, Side-Mounting Solution compatible with QL601 |
Raspberry Pi PCIe to M.2 M Key | Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, also for Raspberry Pi 5 and compatible with QL601 |
Raspberry Pi PoE HAT | Power via an Ethernet cable, provided that power-sourcing equipment is installed |
AVerMedia OOB Module | Complete solution that provides remote device management services |
AVerMedia POE Board (PSE) | Base on 802.3af to deliver both power and data over a single Ethernet cable, streamlining installations and enhancing device connectivity. |
*For more detailed specification of OOB module, please check the "Accessory" page.
**Please contact your local sales for more information. All specifications are subject to change without prior notice.
