Box PC - NX213B

Overview Download
Where to Buy

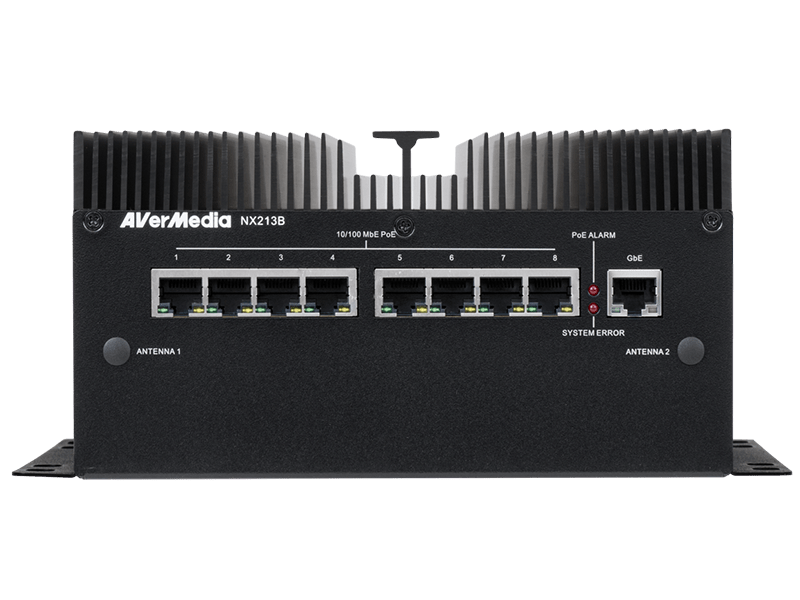

NX213B

Standard Box PC NX213B Equips NVIDIA® Jetson™ Xavier™ NX Module

  • Embedded NVIDIA® Jetson Xavier™ NX 8GB/ 16GB module

  • 8x 10/100 MbE with PoE

  • 1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI output

  • 20 pins with 1x UART, 2x I2C, 9x GPIOs

  • 1x RS-485 (3 pins), 1x Micro-B USB 2.0 for recovery

  • 1x mPCIe (Host Interface: USB 2.0)

  • Operating temperature: 0°C ~ 50°C

  • Dimension: W:190mm x L:175mm x H:100mm (W:225mm with mounting ears)

Overview



AVerMedia’s NX213B Box PC of NVIDIA® Jetson Xavier™ NX is designed as an A.I. NVR (Network Video Recorder) for intelligent surveillance system.

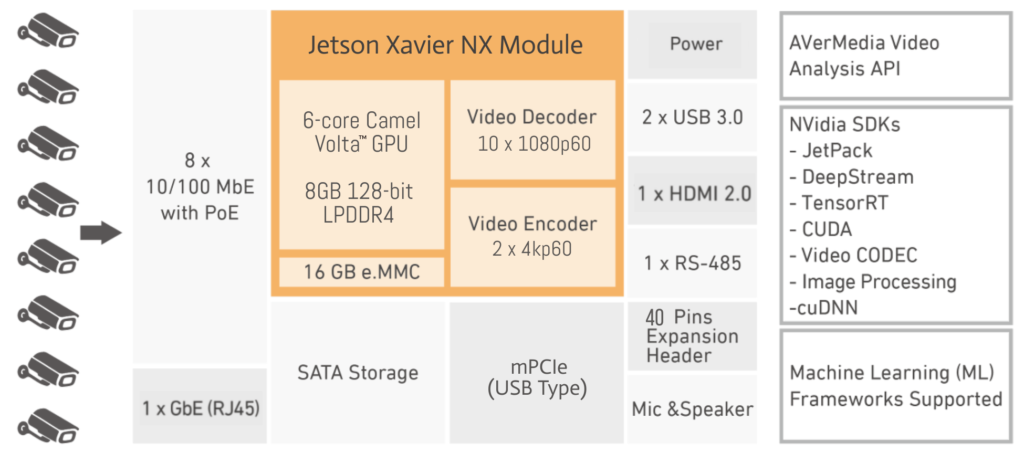

This product provides 8-channel PoE (PSE) ports for IP cameras, a SATA port for storage, 1x mPCIe, 2x USB 3.0 , 1x microphone input, 1x speaker output, 1x RS-485 and 20-pin expansion header (I2C, SPI, UART, I2S), 1x HDMI 2.0 out. NX213B can operate in the temperature range from 0°C ~ 50°C.



Benefiting from the Jetson Xavier™ NX and DeepStream SDK, it can simultaneously decode and analyze 8-channel 1080p60 IP camera videos.





NX213B Box PC is designed as an application ready platform for multiple applications to improve the performance, flexibility and time to market. With NX213B, software developers not only can deploy their deep learning software on this system but also can market their software in a Box PC as a complete solution. This can greatly help simplify the efforts and processes of the system integration in launching their A.I. solution into the market faster.

Key Industries



AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart Camera

Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.

Specifications

Model

NX213B

Type

Box PC

NVIDIA GPU SoC Module Compatibility

NVIDIA® Jetson Xavier™ NX 8GB/ 16GB module

Networking

1x GbE RJ-45

8x 10/100 MbE RJ-45 with PoE

(Max for the first 4 ports is 15.4W and total power budget is 90W)

Display Output

1x HDMI 2.0a/b Type-A supports maximum resolution 3840x2160 at 60Hz

Temperature

Operating Temperature 0°C ~ 50°C

Storage Temperature -40°C ~ 85°C

Relative Humidity 40 °C @ 95%, Non-Condensing

USB

1x USB 2.0 Micro-B for recovery

2x USB 3.0 Type-A (USB 3.2 Gen1 x 1)

Storage

16GB e.MMC v5.1

GPIO Expansion

1x 3.3V UART, 2x I2C, 9x GPIOs

Audio

1x Mic in, 1x Speaker out

Input Power

54V/2.78A

Buttons

Power and Recovery Button (Power button is green LED)

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

Chassis Dimension/ Weight

W:190mm x L:175mm x H:80mm (W:225mm with mounting ears)

Weight: 4 Kg

Certifications

CE, FCC,KC

*All specifications are subject to change without prior notice.

DOWNLOAD

Datasheet
Driver
User Manual
BSP for Nano
BSP for NX
BSP for TX2 NX
SDK and Capture Studio
BSP

Date : 2022-01-06 00:00:00

Version: EN713-NX-R1.0.17.4.6
OS: L4T_32.6.1 (JetPack 4.6)
Description:
1. Upgrade to L4T_32.6.1 (JetPack 4.6 rev.3)
2. Support PCB version E a. split into two network interfaces, one for GbE, the other for PoE cameras b. support controling the power supply of 8-port PoE (PSE)
3. Support changing default user/password
ReadMe

Date : 2022-11-02 00:00:00

Product Datasheet

Date : 2022-10-31 00:00:00

User Manual
Show More
×
