Box PC - NX211B_NO111B

Overview Download
Where to Buy

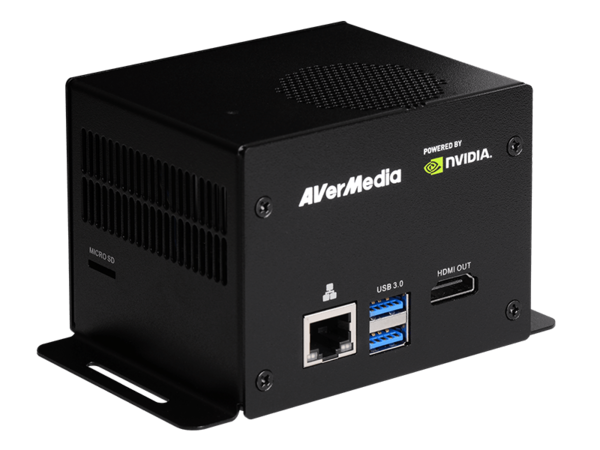

NX211B/NO111B

Standard Box PC NX211B/NO111B Equips NVIDIA® Jetson™ Xavier™ NX /Nano Module

  • Embedded NVIDIA® Jetson Xavier™ NX/Nano module

  • 1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI outputs

  • 1x micro-SD card slot

  • Operating temperature:

     0°C ~ 55°C (NX), 0°C ~ 60°C (Nano)

  • Dimension: W: 91.4mm x L: 76.6mm x H: 70mm



Overview



AVerMedia AI Box PC NX211B/NO111B equips NVIDIA® Jetson Xavier™ NX/ Nano module and is designed for the industry applications in the environment with the high physical space concern and operation in the temperature range from 0°C to 55°C or 60°C. It features the very compact dimensions of 91.4mm (W) x 76.6mm (L) x 70mm (H).



NX211B can provide the access to a list of rich I/O functions, which includes 2x 2 Lane MIPI CSI-2, 1x 4 Lane MIPI CSI-2 Camera Input (internal), 1x 4Kp60 HDMI output, 2x USB 3.0, 1x GbE RJ-45, 20-pins expansion header (internal), 1x Micro SD card slot, and 1x Micro-B USB 2.0 for recovery.



With the compact dimensions, design for reliable field installation, and the rich I/O functions, NX211B /NO111B is the best cost-effective choice for AIoT edge computing in the intelligent video analytics applications of Smart Retail, Smart Camera, Smart Medical and Smart City.

Key Industries



AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart Camera

Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.

Specifications

Model

NX211B / NO111B

Type

Box PC

NVIDIA GPU SoC Module Compatibility

NVIDIA® Jetson Xavier™ NX / Nano module

Networking

1x GbE RJ-45

Display Output

3840 x 2160 at 60Hz

Temperature

Operating temperature 0°C~55°C(NX), 0°C~60°C(Nano)

Storage temperature -40°C ~ 85°C

Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs(Internal)

• 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector

• 1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector

USB

1x USB 2.0 Micro-B for recovery

2x USB 3.0 Type-A

Storage

1x micro-SD card slot

Expansion Header (Internal)

20 pins: 2x I2C, 1x UART, 9x GPIOs

Input Power

12V/5A

9V~19V is recommended.

Power Cord

US/JP/EU/UK/TW/AU/CN

Fan Module

Heat sink with fan

Buttons

Power and Recovery

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

PCB/Electronics Mechanical Info

W: 91.4mm x L: 76.6mm x H: 70mm (3.60” x 3.02” x 2.76”)

Weight: 480g

Certifications

CE, FCC, KC

Optional Accessories

Specs

MIPI Camera

For 15 pin MIPI connector:

raspberry pi camera v2

Manufacturer: APPRO.PHO

B-04: IMX179 (8M) MIPI, 1080P (30fps)

C-04: IMX290 (2M) MIPI, 1080P (30fps)

C-05: IMX290 (2M) +ISP (YUV), 1080P (30fps)


For 36 pin MIPI connector:

Manufacturer: APPRO.PHO

B-03: IMX334 (4K) MIPI, 4K (30fps)

A-06: IMX334 (4K) V-by-One® HS x1, 4K (30fps)

*All specifications are subject to change without prior notice.

DOWNLOAD

Datasheet
Driver
User Manual
BSP for Nano
BSP for NX
BSP for TX2 NX
SDK and Capture Studio
BSP

Date : 2022-05-12 00:00:00

Version: EN715-NX-R1.0.16.4.6
OS: L4T_32.6.1 (JetPack 4.6)
Description: Upgrade to L4T_32.6.1 (JetPack 4.6) rev.3
ReadMe

Date : 2021-12-16 00:00:00

Version: EN715-NX-R1.0.15.4.6
OS: L4T_32.6.1 (JetPack 4.6)
Description: Upgrade to L4T_32.6.1 (JetPack 4.6)
ReadMe

Date : 2021-03-22 00:00:00

Version: EN715-NX-R1.0.7.4.5.1 (Beta)
OS: L4T_32.5.1 (JetPack 4.5.1)
Description: Upgrade to L4T_32.5.1 (JetPack 4.5.1)
ReadMe

Date : 2021-03-09 00:00:00

Version: EN715-NX-R1.0.6.4.5 (Beta)
OS: L4T_32.5 (JetPack 4.5)
Description: Upgrade to L4T_32.5 (JetPack 4.5)
ReadMe

Date : 2020-08-06 00:00:00

Version: R1.0.5.4.4 (Beta) for Jetson Xavier NX
OS: L4T_32.4.3 (JetPack 4.4)
Description: First release for Xavier NX
ReadMe

Date : 2022-10-31 00:00:00

User Manual

Date : 2021-12-20 00:00:00

Version: EN715-R1.0.20.4.6
OS: L4T_32.6.1 (JetPack 4.6)
Description: Upgrade to L4T_32.6.1 (JetPack 4.6)
ReadMe

Date : 2021-03-22 00:00:00

Version: EN715-R1.0.18.4.5.1 (Beta)
OS: L4T_32.5.1 (JetPack 4.5.1)
Description: Upgrade to L4T_32.5.1 (JetPack 4.5.1)
ReadMe

Date : 2021-01-04 00:00:00

Version: EN715-R1.0.17.4.4.1
OS: L4T_32.4.4 (JetPack 4.4.1)
Description: Support JetPack 4.4.1
ReadMe

Date : 2020-07-10 00:00:00

Version: EN715-R1.0.13.4.4-DP (Beta)
OS: L4T_32.4.2 (JetPack 4.4)
Description: Upgrade to JetPack 4.4
ReadMe

Date : 2020-06-30 00:00:00

Version: EN715-R1.0.9.4.3
OS: L4T_32.3.1 (JetPack 4.3)
Description: Support raspberry pi v2
ReadMe

Date : 2022-01-20 00:00:00

Product Datasheet
