Carrier Board - EN715

Overview Download
Where to Buy

EN715

Standard Carrier Board for NVIDIA® Jetson™ Nano (Version B01)/TX2 NX/Xavier NX Module

  • Fully support NVIDIA® Jetson Nano™ (Version B01)/TX2 NX/Xavier™ NX module
  • 1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI outputs
  • 2x 2 Lane MIPI CSI-2 camera input
  • 1x 4 Lane MIPI CSI-2 camera input
  • 20-pin Expansion header
  • 1x micro-SD card slot
  • Operating temperature: 0°C ~ 70°C
  • Dimension: W:87mm x L:70.6mm x H: 27.3mm

Overview

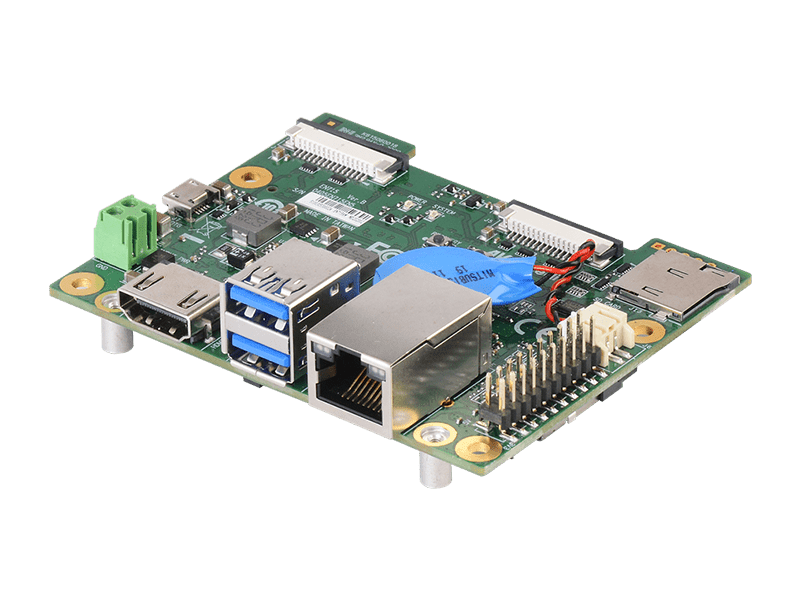

AVerMedia carrier board EN715 is designed for NVIDIA® Jetson Nano™ (Version B01)/ TX2 NX/ Xavier™ NX module and for the industry applications in the environment with the high physical space concern and operation in the temperature range from 0°C to 70°C. It features the very compact dimensions of 70.6mm (L) x 87mm (W) x 27.3mm (H), with four Ø 3.2 mounting holes for the highly reliable field installation.



EN715 can provide the access to a list of rich I/O functions, which includes 2x 2 Lane MIPI CSI-2, 1x 4 Lane MIPI CSI-2 Camera Input, 1x 4Kp60 HDMI output, 2x USB 3.0, 1x GbE RJ-45, 20-pins GPIO expansion, 1x Micro SD card slot, and 1x Micro-B USB 2.0 for recovery. It also comes with a single-mold PCB terminal block module for the easy power connection.



With the compact dimensions, design for reliable field installation, and the rich I/O functions, EN715 is the best cost-effective choice for AIoT edge computing in the intelligent video analytics applications of Smart Retail, Smart Camera, Smart Medical and Smart City.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart Camera

Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.

Specifications

Model

EN715

Type

Carrier Board

NVIDIA GPU SoC Module Compatibility

NVIDIA® Jetson Nano™ (Version B01)/TX2 NX/Xavier™ NX module

Networking

1x GbE RJ-45

Display Output

3840 x 2160 at 60Hz

Temperature

Operating temperature 0°C~70°C

Storage temperature -40°C ~ 85°C

Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs

• 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector

• 1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector

USB

1x USB 2.0 Micro-B for recovery

2x USB 3.0 Type-A

Storage

1x micro-SD card slot

Expansion Header

20 pins: 2x I2C, 1x UART, 9x GPIOs

Input Power

3.5mm Screw Terminal; 9V~19V is recommended.

Buttons

Power and Recovery

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

PCB/Electronics Mechanical Info

W: 87mm x L: 70.6mm x H: 27.3mm (3.43” x 2.78” x 1.07”)

Weight: 70g

Certifications

CE, FCC, KC

Optional Accessories

Specs

NVIDIA® Jetson Series

NVIDIA® Jetson Nano™ (Version B01)/TX2 NX/Xavier™ NX module

Power Adaptor

12V/5A

Power Cord

US/JP/EU/UK/TW/AU/CN

Fan Module

Heat sink with fan

MIPI Camera

For 15 pin MIPI connector:

1.raspberry pi camera v2

2.Manufacturer: APPRO.PHO


B-04: IMX179 (8M) MIPI, 1080P (30fps)

  C-04: IMX290 (2M) MIPI, 1080P (30fps)

  C-05: IMX290 (2M) +ISP (YUV), 1080P (30fps)


For 36 pin MIPI connector:

1.Manufacturer: APPRO.PHO

  B-03: IMX334 (4K) MIPI, 4K (30fps)

  A-06: IMX334 (4K) V-by-One® HS x1, 4K (30fps)

*All specifications are subject to change without prior notice.

DOWNLOAD

Datasheet
Driver
User Manual
BSP for Nano
BSP for NX
BSP for TX2 NX
SDK and Capture Studio
BSP

Date : 2021-11-26 00:00:00

Version: EN715-TX2-NX-R1.0.4.4.6
OS: L4T_32.6.1 (JetPack 4.6)
Description: First version for Jetson TX2 NX module
ReadMe

Date : 2022-05-12 00:00:00

Version: EN715-NX-R1.0.16.4.6
OS: L4T_32.6.1 (JetPack 4.6)
Description: Upgrade to L4T_32.6.1 (JetPack 4.6) rev.3
ReadMe

Date : 2021-12-16 00:00:00

Version: EN715-NX-R1.0.15.4.6
OS: L4T_32.6.1 (JetPack 4.6)
Description: Upgrade to L4T_32.6.1 (JetPack 4.6)
ReadMe

Date : 2021-03-22 00:00:00

Version: EN715-NX-R1.0.7.4.5.1 (Beta)
OS: L4T_32.5.1 (JetPack 4.5.1)
Description: Upgrade to L4T_32.5.1 (JetPack 4.5.1)
ReadMe

Date : 2021-03-09 00:00:00

Version: EN715-NX-R1.0.6.4.5 (Beta)
OS: L4T_32.5 (JetPack 4.5)
Description: Upgrade to L4T_32.5 (JetPack 4.5)
ReadMe

Date : 2020-08-06 00:00:00

Version: R1.0.5.4.4 (Beta) for Jetson Xavier NX
OS: L4T_32.4.3 (JetPack 4.4)
Description: First release for Xavier NX
ReadMe

Date : 2022-10-31 00:00:00

User Manual

Date : 2022-01-20 00:00:00

Product Datasheet

Date : 2021-12-20 00:00:00

Version: EN715-R1.0.20.4.6
OS: L4T_32.6.1 (JetPack 4.6)
Description: Upgrade to L4T_32.6.1 (JetPack 4.6)
ReadMe

Date : 2021-03-22 00:00:00

Version: EN715-R1.0.18.4.5.1 (Beta)
OS: L4T_32.5.1 (JetPack 4.5.1)
Description: Upgrade to L4T_32.5.1 (JetPack 4.5.1)
ReadMe

Date : 2021-01-04 00:00:00

Version: EN715-R1.0.17.4.4.1
OS: L4T_32.4.4 (JetPack 4.4.1)
Description: Support JetPack 4.4.1
ReadMe

Date : 2020-07-10 00:00:00

Version: EN715-R1.0.13.4.4-DP (Beta)
OS: L4T_32.4.2 (JetPack 4.4)
Description: Upgrade to JetPack 4.4
ReadMe

Date : 2020-06-30 00:00:00

Version: EN715-R1.0.9.4.3
OS: L4T_32.3.1 (JetPack 4.3)
Description: Support raspberry pi v2
ReadMe
Show More
×
