Box PC - D315AOB

Overview Reviews Videos Download
Where to Buy

D315AOB

[Preliminary]

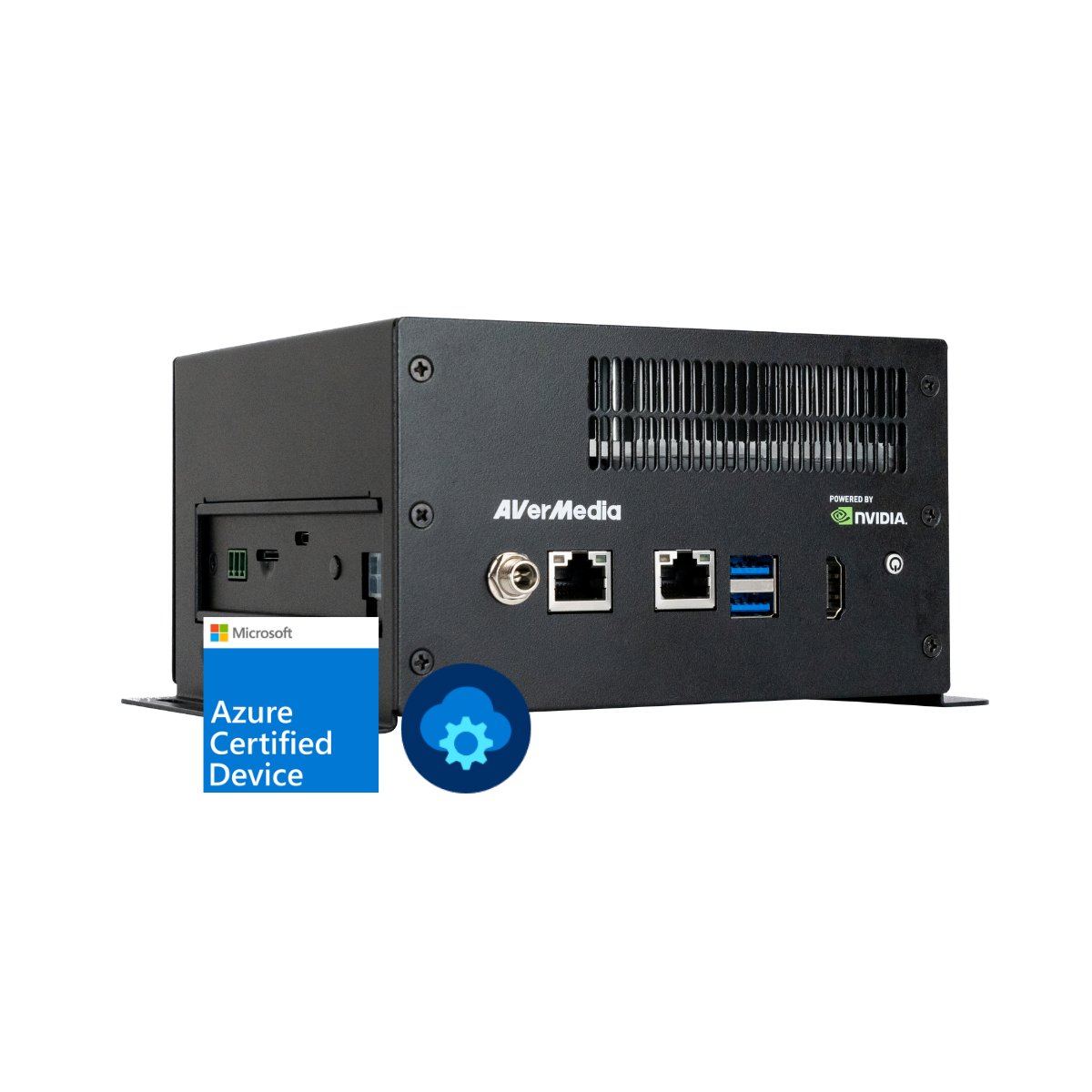

Standard Box PC built with NVIDIA® Jetson AGX Orin™ Module

  • 120-pin high speed connector for MIPI SerDes cameras, such as GMSL2/FPD-link III/V-by-One® HS, to deploy in AMR application

  • 1x GbE & 1x 10G RJ-45 ethernet for dozens of IP cameras streaming simultaneously in smart security application

  • 10GigE Vision camera connector for smart inspection.

  • 1x PCIe slot for multi-function expansion.

  • 1x M.2. E key for Wi-Fi 6E,  1x mPCIe for 4G & 5G with adapter card, and 1x M.2. M key for SSD and capture

  • Operating temperature: -25°C ~ 65°C (TBD)

  • Dimension: 181.5mm(W) x 137mm(L) x 88mm(H) (with mounting hole)

Overview



AVerMedia AI Box PC D315AOB built with NVIDIA® Jetson AGX Orin™ module, which brings next-level AI performance and power-efficient capability for all autonomous machines. This efficient SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.



D315AOB includes a 120-pin high-speed connector for connecting MIPI SerDes cameras, which can fulfill the demand for AMRs. In addition, a sufficient Ethernet bandwidth with 10G is excellent for applying smart security, enabling dozens of IP cameras to stream simultaneously. The connector for the 10GigE Vision Camera is also great for smart inspection. Lastly, with its compact size, D315AOB furnishes a PCIe slot for multi-function expansion and excellent compatibility with Wi-Fi 6 and 5G.

Be Confident in Your Purchase

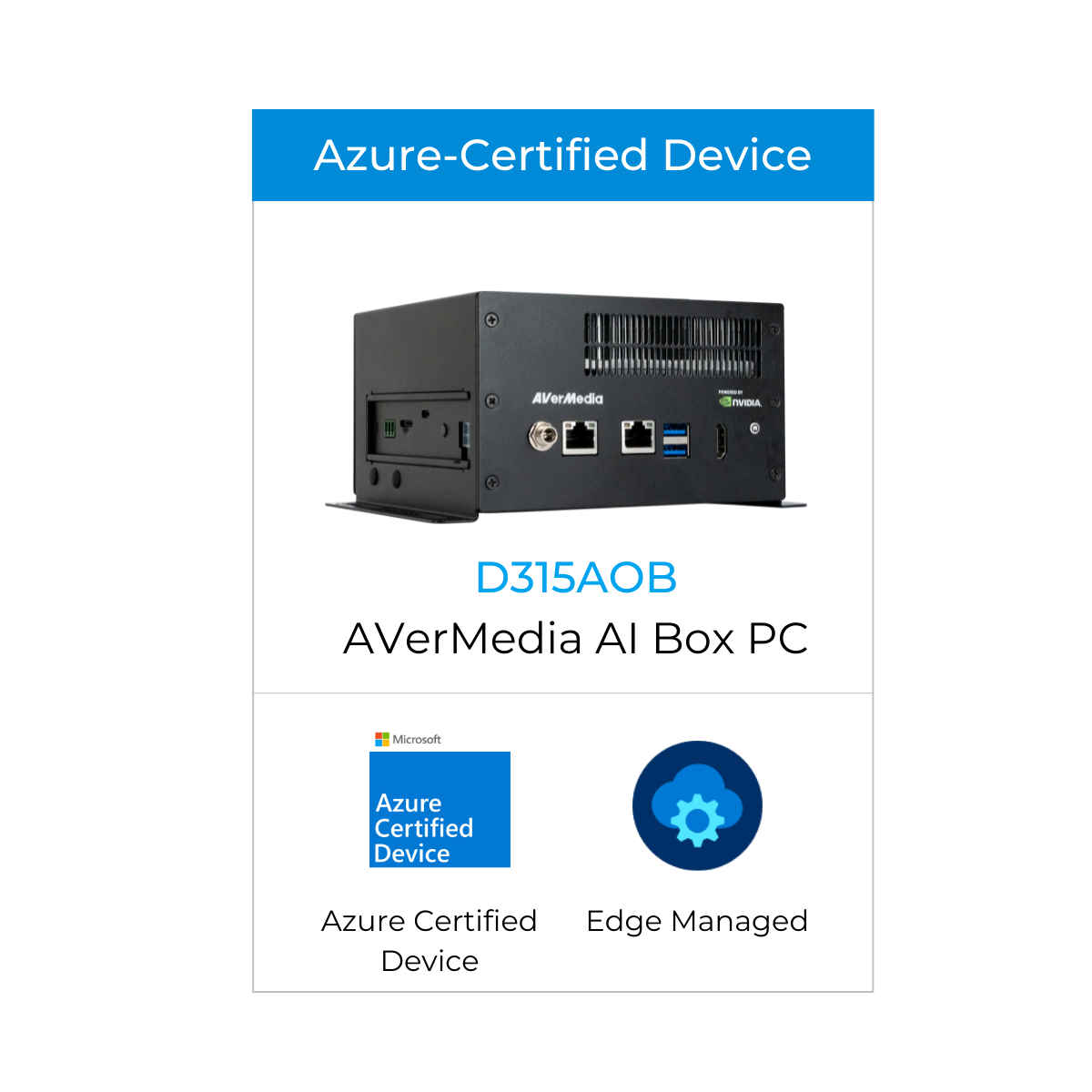

The D315AOB, powered by the Jetson AGX Orin, is a Microsoft Azure certified device and validates that it can connect with Azure IoT Hub and securely provision through the Device Provisioning Service (DPS). This ensures the device's functionality and interoperability to run on Azure.



The advantage of using certified devices

In the pursuit of simplifying and accelerating IoT projects, companies are looking for effective ways to choose and connect the right set of devices, assets, or sensors to the cloud. To jumpstart IoT projects with confidence, customers are looking for certified devices and platforms that are tested for readiness, compatibility, and usability. By choosing an Azure certified device, you can save time and effort on project specs and RFP processes by knowing in advance what devices and offerings will work with Azure IoT.

Key Industries



AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

AMRs

AMRs deployment relies on live camera feeds to provide a rapid and flexible adjustment for the working process and creates a significant productivity growth.

Smart Security

Smart security relies on live camera feeds to benefit from the video analysis to improve and ensure community safety.

Smart Inspection

Smart inspection relies on live camera feeds to benefit from fast and accurate detetion to improve quality control in production.

Specifications

Model

D315AOB

NVIDIA Jetson SoM

NVIDIA® Jetson AGX Orin™ 32GB/ 64GB module

Networking

•1x GbE RJ-45

•1x 10G RJ-45

•1x M.2 E key  (for Wi-Fi 6E)

Display Output

1x HDMI 2.0 (3840x2160 at 60Hz)

Temperature

Operating temperature: -25°C~65°C (TBD)

Storage temperature: -40°C ~ 85°C

Relative humidity: 40 °C @ 95%, Non-Condensing

MIPI & SerDes Camera
(120-pin)

GMSL2/FPD-link III/V-by-One® HS (optional)

USB

•1x USB 2.0 Micro-B for recovery

•2x USB 2.0 Type-A

•2x USB 3.2 Type-A

Audio

Intel HD Audio analog connector

Storage

1x micro-SD card slot

Expansion Header

•40-pin (UART, SPI, CAN, I2C, I2S, GPIOs)
•1x M.2 Key M (for SSD or AVerMedia capture card: CL312H1, CN311-H, CN312SW, CN312MW)
•1x Micro SIM socket
•1x mPCIE (for 4G LTE module or 5G modue via adapter card)
•1x PCIEx16 (only support x8 PCIe lanes)
•1x CAN bus with transceiver
•1x 120-pin (for MIPI SerDes)

Input Power

•DC in jack on board:  54V/2.78A adapter, DC Range 12~54V (7~1.95A)

•ATX 4-pin: 12~54V (10.8~2.4A)

Power Cord

US/JP/EU/UK/TW/AU/CN

Thermal Solution

Fan

Buttons

Power and Recovery

RTC Battery

Support RTC Battery and Battery Life Monitoring by MCU

Dimensions

Fan: 181.5mm (W) x 137mm (L) x 88mm (H) (with mounting hole)

Certifications

CE, FCC, KC

Expandability

Model

Host Interface

Video Interface

Max Input Resolution

CN312MW

M.2 M key 2280

1x SDI; 1x HDMI

2Kp60 in (SDI)
1920 x 1200p60 in (HDMI)
1080p out

CN312SW

M.2 M key 2280

2x SDI

2Kp60 in - 1080p out

CN311-H

M.2 M key 2280

1x HDMI

4096 x 2160p30

CL312H1

PCIe Gen2 x4

2x HDMI

4096 x 2160p30

REVIEWS

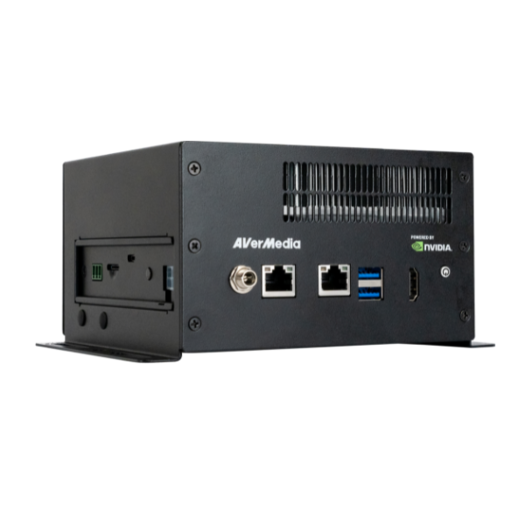

Product of the Week: AVerMedia’s Box PC with NVIDIA® Jetson AGX Orin
