D315AO

[Preliminary]

Engineering Kit built with NVIDIA® Jetson AGX Orin™ Module

120-pin highspeed connector for MIPI SerDes cameras, such as GMSL2/FPD-link III/V-by-One® HS, to deploy in AMR application
1x GbE & 1x 10G RJ-45 ethernet for dozens of IP cameras streaming simultaneously in smart security application
10GigE Vision camera connector for smart inspection.
1x PCIe slot for multi-function expansion.
1x M.2. E key for Wi-Fi 6E, 1x mPCIe for 4G & 5G with adapter card, and 1x M.2. M key for SSD and capture
Operating temperature: -25°C ~ 70°C (TBD)
Dimension: 141.5mm(W) x 133.5mm(L) x 63mm(H)

Overview

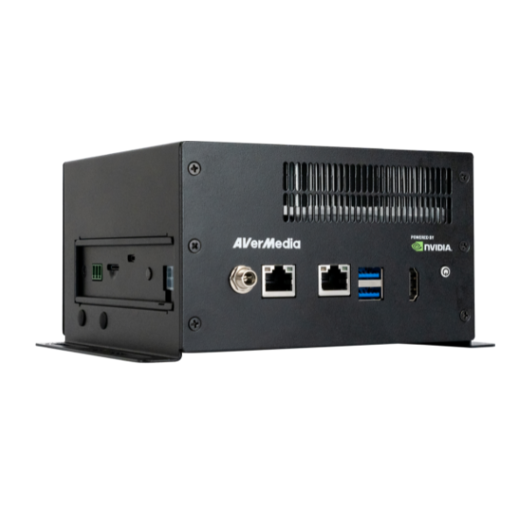

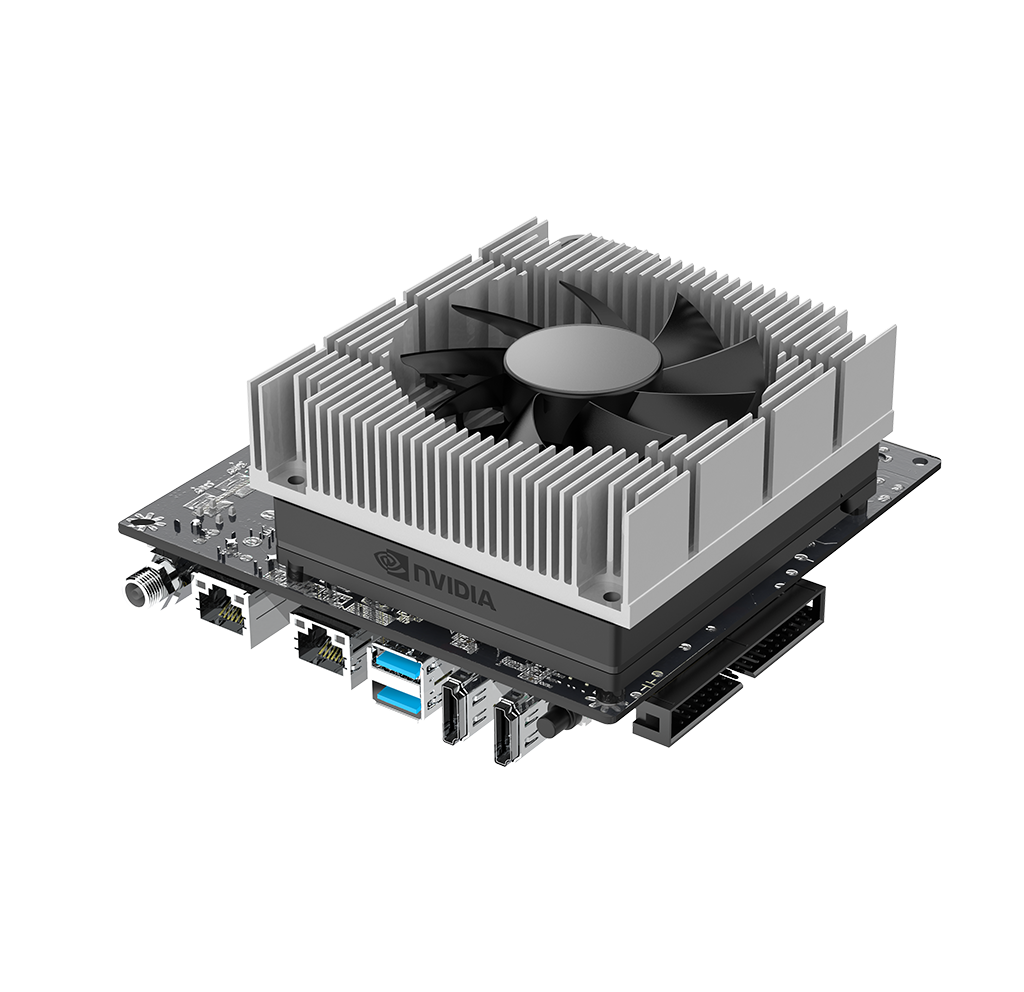

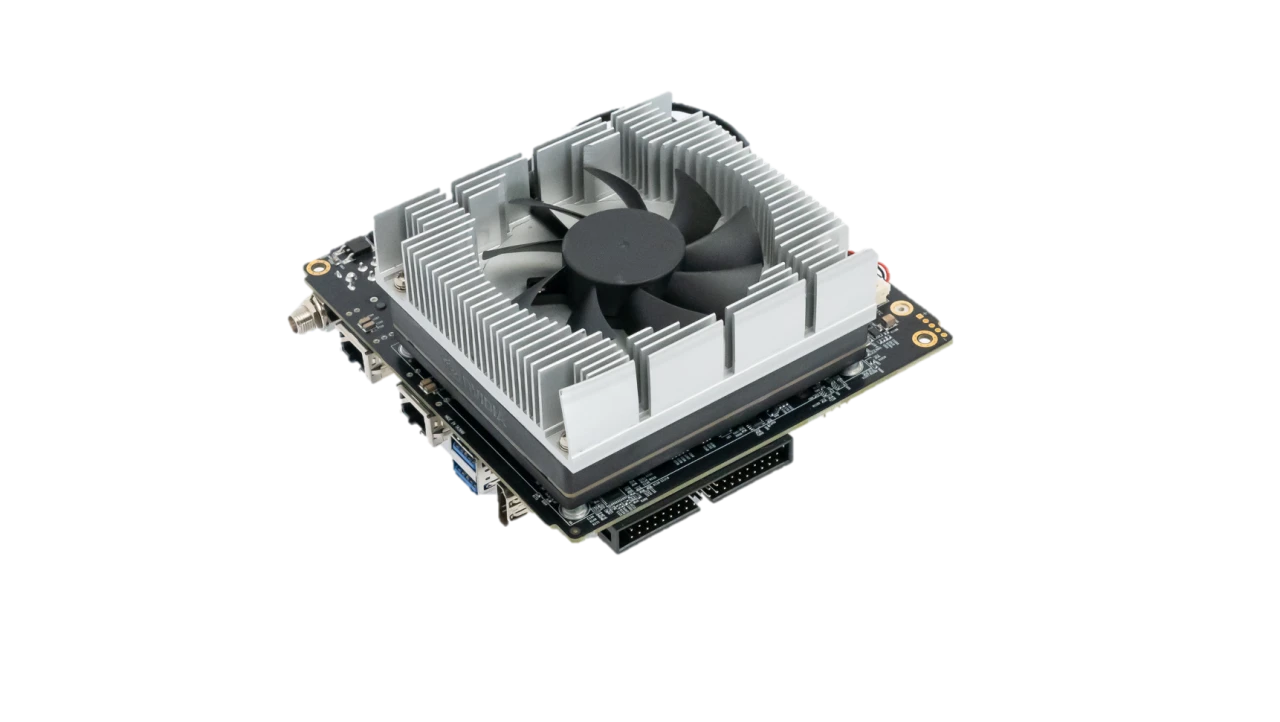

AVerMedia Engineering Kit D315AO built with NVIDIA® Jetson AGX Orin™ module, which brings next-level AI performance and power-efficient capability for all autonomous machines. This efficient SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.

D315AO includes a 120-pin high-speed connector for connecting MIPI SerDes cameras, which can fulfill the demand for AMRs. In addition, a sufficient Ethernet bandwidth with 10G is excellent for applying smart security, enabling dozens of IP cameras to stream simultaneously. The connector for the 10GigE Vision Camera is also great for smart inspection. Lastly, with its compact size, D315 furnishes a PCIe slot for multi-function expansion and excellent compatibility with Wi-Fi 6 and 5G.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

AMRs

AMRs deployment relies on live camera feeds to provide a rapid and flexible adjustment for the working process and creates a significant productivity growth.

Smart Security

Smart security relies on live camera feeds to benefit from the video analysis to improve and ensure community safety.

Smart Inspection

Smart inspection relies on live camera feeds to benefit from fast and accurate detetion to improve quality control in production.

Specifications

Model	D315AO
NVIDIA Jetson SoM	NVIDIA® Jetson AGX Orin 32GB/ 64GB module
Networking	•1x GbE RJ-45 •1x 10G RJ-45 •1x M.2 E key (for Wi-Fi 6E)
Display Output	1x HDMI 2.0 (3840x2160 at 60Hz)
Temperature	Operating temperature -25°C~70°C (TBD) Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
MIPI & SerDes Camera (120-pin)	GMSL2/FPD-link III/V-by-One® HS
USB	•1x USB 2.0 Micro-B for recovery •2x USB 2.0 Type-A •2x USB 3.2 Type-A
Audio	Intel HD Audio analog connector
Storage	1x micro-SD card slot
Expansion Header	•40-pin (UART, SPI, CAN, I2C, I2S, GPIOs) •1x M.2 Key M (for SSD or AVerMedia capture card: CL312H1,CN311-H,CN312SW, CN312MW) •1x Micro SIM socket •1x mPCIE (for 4G LTE module or 5G modue via adapter card) •1x PCIEx16 (only support x8 PCIe lanes) •1x CAN bus with transceiver •1x 120-pin (for MIPI SerDes)
Input Power	•DC in jack on board: 54V/2.78A adapter, DC Range 12~54V (7~1.95A) •ATX 4-pin: 12~54V (10.8-2.4A)
Power Cord	US/JP/EU/UK/TW/AU/CN
Thermal Solution	Fan
Buttons	Power and Recovery
RTC Battery	Support RTC Battery and Battery Life Monitoring by MCU
Dimensions	141.5mm (W) x 133.5mm (L) x 63mm (H) Weight: 720g
Certifications	CE, FCC, KC

Model	Host Interface	Video Interface	Max Input Resolution
CN312MW	M.2 M key 2280	1x SDI; 1x HDMI	2Kp60 in (SDI) 1920 x 1200p60 in (HDMI) 1080p out
CN312SW	M.2 M key 2280	2x SDI	2Kp60 in - 1080p out
CN311-H	M.2 M key 2280	1x HDMI	4096 x 2160p30
CL312H1	PCIe Gen2 x4	2x HDMI	4096 x 2160p30

* All specifications are subject to change without prior notice.
