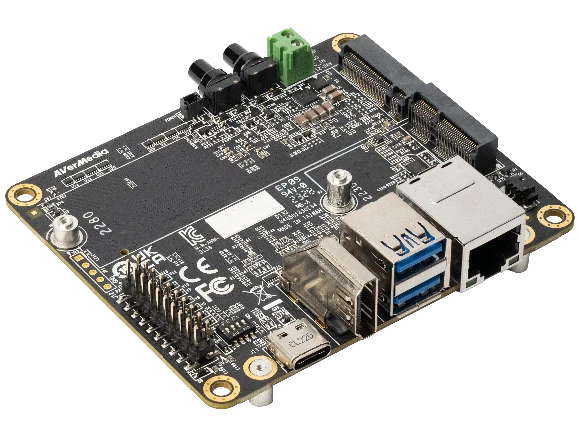

Standard Carrier Board D133 Equips NVIDIA® Jetson™ Orin NX/Orin Nano Module

Applies to NVIDIA® Jetson Orin NX/ Orin Nano module
1 x GbE
2 x USB 3.2
2 x M.2 key for SSD/wifi

1 x HDMI output
20-pin expansion header
Operating temperature: -40°C ~ 85°C (TBD)
Dimension: W: 90mm x L: 76mm x H: 27mm

Overview

AVerMedia’s D133 Carrier Board support powerful NVIDIA® Jetson Orin NX/ Orin Nano modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities

D133 Carrier Board is designed for the industry applications with spatial concern and compact yet efficient for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart Camera

Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.

Specifications

Model	D133
Type	Carrier Board
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson Orin NX/ Orin Nano module
Networking	1 x GbE RJ-45 1 x M.2. key E 2230 for wifi
Display Output	1 x HDMI output 3840 x 2160 at 60Hz for Orin NX, 30Hz for Orin Nano
Temperature	Operating temperature -40°C~85°C (TBD) Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs(Internal)	2 x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch
USB	1 x USB 2.0 type C for recovery 2 x USB 3.2 Type-A
Storage	1x M.2. key M 2280 for NVMe
Expansion Header	20 pins: 2x I2C, 1x UART, 9x GPIOs
Input Power	3.5mm Screw Terminal; 12V/5A, 9V~24V is recommended.
Power Cord	US/JP/EU/UK/TW/AU/CN (optional)
Thermal solution	Fan solution (optional)
Buttons	Power and Recovery
RTC Battery	Support RTC battery and Battery Life Monitoring by MCU
PCB/Electronics Mechanical Info	W: 90mm x L: 76mm (TBD) Weight: 70g (TBD)
Certifications	CE, FCC, KC(TBA)
Package	1x D133 Carrier board DC IN jack cable screws

Optional Accessories	Specs
MIPI Camera	For 22 pin MIPI connector: 1.raspberry pi camera v2/ v3 2.Manufacturer: APPRO.PHO: B-04: IMX179 (8M) MIPI, 1080P (30fps)

*All specifications are subject to change without prior notice.


OS	Version	Release Note
L4T 35.3.1 (Jetpack 5.1.1)	D133ON-R2.0.2.5.1.1 (BETA)	ReadMe
