D131S

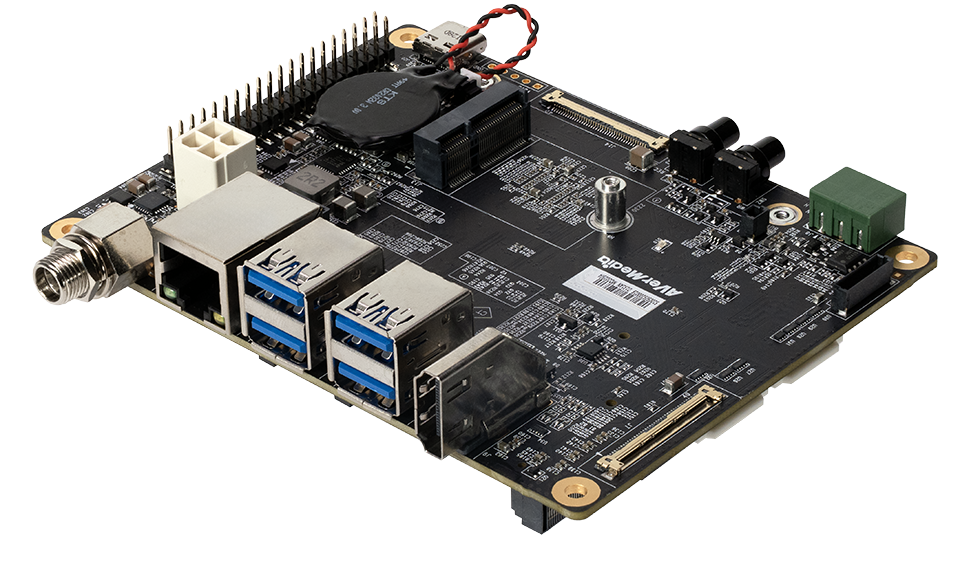

Standard Carrier Board D131S for NVIDIA® Jetson Orin NX/ Orin Nano Module

Support Super Mode

Applies to NVIDIA® Jetson Orin NX / Orin Nano module
Support Super Mode
2 x 4 Lane MIPI CSI-2 Camera input
2 x M.2. for Wi-Fi, SSD and Capture Card
1 x GbE RJ-45 (Option PoE), 40-pin expansion header
4x USB 3.2 (2x native USB 3.2 Gen2 10Gbps, 2x USB 3.2 Gen2 via HUB Shared 10Gbps)
1 x 4Kp60 HDMI output (default) or 1x 40-pin I-PEX 20453 wafer output for DP sub-board (customizable)
Operating temperature: -40°C ~ 65°C (TBD)
Dimension: 113mm(W) x 105mm(L) x 10.8 mm(H) (TBD)
Weight: 100g (TBD)
Support 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon

Overview

AVerMedia’s D131S Carrier Board support powerful NVIDIA® Jetson Orin NX super/Orin Nano super/Orin NX/ Orin Nano modules. This efficient system-onmodule (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.

D131S Carrier Board is designed for the industry applications with spatial concern and compact yet efficient for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MOQ, in addition to NVIDIA’s JetPackTM SDK.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

AMRs

AMRs deployment relies on live camera feeds to provide a rapid and flexible adjustment for the working process and creates a significant productivity growth.

Smart Security

Smart security relies on live camera feeds to benefit from the video analysis to improve and ensure community safety.

Smart Inspection

Smart inspection relies on live camera feeds to benefit from fast and accurate detection to improve quality control in production.

Specifications

Model	D131S
Type	Carrier Board
NVIDIA Jetson SoM	NVIDIA® Jetson Orin NX / Orin Nano module , Support Super Mode
Networking	1x GbE RJ-45 (PoE option) 1xM.2. key E 2230 for Wi-Fi
Display Output	1 x 4Kp60 HDMI output (default) or 1x 40-pin I-PEX 20453 wafer output for DP sub-board (customizable)
Temperature	Operating temperature -40°C~65°C (TBD) Option 0°C~65°C with eDP Sub Board (TBD) Storage temperature -40°C ~ 85°C (TBD) Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs	2x 4 lane MIPI CSI-2, 22 pin FPC 1mm Pitch Connector
USB	1x USB-C for recovery (USB 2.0, Device Mode) 4x USB 3.2 (2x native USB 3.2 Gen2 10Gbps, 2x USB 3.2 Gen2 via HUB Shared 10Gbps)
Storage*	1x M.2. key M 2280 for SSD
Expansion Header	40-pin: 1x UART, 2x SPI, 2x 12C, 1x I2S, 6x GPIOs 1xCAN FD (3-pin terminal block) 1xOOB supported by Allxon Multi function expansion I/F for sub board (PCIe x2+ USB 3.0 Share HUB 10G)
Security	TPM 2.0 supported
Power requirement	Voltage: DC 12~24V Current: DC IN Jack on board: 7A~3.5A Mini-Fit 4P compatible: 10A~5A
Power Cord	19V/4.73A 90W adapter for development and US/JP/EU/UK/TW/AU/CN power cord (optional)
Thermal Solution	Heat sink with fan(optional)
Buttons	Power and Recovery
RTC Battery	Support RTC battery and Battery Life Monitoring by MCU
Dimensions	113mm(W) x 105 mm(L) x 28.53 mm(H) (TBD) Weight: 100 g (TBD)
Certifications	CE, FCC, VCCI, KC (TBD)

Optional Accessories	Specs
MIPI Camera	For 22pin MIPI connector: 1. Raspberry pi camera v2 /raspberry pi camera v3 2. Manufacturer: APPRO.PHO ■ B-04: IMX179 (8M) MIPI, 1080P (30fps)

* D131S have one mSD slot, but NVIDIA Orin NX/Orin Nano doesn’t support mSD function. It’s SOM limitation
** All specifications are subject to change without prior notice.
