Engineering Kit - D131OXB_D131NXB_D131NOB

Overview Videos Download
Where to Buy

D131OXB/D131NXB/D131NOB

[Preliminary]

Engineering Kit built with NVIDIA® Jetson Orin™ NX/ Xavier™ NX/ Nano™ Module

  • 2 x 2 Lane MIPI CSI-2 Camera input/ 1 x 4 Lane MIPI CSI-2 Camera Input
  • 2 x M.2. for Wi-Fi, SSD and Capture card
  • 1 x GbE RJ-45 (Option PoE), 40-pin expansion header
  • 4 x USB 3.1 and 1 x 4Kp60 HDMI output
  • 1 x micro-SD card slot
  • Operating temperature: 0°C ~ 60°C  (TBD)
  • Dimension: 157mm(W) x 105mm(L) x 85mm(H) with stand (without antenna)

Overview

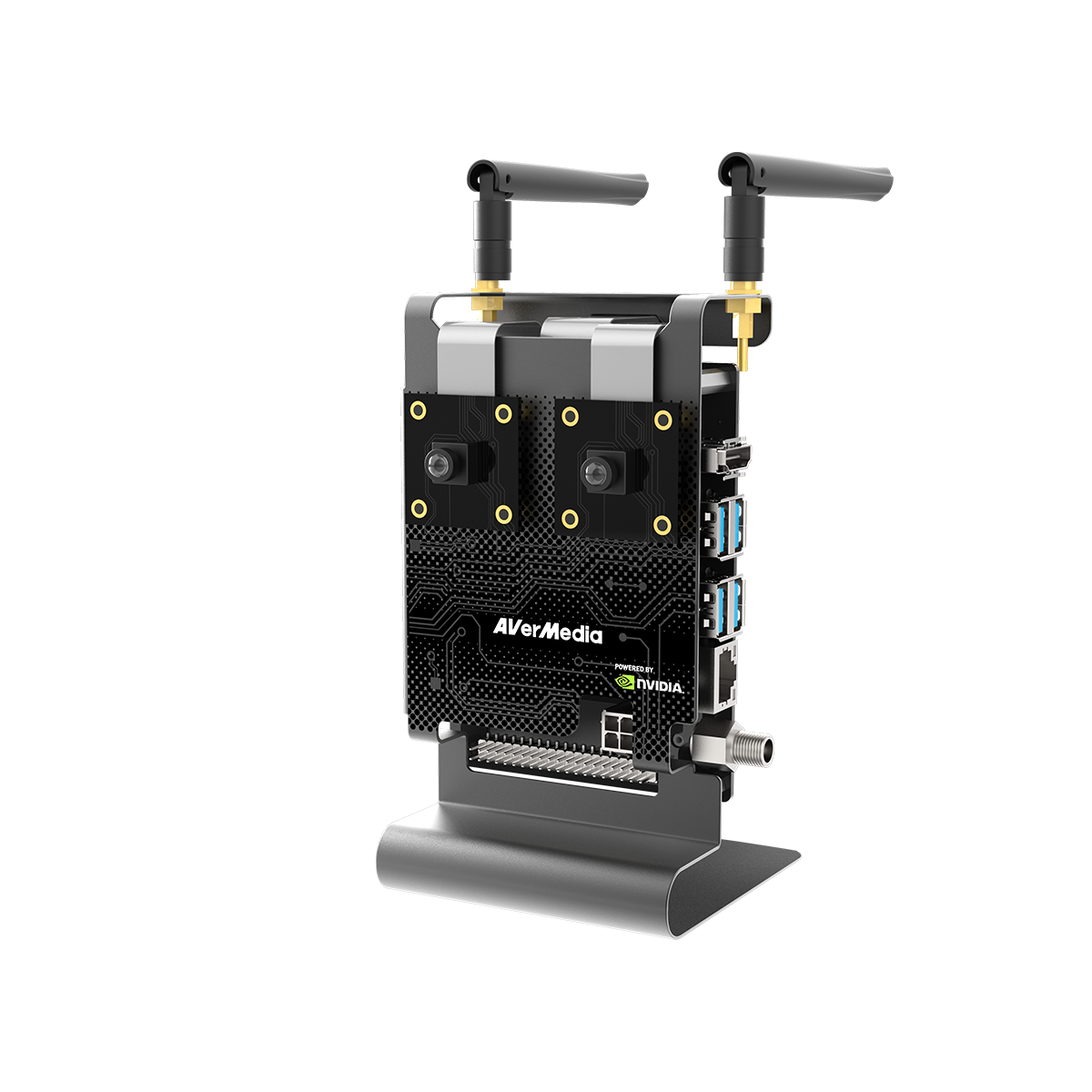

AVerMedia Engineering Kit D131 built with NVIDIA® Jetson Orin™ NX/ Xavier™ NX/ Nano™ Module. This efficient SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.

D131 is a ready-to-use product that integrates cameras, SSD, and thermal solutions to deliver an optimized user experience via its vertical mechanical design. The power input and expanded 40-pin are both designed at the bottom side to avoid cable interference. In addition, the capability of multi-camera support and its compact size design are also notable.

Key Industries



AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

AMRs

AMRs deployment relies on live camera feeds to provide a rapid and flexible adjustment for the working process and creates a significant productivity growth.

Smart Security

Smart security relies on live camera feeds to benefit from the video analysis to improve and ensure community safety.

Smart Inspection

Smart inspection relies on live camera feeds to benefit from fast and accurate detetion to improve quality control in production.

Specifications

Model

D131OXB / D131NXB / D131NOB

NVIDIA Jetson SoM

Jetson Orin NX / Jetson Xavier™ NX / Jetson Nano

Networking

1x GbE RJ-45 (PoE option)

1xM.2. key E 2230 for Wi-Fi (Nano doesn't support)

Display Output

1x HDMI 2.0 (3840 x 2160 at 60Hz)

Temperature

Operating temperature 0°C~60°C (TBD)

Storage temperature -40°C ~ 85°C

Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs

2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector

1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector

USB

1x USB 2.0 Micro-B for recovery

4x USB 3.1 Gen 1 Type A

Storage

1x M.2. key M 2280 for SSD

1x micro-SD card slot (Orin NX doesn't support)

Expansion Header

40-pin:  1x UART, 2x  SPI, 2x 12C, 1x I2S, GPIOs

1x CAN

Input Power

DC in jack on board & ATX 4-pin

12V/5A, 9V~24V is recommended

Power Cord

US/JP/EU/UK/TW/AU/CN

Thermal Solution

Fan

Buttons

Power and Recovery

RTC Battery

Support RTC Battery and Battery Life Monitoring by MCU

Dimensions

157mm(W) x 105mm(L) x 85mm(H) with stand (without antenna)

Certifications

CE, FCC, KC

Package

1 x Carrier Board
1 x NVIDIA® Jetson module + Fan
1 x Stand
1 x Power cord and Adapter set

1 x 256G SSD
2 x APPRO.PHO IMX179 Camera

Model

Host Interface

Video Interface

Max Input Resolution

CN312MW

M.2 M key 2280

1x SDI; 1x HDMI

2Kp60 in (SDI)
1920 x 1200p60 in (HDMI)
1080p out

CN312SW

M.2 M key 2280

2x SDI

2Kp60 in - 1080p out

CN311-H

M.2 M key 2280

1x HDMI

4096 x 2160p30
