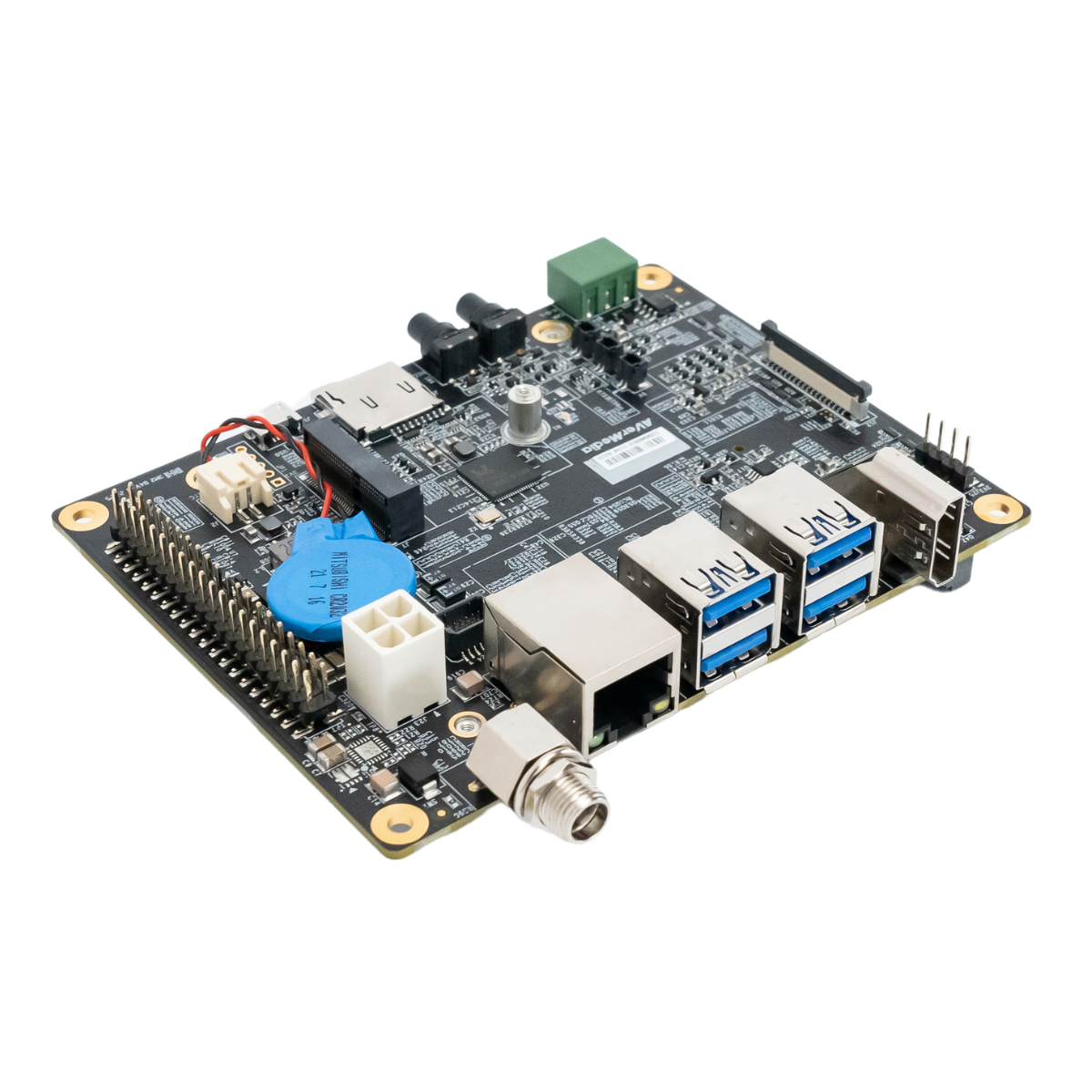

D131

[Preliminary]

Standard Carrier Board D131 for NVIDIA® Jetson Orin NX/ Orin Nano Module

  • 2 x 2 Lane / 1 x 4 Lane MIPI CSI-2 Camera Input
  • 2 x M.2. for Wi-Fi and SSD
  • 1 x GbE RJ-45 (Option PoE), 40-pin expansion header
  • 4 x USB3.2 Gen1 (5G) type A and 1 x HDMI output
  • Operating temperature: 0°C ~ 70°C (TBD)
  • Dimension: 113mm(W) x 105mm(L)  x 28.53 mm(H)
  • Weight: 95g
  • Support 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon

Overview



AVerMedia’s D131 Carrier board equips powerful NVIDIA® Jetson Orin NX/ Orin Nano modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.



AVerAI D131 is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.



AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Key Industries



AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

AMRs

AMRs deployment relies on live camera feeds to provide a rapid and flexible adjustment for the working process and creates a significant productivity growth.

Smart Security

Smart security relies on live camera feeds to benefit from the video analysis to improve and ensure community safety.

Smart Inspection

Smart inspection relies on live camera feeds to benefit from fast and accurate detetion to improve quality control in production.

Specifications

Model

D131

Type

Carrier Board

NVIDIA Jetson SoM

Jetson Orin NX/ Orin Nano module

Networking

1x GbE RJ-45 (PoE option)

1xM.2. key E 2230 for wifi

Display Output

1x HDMI  (3840 x 2160 at 60Hz) for Orin NX

1x HDMI (3840 x 2160 at 30Hz) for Orin Nano

Temperature

Operating temperature 0°C~70°C (TBD)

Storage temperature -40°C ~ 85°C

Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs

•2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector

•1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector

USB

1x USB 2.0 Micro-B for recovery
4x USB 3.2 Gen1 (5G) type A

Storage*

1x M.2. key M 2280 for SSD

Expansion Header

40-pin:  1x UART, 2x  SPI, 2x 12C, 1x I2S, 6x GPIOs

1xOOB supported by Allxon

Input Power

DC IN JACK on board & ATX 4pin

12V/5A, 9V~24V is recommended.

Power Cord

US/JP/EU/UK/TW/CN/AU

Thermal Solution

Fan (optional)

Buttons

Power and Recovery

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

Dimensions

113mm (W) x 105mm (L) x 28.53mm (H)

Weight: 95 g

Certifications

CE, FCC,KC

Optional Accessories

Specs

MIPI Camera

For 15 pin MIPI connector:

1. raspberry pi camera v2/ V3

2. Manufacturer: APPRO.PHO

  • B-04: IMX179 (8M) MIPI, 1080P (30fps)
  • C-04: IMX290 (2M) MIPI, 1080P (30fps)
  • C-05: IMX290 (2M) +ISP (YUV), 1080P (30fps)



For 36 pin MIPI connector:

1.Manufacturer: APPRO.PHO

  • B-03: IMX334 (4K) MIPI, 4K (30fps)
  • A-06: IMX334 (4K) V-by-One® HS x1, 4K (30fps)



* D131 have one mSD slot, but NVIDIA Orin NX/Orin Nano doesn’t support mSD function. It’s SOM limitation
** All specifications are subject to change without prior notice.
