Box PC - D115OXB_D115ONB

Overview Download
Where to Buy

D115OXB/D115ONB

[Preliminary]

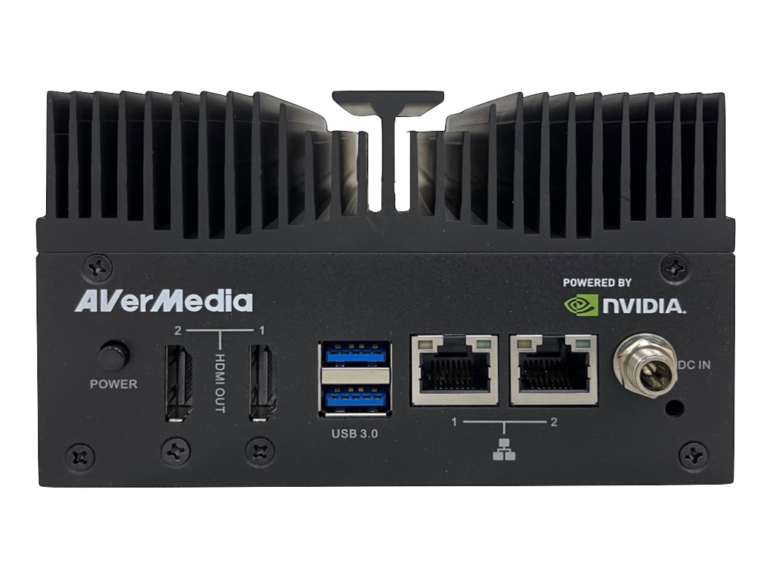

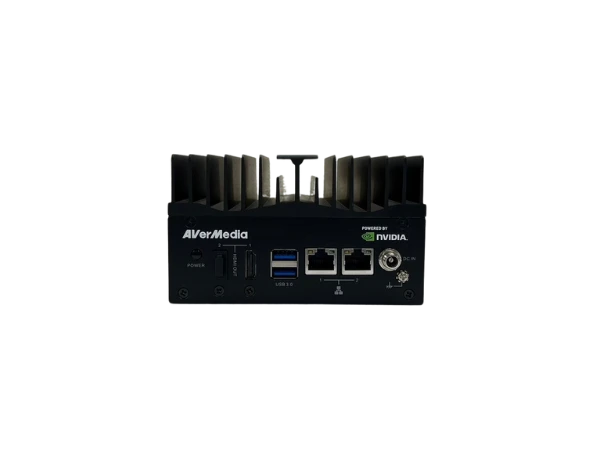

AI Box PC D115OXB/D115ONB Equips NVIDIA® Jetson™ Orin NX/Orin Nano Module

  • Embedded NVIDIA® Jetson Orin NX/Orin Nano module

  • 2x GbE, 3x USB 3.0, 1x HDMI output

  • 20 pins: 2x I2C, 1x UART, 4x GPIOs, 1x CAN (EU terminal block)

  • 2x M.2 for Wi-Fi and SSD

  • Operating temperature: 0°C ~ 60°C (TBD)

  • Dimension: W: 126mm x L: 96mm x H: 74mm

*Please contact your local sales for more information.

Overview



AVerMedia’s D115OXB/D115ONB is the next generation of AI Box PC that is designed with the NVIDIA® Jetson Orin NX/Orin Nano module. Suited for situations with spatial concerns, this high inference AI Box comes in at a compact 126mm (W) x 96mm (L) x 74mm (H) housing. And with a fanless design, the thermally optimized housing is capable of operating at 0 ~ 60°C(TBD) while running virtually silently.



We understand that every situation has a set of unique requirements, and this is the reason the D115OXB/D115ONB is designed with a rich assortment of I/O ports. From 2x 2 Lane MIPI CSI-2 Input (internal), to 1x HDMI output, and 2x GbE RJ-45, you can rest assured that the D115OXB/D115ONB carries key I/O ports required for your unique application. And if you require additional customizations, our customer-dedicated team will be happy to support you with rapid deployment.

Key Industries



AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart Camera

Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.

Specifications

Model

D115OXB-8G/ D115OXB-16G

D115ONB-4G/D115ONB-8G

Type

Box PC

NVIDIA GPU SoC Module Compatibility

NVIDIA® Jetson Orin NX module (8GB / 16GB)

Orin Nano (4G/8G)

Networking

2x GbE RJ-45

1x M.2. key E 2230 for Wi-Fi

Display Output

1x HDMI 4Kp60 for Orin NX/ 4Kp30 for Orin Nano

Temperature

Operating temperature 0°C~60°C(TBD)

Storage temperature -40°C ~ 85°C

Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs

 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector

USB

1x USB 2.0 Micro-B for recovery

3x USB 3.0 Type-A (1x internal)

Storage

1x M.2. key M 2280 for NVMe (256G SSD installed)

Expansion Header (Internal)

20 pins: 2x I2C, 1x UART, 4x GPIOs, 1x CAN (EU terminal block)

Input Power

DC in Jack on board & ATX 4pin

12V/5A, 12V~24V is recommended.

Power Cord

US/JP/EU/UK/TW/CN/AU

Fan Module

Fanless Solution

Buttons

Power and Recovery

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

PCB/Electronics Mechanical Info

W: 126mm x L: 96mm x H: 74mm (4.96” x 3.80” x 2.91”)

Weight: 1kg

Certifications

CE, FCC, KC

Package

1x D115OXB/D115ONB (256G SSD installed)

1x Adapter and Power cable

Optional Accessories

Specs

MIPI Camera

For 15 pin MIPI connector:

raspberry pi camera v2

raspberry pi camera v3

Manufacturer: APPRO.PHO

B-04: IMX179 (8M) MIPI, 1080P (30fps)

 C-04: IMX290 (2M) MIPI, 1080P (30fps)

C-05: IMX290 (2M) +ISP (YUV), 1080P (30fps)



*Please contact your local sales for more information. All specifications are subject to change without prior notice.

DOWNLOAD

Source code
3D drawing
Datasheet
Driver
User Manual
BSP for Nano
BSP for NX
BSP for TX2 NX
SDK and Capture Studio
BSP

Date : 2023-05-23 00:00:00

Product Datasheet

Date : 2023-04-11 00:00:00

User Manual
