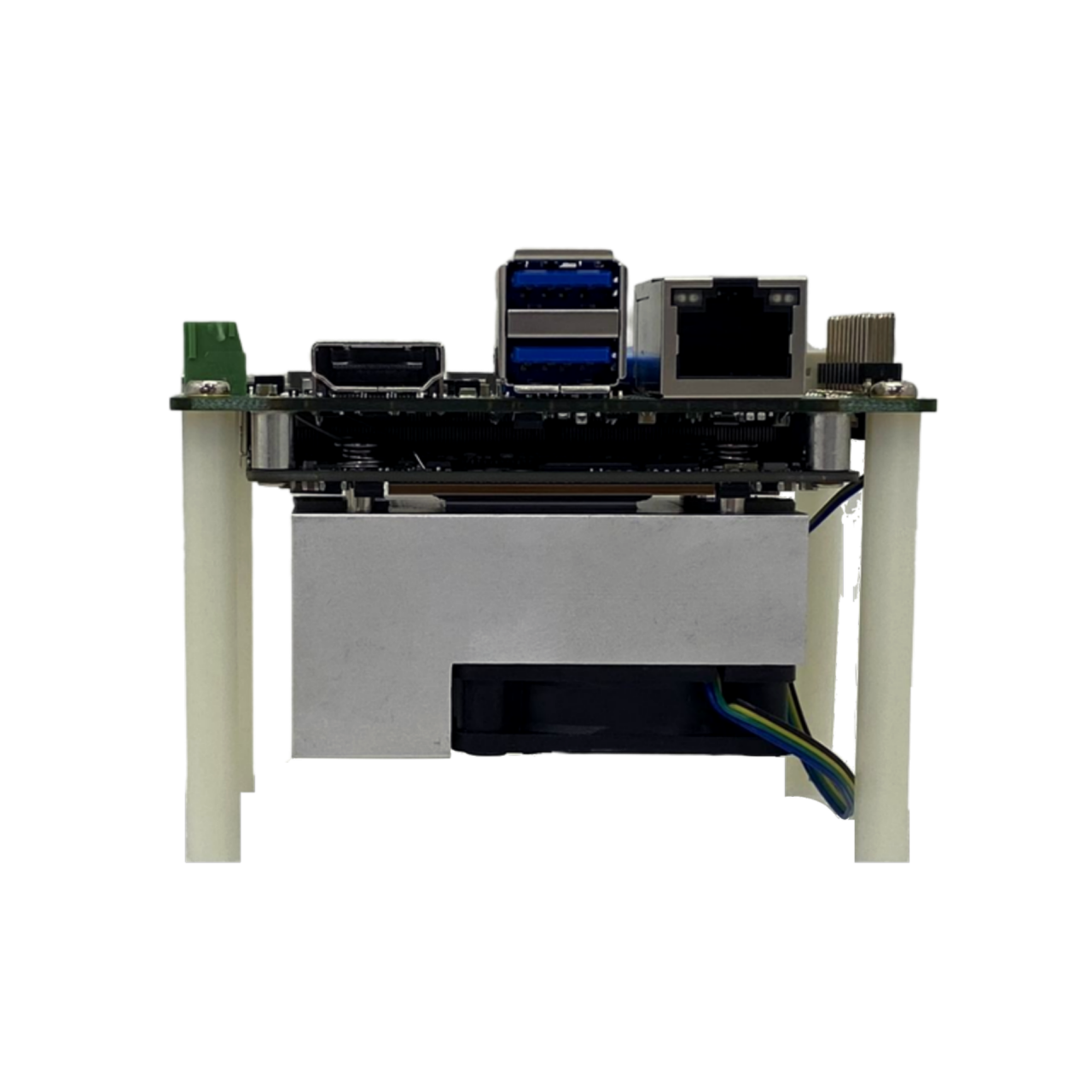

D111NO

Engineering Kit built with NVIDIA® Jetson Nano™ Module

1x GbE Rj-45
2x USB 3.0
1x 4Kp60 HDMI outputs
2x 2 Lane MIPI & 1x 4 Lane MIPI
20-pin Expansion header
1x micro-SD card slot
Operating temperature: 0°C ~ 70°C
Dimension: W:87mm x L:90mm

Overview

AVerMedia Development System D111NO is ideal for AI-centric applications such as smart retail, smart security, and much more. This development system includes a variety of I/O ports to support a wide range of sensors for your current project and to future-proof any ideas, you may have.

This development system also supports the NVIDIA JetPack™ and DeepStream SDKs, as well as CUDA®, cuDNN, and TensorRT™ software libraries. These tools allow a speedy deployment.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart Camera

Smart manufacturing delivers more productivity while enabling safer work environments.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.

Specifications

Model	D111NO
Type	Engineering Kit
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson Nano™ module
Networking	1x GbE RJ-45
Display Output	1x HDMI output 3840 x 2160 at 60Hz
Temperature	Operating temperature 0°C~70°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs	• 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector • 1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector
USB	1x USB 2.0 Micro-B for recovery 2x USB 3.0 Type-A
Storage	1x micro-SD card slot
Expansion Header	20 pins: 2x I2C, 1x UART, 9x GPIOs
Input Power	3.5mm Screw Terminal; 12V/5A
Buttons	Power and Recovery
RTC Battery	Support RTC battery and Battery Life Monitoring by MCU
PCB/Electronics Mechanical Info	W: 87mm x L: 70mm x H: 58.2mm Weight: 175g
Certifications	CE, FCC, KC
Package	1x Carrier Board 1x NVIDIA® Jetson Nano™ module 1 x Fan 1 x Power cable 1x Quick Guide Screws

Optional Accessories
MIPI Camera	For 15-pin MIPI connector: 1. Raspberry pi camera v2 2. APPRO.PHO B-04 IMX179 (8M) MIPI 1080P (30fps) C-04 IMX290 (2M) MIPI 1080P (30fps) C-05 IMX290 (2M) +ISP (YUV) 1080P (30fps) For 36-pin MIPI connector: 1. APPRO.PHO B-03: IMX334 (4K) MIPI 4K (30fps) A-06: IMX334 (4K) V-by-One® HS x1 4K (30fps)

Optional Accessories

MIPI Camera

For 15-pin MIPI connector:

1. Raspberry pi camera v2

2. APPRO.PHO

B-04 IMX179 (8M) MIPI 1080P (30fps)

C-04 IMX290 (2M) MIPI 1080P (30fps)

C-05 IMX290 (2M) +ISP (YUV) 1080P (30fps)

For 36-pin MIPI connector:

1. APPRO.PHO

B-03: IMX334 (4K) MIPI 4K (30fps)

A-06: IMX334 (4K) V-by-One® HS x1 4K (30fps)

*All specifications are subject to change without prior notice.
