Frame Grabber-PCIe - CL511HN

Overview Download
Where to Buy

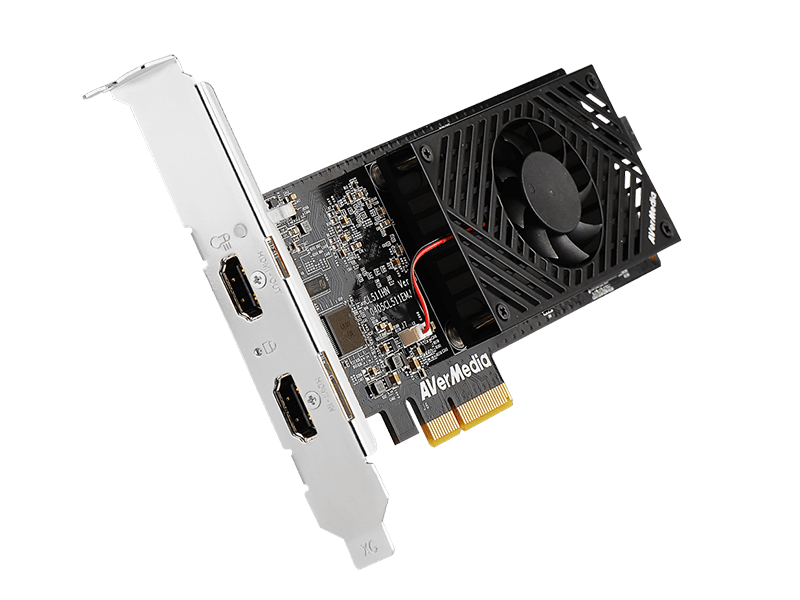

CL511HN

4Kp60 HDR HDMI Low Profile Video Frame Grabber

  • Maximum input resolution up to 4096×2160/60fps
  • Maximum capturing and recording Up to 4096×2160/60fps
  • Realize the industry only “Power-off Pass-through” function
  • Low-profile PCI Express form factor

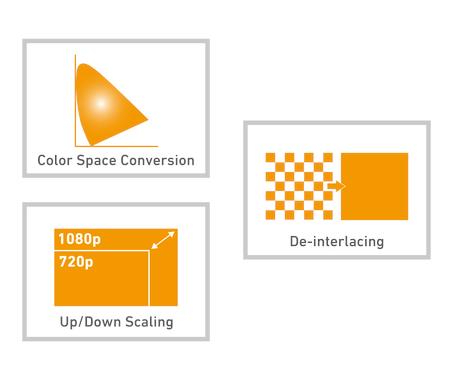

  • Support hardware up/down scaling, de-interlacing, and color space convert
  • Support 10-bit color depth
  • Built-in Signal-lock LED Indicator and RGB LED Temperature Indicator

Overview



AVerMedia AVerGrabber CL511HN, the 4Kp60 HDR HDMI low profile video capture card, is equipped by one HDMI channel with the embedded audio input and supports astounding uncompressed real-time video capturing up to 4096 x 2160 60fps 4K resolution.


At the frame rate of 60 fps, CL511HN can improve the quality of a wide range of media recorded for businesses, universities, broadcasting, and manufacturing facilities, which can eventually provide a more lifelike and smooth video playback experience.

Hardware Video Processing

CL511HN has built-in AVerMedia Video Engine technology which implements most useful video enhancing features to significantly reduce the efforts of CPU and the software development. In other words, this can help our clients to achieve the better cost saving of the hardware platform and the development resource.

Power-off Pass-through



Realize the Industry only “Power-off Pass-through”. Capture images even when your computer is not turned on.

Low Profile Form Factor



Suitable for small-footprint embedded platform, the compact low profile form factor design provides a better use of internal space and reduces cable routing. It increases the use of interior space for a more flexible heat spreading solution.

Built-in Signal-lock LED Indicator and RGB LED Temperature Indicator

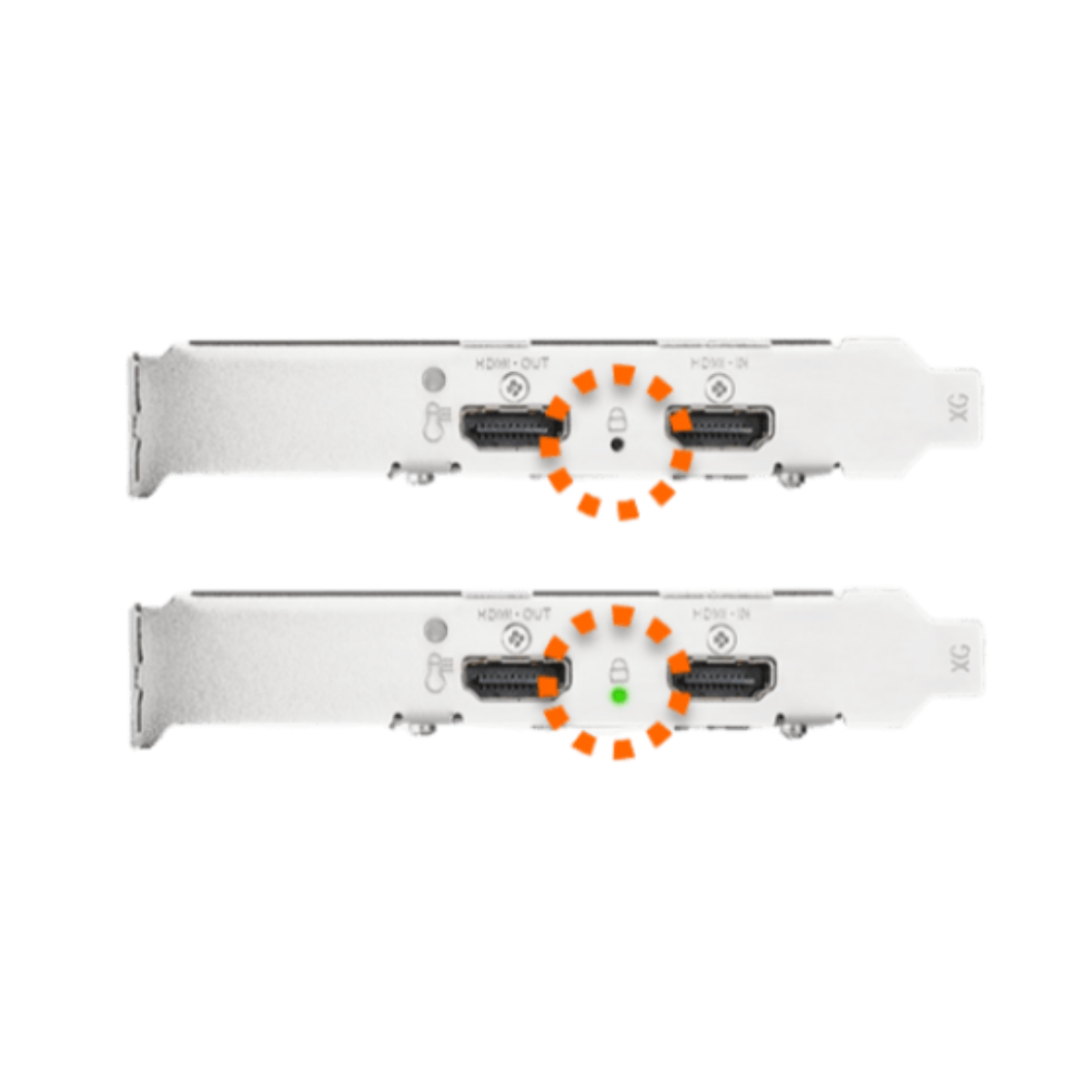

LED for Signal-lock Indicator:

The LED light goes off when HDMI is not plugged in or there is no HDMI signal input. The LED light turns green when HDMI signal is locked (hot-plugging 5V pull high).

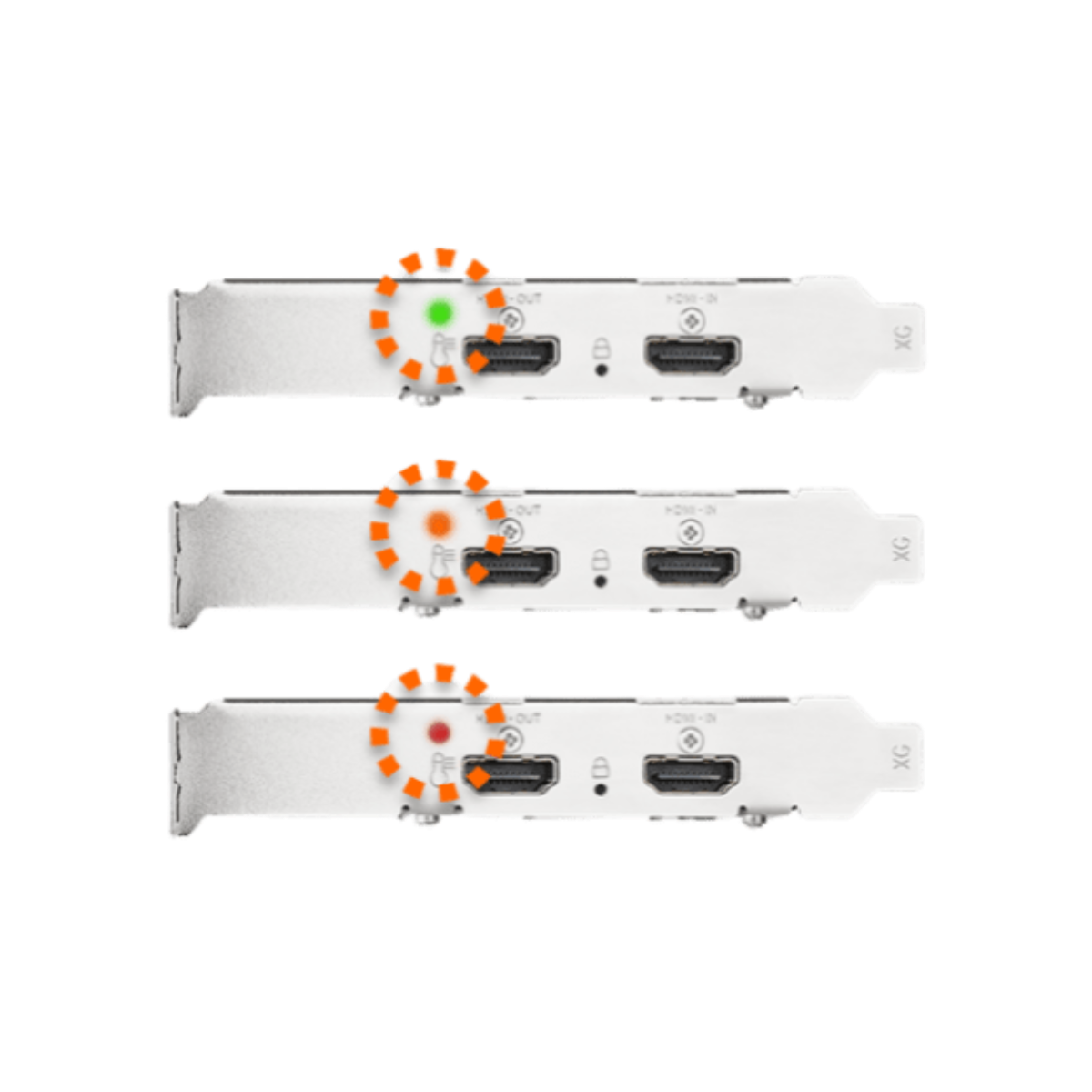

RGB Color LED for Temperature Indicator:

Different temperature ranges of the main chip junction temperature (Tj) will produce a different color LED:

  • Green is indicated for temperatures 0~73°C (32~163.4°F)

  • Orange is indicated for temperatures 73~80°C (163.4~176°F)

  • Red is indicated for temperatures 80~85°C (176~185°F)

  • Blinking red is indicated for temperatures over 85°C (185°F)

Support up to 4:4:4 10-bit RGB and YUV

The 10-bit color depth support is especially useful in the medical imaging applications where images with the slightest color variation may indicate different conditions or stages of diseases. This in turn may assist doctors in accurately diagnosing patient conditions.

Versatile AVerMedia SDK

Industrial customers can develop vertical applications flexibly and efficiently by using AVerMedia’s exclusive designed SDK with features such as device control, media capture, A/V processing and more.

Learn more about AVerMedia SDK.

Specifications

Model

CL511HN

Host Interface

PCIe Gen2 x 4

Audio Interface

HDMI embedded PCM

Audio Format

HDMI embedded audio / 8CH LPCM
Audio

Audio Sampling Rate

32/44.1/48KHz

Connector Type

HDMI Type A

Input Interface

HDMI 2.0, (Pass-Through)

Video Format

YUV444: IYU2, AYUV, V410, Y410

YUV422: YUY2, YUYV, UYVY, V210, Y210

YUV420: I420, NV12, YV12, P010

RGB: RGB565, RGB555, RGB24, RGB32, ARGB

Color Depth

8 bit/10bit

Channel No.

1 channel

Max. Input Resolution

4096x2160 60fps

Max. Recording Resolution

4096x2160 60fps

Encoding Mode

Software Encoding

Multi-Card Support

Yes

Supported OS

Windows 7, 8.1, 10 (32/64-Bit)

Linux (based on V4L2, support x64)

Form Factor

PCIe Low Profile

Dimension (L x W)

151 x 68.7 mm

Power Consumption

15W<

Operating Temperature

0°C ~ 55°C

Operating Humidity

5% - 95% Relative Humidity

Safety Certification

FCC / CE

*All specifications are subject to change without prior notice.

DOWNLOAD

Datasheet
Driver
User Manual
BSP for Nano
BSP for NX
BSP for TX2 NX
SDK and Capture Studio
BSP

Date : 2022-06-30 00:00:00

Version: [Driver] 2.0.64.83
OS: Win10 x64, Win11
Description: Improved HDMI stability

Date : 2021-12-24 00:00:00

Version: [Driver] 2.0.64.82
OS: Win 11 x64
Description:
*Improved performance (available with FPGA version 19121701)
*Improved HDMI stability
*Fix HDR RGB24 color abnormal
*Fix black image if PC resume from S3
*Fix audio fail in YUV420 format
*Fix audio fail when switching between different source

Date : 2020-11-25 00:00:00

Version: [Linux Driver]2.0.1
OS: Ubuntu 20.04/18.04/16.04 kernel 5.4.0-4.4.0
Description: Support users to complie driver by themselves
                          *Used script insmod.sh and insmod_nosignal.sh to contrl the Driver whether supports to output no signel image
                          *Support colorspace YV12/NV12/BGR24

Date : 2021-12-24 00:00:00

Version: AVerMedia SDK v1.2.1.65 & Capture Studio v1.5.1.56
OS: Win7/8.1/10 x86 and x64, Win11 x64
Description: Support Win11

Date : 2019-07-18 00:00:00

Version: [SDK] 1.2.1.29
OS: Win7/8.1/10 x64、x86
Description: First Release for HDR preview and record

Date : 2019-05-14 00:00:00

Product Datasheet
Show More
×
