CL312H1

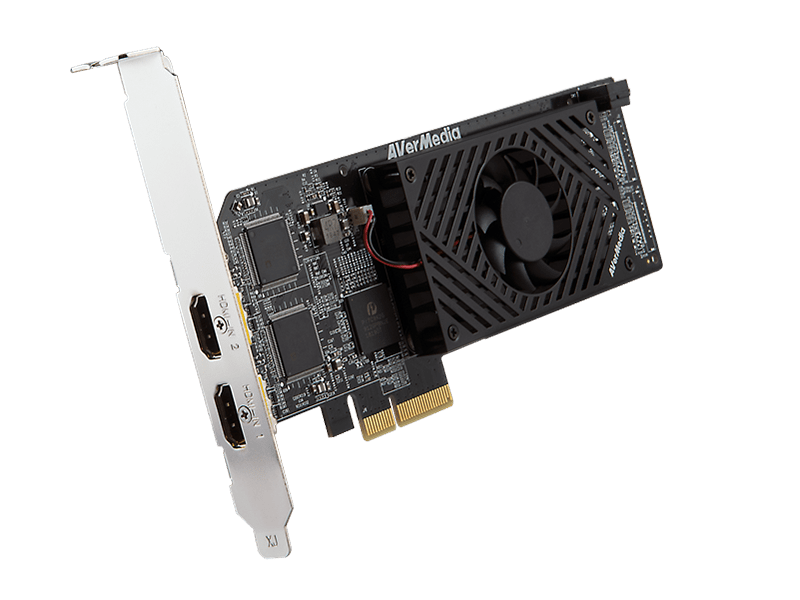

4Kp30 HDMI 2-Channel Low Profile Video Frame Grabber

  • Maximum input resolution up to 4096×2160/30fps

  • Low-profile PCI Express form factor

  • Reduce the capture latency to shorten the time required for a full frame of image to be captured

  • Support hardware up/down scaling, de-interlacing, and color space convert

  • Support 10-bit color depth

  • For 4-channel model: CL314H1

Overview



AVerMedia CL312H1, the 4Kp30 HDMI 2-channel low profile video capture card, is equipped by four HDMI channels with the embedded audio input and supports astounding uncompressed real-time video capturing up to 4096×2160 30fps resolution.



CL312H1 can improve the quality of a wide range of media recorded for businesses, universities, broadcasting, and manufacturing facilities, which can eventually provide a more lifelike and smooth video playback experience.

Hardware scaling, de-interlacing, and color space conversion

With the AVerMedia Video Engine Technology inside, it can perform various video processing tasks such as frame rate conversion, hardware up/down scaling, de-interlacing, and so on without consuming the computing power of the target platform.

Improved Quality and Reliability



With the powerful FPGA-based design, the CL312H1 is able to achieve a better performance and provide more improved capture quality and reliability.

Low Profile Form Factor



Suitable for small-footprint embedded platform, the compact low profile form factor design provides a better use of internal space and reduces cable routing. It increases the use of interior space for a more flexible heat spreading solution.

Hardware Video Processing



CL312H1 has built-in AVerMedia Video Engine technology which implements most useful video enhancing features to significantly reduce the efforts of CPU and the software development. In other words, this can help our clients to achieve the better cost saving of the hardware platform and the development resource.

Support up to 4:4:4 10-bit RGB and YUV

The 10-bit color depth support is especially useful in the medical imaging applications where images with the slightest color variation may indicate different conditions or stages of diseases. This in turn may assist doctors in accurately diagnosing patient conditions.

Versatile AVerMedia SDK

Industrial customers can develop vertical applications flexibly and efficiently by using AVerMedia’s exclusive designed SDK with features such as device control, media capture, A/V processing and more.



Learn more about AVerMedia SDK.

Specifications

Model

CL312H1

Host Interface

PCIe Gen2 x 4

Audio Interface

HDMI embedded PCM

Audio Format

Embedded HDMI, PCM

Audio Sampling Rate

32/44.1/48KHz

Connector Type

HDMI Type A

Input Interface

HDMI*2 (HDMI 1.4a)

Video Format

YUV444: IYU2, AYUV, V410, Y410

YUV422: YUY2, YUYV, UYVY, V210, Y210

YUV420: I420, NV12, YV12

RGB: RGB565, RGB555, RGB24, RGB32, ARGB

Color Depth

8 bit/10bit

Channel No.

2 channels

Max. Input Resolution


4096 x 2160 @ 30fps (by pass)

Max. Recording Resolution

2-CH 4096x2160 30fps (by pass)

Encoding Mode

Software Encoding

Multi-Card Support

Yes

Supported OS

Windows 7, 8.1, 10 (32/64-Bit) Linux Kernel 2.6.14 and above (32/64-bit)

Form Factor

PCIe Low Profile

Dimension (L x W)

180 x 68.78 mm

Power Consumption

16W

Operating Temperature


0°C ~ 60°C

Operating Humidity

5% - 80% Relative Humidity

Safety Certification

FCC / CE

*All specifications are subject to change without prior notice.

DOWNLOAD

Datasheet
Driver
User Manual
BSP for Nano
BSP for NX
BSP for TX2 NX
SDK and Capture Studio
BSP

Date : 2021-12-24 00:00:00

Version: AVerMedia SDK v1.2.1.65 & Capture Studio v1.5.1.56
OS: Win7/8.1/10 x86 and x64, Win11 x64
Description: Support Win11

Date : 2019-08-29 00:00:00

Version: [SDK] 1.2.1.32
OS: Win7/8.1/10 x64、x86
Description: First Release

Date : 2021-02-23 00:00:00

Version: [Linux Driver] 2.0.8
OS: Ubuntu 20.04/18.04/16.04 kernel 5.4.0-4.15.0
        TegraOS kernel 4.4.0
Description: Support users to complie driver by themselves

Date : 2020-03-23 00:00:00

Version: [Linux Driver] 1.0.0055
OS: Ubuntu 18.04 kernel 4.18.0-25
Description: Support two channel HDMI input ports

Date : 2019-08-29 00:00:00

Version: [Driver] 8.0.0.21
OS: Win7/8.1/10 x86
Description: First Release

Date : 2019-08-29 00:00:00

Version: [Driver] 8.0.64.21
OS: Win7/8.1/10 x64
Description: First Release

Date : 2019-08-01 00:00:00

Product Datasheet
Show More
×
