Frame Grabber-PCIe - CL311-MN

Overview Download
Where to Buy

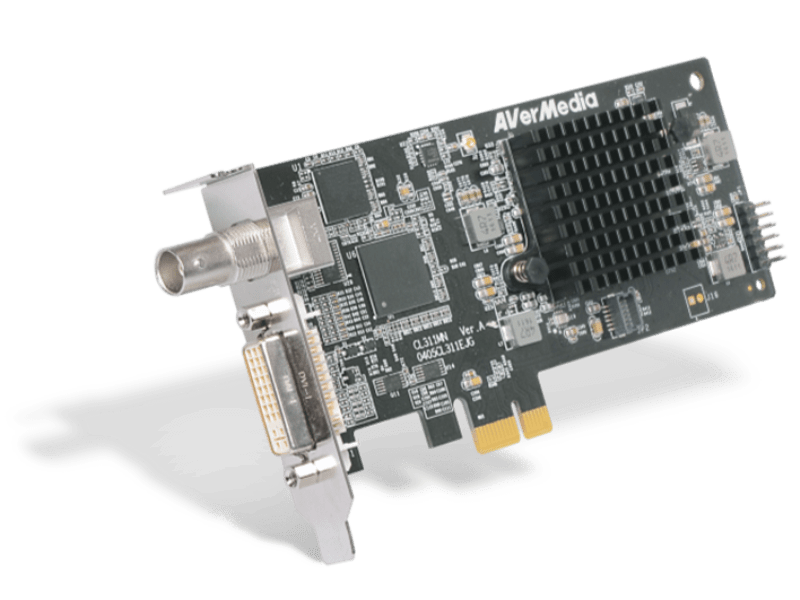

CL311-MN

1080p60 HDMI PCIe Video Frame Grabber

  • Max. capturing/ recording 1920 x 1080 60fps

  • SDI/ HDMI/ DVI/ VGA video input interface

  • Windows DirectShow Compatible

  • Specifically designed SDK

  • Embedded SDI/ HDMI

Overview



AVerMedia CL311-MN is a low-profile PCI Express capture card compatible with SDI/ HDMI/ DVI/ VGA sources. It supports 60fps full HD video capture that is ideal for monitoring, archiving, analyzing, while offering more flexibility and possibilities.

All-Around Industrial Imaging Solution



Endowed with a variety of digital and analog interfaces, it is ideal for industrial and commercial markets such as data recorder, medical imaging, machine vision and other industrial imaging applications.

Low Profile Form Factor



The compact low profile form factor design reduces cable routing and increases the use of interior space for a more flexible heat spreading solution.

Support up to 4:4:4 10-bit RGB and YUV

CL311-MN can support up to 4:4:4 10 bit RGB and YUV, meaning it can capture colors across the full color spectrum for richer and brighter image quality. The 10-bit color depth support is especially useful in the medical imaging applications where images with the slightest color variation may indicate different conditions or stages of diseases. This in turn may assist doctors in accurately diagnosing patient conditions.

Versatile AVerMedia SDK

Industrial customers can develop vertical applications flexibly and efficiently by using a specifically designed SDK, with features such as device control, media capture, A/V processing, and more.


Learn more about AVerMedia SDK.

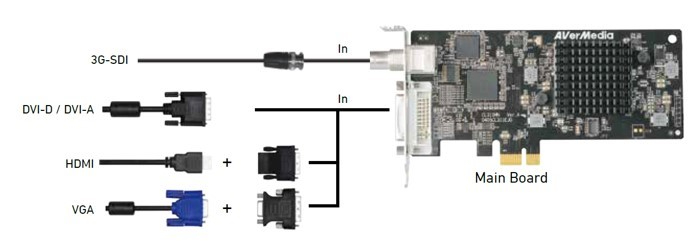

Connection Diagram

Specifications

Model

CL311-MN

Host Interface

PCIe Gen2 x1

Audio Interface

SDI, HDMI

Audio Format

Embedded SDI, HDMI; PCM

Audio Sampling Rate

HDMI: 32KHz, 44.1KHz, 48KHz, 16bit

Connector Type

BNC for SDI

DVI-I for HDMI/DVI/VGA

Video Input Interface

SDI/ HDMI/ DVI/ VGA

Video Format

YUV444: IYU2, AYUV, V410, Y410

YUV422: YUY2, YUYV, UYVY, V210, Y210

YUV420: I420, NV12, YV12

RGB: RGB565, RGB555, RGB24, RGB32, ARGB

Color Depth

8-bit/ 10-bit

Channel No.

1 Ch

Max. Input Resolution

SDI:

1920x1080p, 1920x1080i, 1280x720p, 720x576p, 720x480p, 720x576i, 720x480i


HDMI:

1920x1080p, 1920x1080i, 1280x720p, 720x576p, 720x480p, 640x480p


VGA:

1920x1200p, 1920x1080p, 1680x1050p, 1600x1200p, 1600x900p, 1440x900p, 1400x1050p,

1360x768p, 1280x1024p, 1280x960p, 1280x800p, 1280x768p, 1280x720p, 1152x864p, 1024x768p,

800x600p, 720x576p, 720x480p, 720x400p, 640x480p

Max. Record Resolution

1920x1200 @ 60 fps

1920x1080 @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps

1680x1050 @ 60 fps

1600x1200 @ 60 fps

1600x900 @ 60 fps

1440x900 @ 60 fps

1440x576 @ 60 fps

1440x480 @ 60 fps

1400x1050 @ 60 fps

1360x768 @ 60 fps

1280x1024 @ 60 fps

1280x960 @ 60 fps

1280x800 @ 60 fps

1280x768 @ 60 fps

1280x720 @ 50 / 59.94 / 60 fps

1152x900 @ 60 fps

1152x864 @ 60 fps

1024x768 @ 60 / 70 / 75 / 85 fps

800x600 @ 56 / 60 / 72 / 75 / 85 fps

720x576 @ 50 fps

720x480 @ 59.94 / 60 fps

720x400 @ 60 fps

702x576 @ 60 fps

640x480 @ 59.94/60 fps

Encoding Mode

Software Encoding

Multi-Card Support

Yes

Supported OS

Windows 7/ 8.1/ 10 (32/ 64 bits)

Linux (based on V4L2, support x86, x64)**

Form factor

PCIe Low Profile

Dimension (L x W)

138 x 64.3 mm

Power Consumption

5W

Operating Temperature

0°C ~ 50°C

Operating Humidity

5% ~ 80% Relative Humidity

Safety Certification

FCC/ CE


Ordering Information

CL311-MN

•Main Board: PCIe Low Profile Full HD 60fps multi-interface Capture Card

Accessories

•DVI to HDMI connector

•DVI to VGA connector

SDK Kits

•SDK Basic

•SDK Pro

•SDK Premium Add-on Kits

*All specifications are subject to change without prior notice.

** Linux Services
‧ For driver availability, please contact support
‧ Driver customization service by request

DOWNLOAD

Datasheet
Driver
User Manual
BSP for Nano
BSP for NX
BSP for TX2 NX
SDK and Capture Studio
BSP

Date : 2021-12-24 00:00:00

Version: AVerMedia SDK v1.2.1.65 & Capture Studio v1.5.1.56
OS: Win7/8.1/10 x86 and x64, Win11 x64
Description: Support Win11

Date : 2021-02-23 00:00:00

Version: [Linux Driver]2.0.8
OS: Ubuntu 20.04/18.04/16.04 kernel 5.4.0-4.15.0
        TegraOS kernel 4.4.0
Description: Support users to complie driver by themselves

Date : 2020-09-07 00:00:00

Version: [Linux Driver]2.0.3
OS: Ubuntu 20.04/18.04/16.04 kernel 5.4.0-4.15.0
Description: Support users to complie driver by themselves

Date : 2018-08-06 00:00:00

Version: 3.0.x.6
OS: Win7 x64, Win8.1 x64, Win10 x64
Description: Win10 WHQL

Date : 2018-08-06 00:00:00

Version: 3.0.x.6
OS: Win7 x86, Win8.1 x86, Win10 x86
Description: Win10 WHQL

Date : 2022-11-01 00:00:00

Product Datasheet
Show More
×
