Frame Grabber-Mini - C351W

Overview Download
Where to Buy

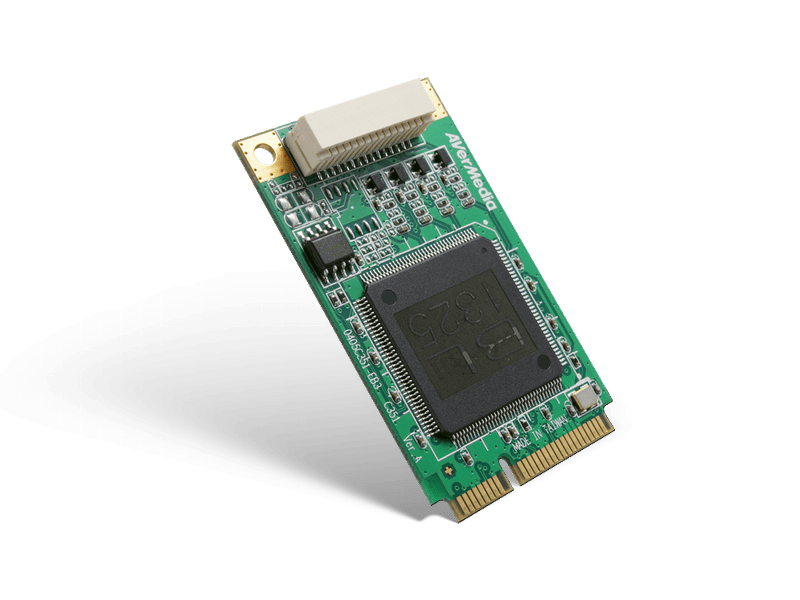

C351W

SD Quad-Channel Mini PCIe Video Frame Grabber

  • Supports extended operating temperatures from -40 to 85°C

  • Video capture with composite input

  • 4-channel concurrent capture solution

  • Standard minicard dimensions

  • Mainstream programming languages supported

  • DirectShow compatible

Overview



The DarkCrystal SD Capture Mini-PCIe Quad simultaneously preserves up to four channels from multiple composite input sources, reducing system costs. DarkCrystal SD Capture Mini-PCIe Quad makes use of exclusive hardware design guarantying fast response and solid performance for high-density SD capture or encoding demands.

Wide Temperature Range



AVerMedia products are guaranteed to meet the highest standards to ensure performance under wide temperature ranges through extended life cycles. AVerMedia’s extended temperature capture line successfully operates at temperatures from -40°C to 85°C (-40°F to 185°F).



Our design and testing procedures meet stringent requirements resulting from the use of extended-temperature-grade components, on-board soldering of critical components, detailed engineering designs, and certified testing under harsh conditions. These thermal designs offer operational flexibility perfectly suited for rugged and industrial applications, including medical, industrial automation, factory automation, in-vehicle, and much more.

4-Channel Simultaneous Video Capture



The DarkCrystal SD Capture Mini-PCIe Quad simultaneously preserves up to 4 channels from multiple composite input sources, reducing system costs.

Compact Design



The DarkCrystal SD Capture Mini-PCIe Quad offers a fast response and solid performance, all in a small form factored design.

Versatile AVerMedia SDK

What’s more, AVerMedia makes available a comprehensive and powerful SDK supporting multiple programming languages so you can easily build the features you need.

Edit Button

Specifications

Model

C351W

Module Type

PCI Express Minicard

Input

4-ch Composite

Audio (L/R)

Video Resolution

NTSC (29.97Hz): 720 x 480, 640 x 480, 360 x 240, 320 x 240, 180 x 120, 160 x 120

PAL (25Hz): 720 x 576, 640 x 480, 360 x 288, 180 x 144

Color Adjustment

Brightness, Contrast, Hue (NTSC only), Saturation

Operating Environment

Temperature: -40°C to +85°C

Humidity: 0 to 90% RHNC

Storage Environment

Temperature: -50°C to +85°C

Humidity: 0 to 90% RHNC

Power Requirement

1.13W

Dimensions (L x W)

50.95 x 30mm






System Requirements

CPU

Intel® Pentium®4 3.0 GHz

AMD AthlonTM 64 3200+

Memory

512 MB RAM

VGA

VGA card with support for DirectX9.0c or above

Sound Card

Yes

Supported OS

Windows 7/8.1/10 (32/64 bits), Linux (32/64 bits)**

*All specifications are subject to change without prior notice.

** Linux Services
‧ For driver availability, please contact support
‧ Driver customization service by request

DOWNLOAD

Datasheet
Driver
User Manual
BSP for Nano
BSP for NX
BSP for TX2 NX
SDK and Capture Studio
BSP

Date : 2021-12-24 00:00:00

Version: AVerMedia SDK v1.2.1.65 & Capture Studio v1.5.1.56
OS: Win7/8.1/10 x86 and x64, Win11 x64
Description: Support Win11

Date : 2019-07-12 00:00:00

Product Datasheet

Date : 2021-12-24 00:00:00

Version: 1.1.64.52
OS: Win10 x64
Description: Win10 WHQL

Date : 2021-12-24 00:00:00

Version: 1.1.0.52
OS: Win10 x86
Description: Win10 WHQL
