Box PC - AG411B

Overview Videos Download
Where to Buy

AG411B

Standard Box PC AG411B equips NVIDIA® Jetson™ AGX Xavier™ or Xavier™ Industrial Module

  • Embedded NVIDIA® Jetson AGX Xavier™ or Xavier™ Industrial 32GB / 64GB* module

  • 2x M.2 Key M 2280 or 3x mPCIe alternatively

  • 1x M.2 Key E 2230 for Wi-Fi module

  • 1x M.2 Key M 2280 for NVMe

  • 2x GbE, 2x USB 3.0, 2x 4Kp60 HDMI output

  • 1x CAN bus with transceiver

  • Wide input voltage: 12~54V DC Input

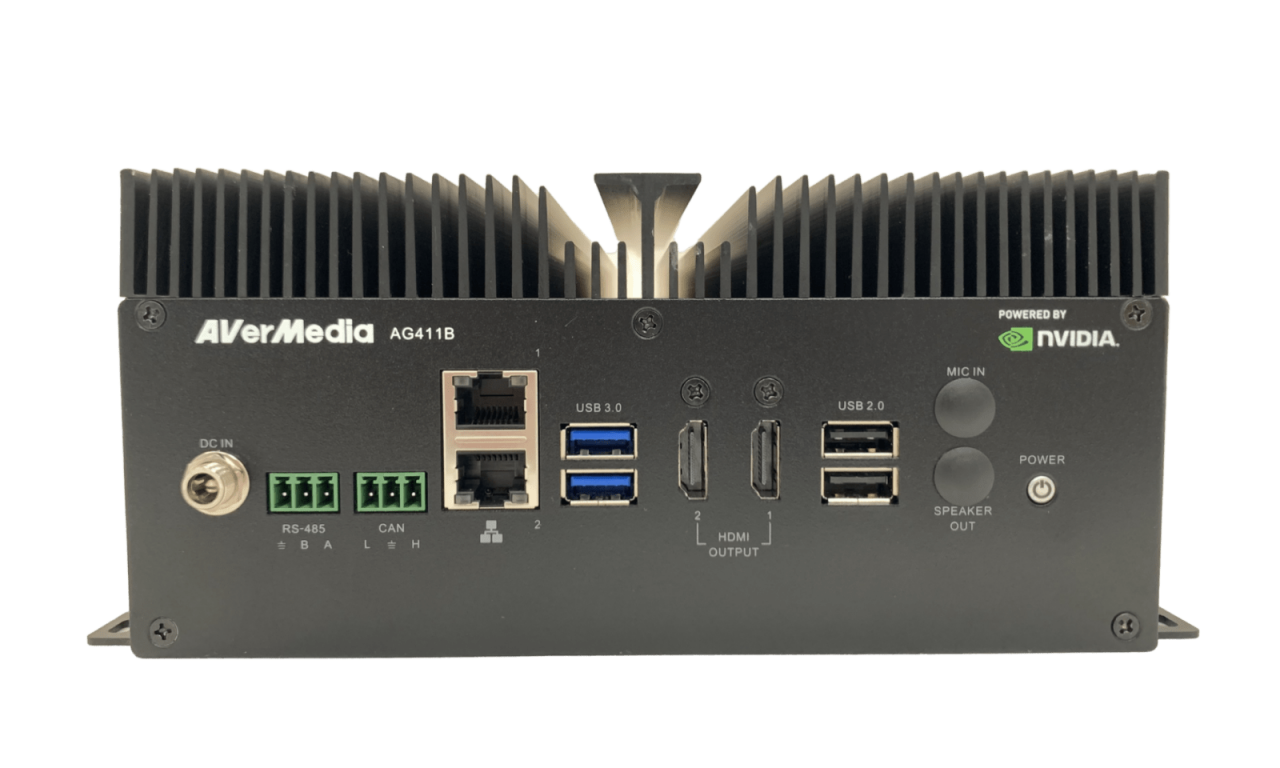

  • Easy to use with expansion I/O on one side.

  • Operating temperature: -10°C ~ 60°C

  • Dimension: W: 190mm x L: 240mm x H: 88.5mm (Product only)



Overview



AVerMedia Industrial AI Box PC AG411B equips with NVIDIA® Jetson AGX Xavier™ or Xavier™ Industrial module which aims targets AI-centric use cases for edge AI industrial computing such as heavy industry and industrial automations requiring wide input voltage operation. AG411B is easy to use with expansion I/O on one side.



AG411B Box PC provides 2x M.2 Key M 2280 and 3x mPCIe slots alternatively for Xavier to receive various video inputs by using AVerMedia’s capture cards. These 2x M.2 Key M 2280 and 3x mPCIe slots share PCIe Gen2 x4 lanes, so AG411B Box PC can provide three different combinations for developers to install video capture cards alternatively, such as 2x M.2 Key M 2280 slots and 3x mPCIe slots.

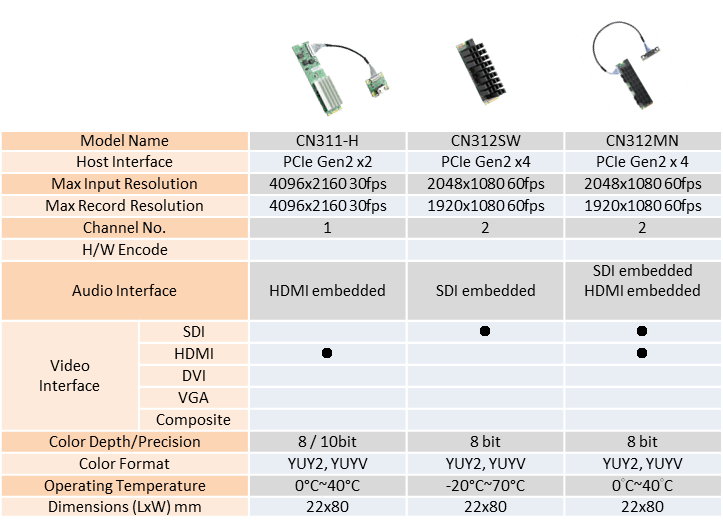

By using AVerMedia’s extended video capture cards, Xavier is able to receive HDMI, SDI, composite video inputs, and even dual 4Kp30 HDMI video inputs for different application scenarios. This highly integrated edge computer is a well prepared application ready system for developers to overcome the challenges timely and easily.

Key Industries



AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart Camera

Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.

Specifications

Model

AG411B

Type

Box PC

NVIDIA GPU SoC Module Compatibility

NVIDIA® Jetson AGX Xavier™ 32GB/ 64GB or Xavier™ Industrial module

Networking

2x GbE RJ-45

Display Output

2x HDMI 2.0, maximum resolution: 3840 x 2160 at 60Hz

Temperature*

Operating temperature -10°C~60°C

Storage temperature -40°C ~ 85°C

Relative humidity 40 °C @ 95%, Non-Condensing

USB

1x USB 2.0 Micro-B for RNDIS

2x USB 3.0 Type-A (USB3.1 x2)

3x USB 2.0

Storage

32GB eMMC 5.1 & 1x micro-SD card slot

RS-485

1x RS-485

CAN bus

1x CAN bus with transceiver

Expansion Header

40 pins: 1x UART, 2x 12C, 1x CAN (W/O transceiver), 5x GPIO

User Expansion

1 x M.2 Key E 2230 for Wi-Fi module (PCIe Gen4x 1)

1 x M.2 Key M 2280 for NVMe (PCIe Gen4x 4)

2 x M.2 Key M 2280 (PCIe Gen2x 4) or 3x mPCIe Gen2 x1

1 x SATA (Optional)

DIP Switch Expansion

1. Auto power on enable/Disable (External)

2. FAN PWM on enable/Disable (External)

3. RS485 Terminal ON/OFF (External)

4. CAN Bus Terminal ON/OFF (External)

Input Power

DC IN Plug (54V/2.78A)

Buttons

Power and Recovery (Power button with green LED)

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

* Temperature is still under testing. Please contact your local sales for more information.

** All specifications are subject to change without prior notice.

VIDEOS

Embedded World 2022 Booth Tour

Welcome to Embedded World 2022

AVerMedia AI Box PC_AG411B

DOWNLOAD

Source code
3D drawing
Datasheet
Driver
User Manual
BSP for Nano
BSP for NX
BSP for TX2 NX
SDK and Capture Studio
BSP

Date : 2022-08-31 00:00:00

Version: AG411B-R1.1.5.4.6
OS: L4T 32.6.1 (Jetpack 4.6)
Description: Support AGX_64GB module
ReadMe

Date : 2022-05-18 00:00:00

Version: AG411B-R1.1.3.4.6
OS: L4T_32.6.1 (JetPack 4.6)
Description: First Release
ReadMe

Date : 2022-10-31 00:00:00

Product Datasheet

Date : 2022-12-27 00:00:00

User Manual
