Carrier Board - AG411

AG411

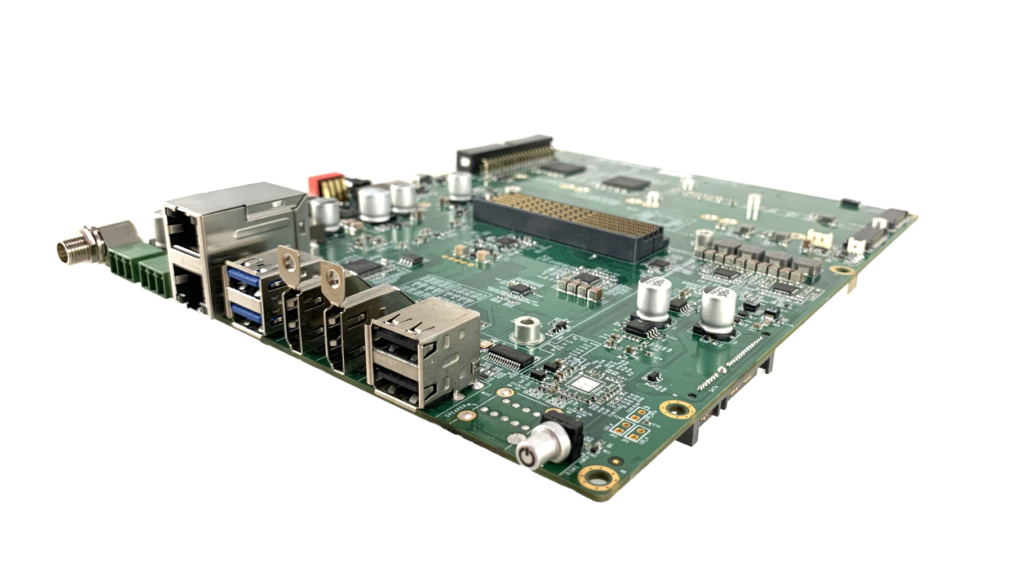

Standard Carrier Board AG411 for NVIDIA® Jetson AGX Xavier™ or AGX Xavier™ Industrial Module

Fully support NVIDIA® Jetson AGX Xavier™ or AGX Xavier™ Industrial
4x Mini-PCIe Gen2 x1 or 2x M.2 Key M 2280 (PCIe Gen2x 4)
1x M.2 Key E 2230 for Wi-Fi module
1x M.2 Key M 2280 for NVMe
2x GbE, 2x USB 3.0, 2x 4Kp60 HDMI output
1x USB 2.0 Micro-B for BSP installation only , 1x micro SD
1x CAN bus, 1x RS-485
40 pins: 1x UART, 2x I2C, 5x GPIO, and 1 x CAN (W/O transceiver)
Operating temperature: -20°C ~ 85°C *
Wide Voltage 12-54V

Overview

AVerMedia’s AG411 carrier board fully supports NVIDIA® Jetson AGX Xavier™ or AGX Xavier™ Industrial which is designed for AI-centric edge computing for use cases such as robotics and industrial automation. The AG411 carrier board provides 4x Mini-PCIe and 2x M.2 Key M 2280 slots allowing flexibility to receive various video inputs through AVerMedia’s capture cards.

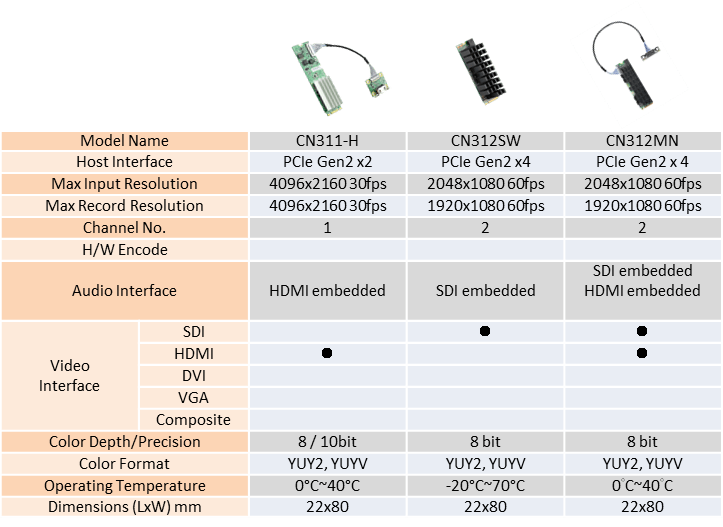

For added flexibility, additional capture cards can be included to receive HDMI, VGA, SDI, composite video inputs, and even dual 4Kp30 HDMI video inputs for different application scenarios.

For applications that requires IP cameras, the AG411 provides 2x GbE, and 2x USB 3.0 interfaces. General purpose I/O are ready for developers to use such as 2x 4Kp60 HDMI output, 1x USB 2.0 Micro-B for BSP installation only, 1x micro SD, 1x Mic-in, and 1x Speaker-out, 1x CAN bus, 1x RS-485. It also provides 40 pins of GPIO expansion: 1x UART, 2x I2C, and 5x GPIO 1x CAN for Xavier to communicate with external devices.

This performance-driven edge computer is an application-ready platform for for multiple use cases.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart Camera

Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.

Specifications

Model	AG411
Type	Carrier Board
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson AGX Xavier™ or AGX Xavier™ Industrial module
Networking	2x GbE (RJ-45)
Display Output	2x HDMI type A, maximum resolution: 3840x2160 at 60Hz
Temperature	Operating Temperature -25°C ~ 85°C Storage Temperature -40°C ~ 85°C Relative Humidity 40 °C @ 95%, Non-Condensing
USB	1x USB 2.0 Micro-B for recovery 2x USB 3.0 Type-A (USB3.1 x 2) 3x USB 2.0
RS-485	1x RS-485
CAN bus	1x CAN bus with transceiver
Expansion Header	40 pins: 1x UART, 2x I2C, 1x CAN (W/O transceiver), 5x GPIO
User Expansion	1x M.2 Key E 2230 for Wi-Fi module (PCIe Gen4x 1) 1x M.2 Key M 2280 for NVMe (PCIe Gen4x 4) 2x M.2 Key M 2280 (PCIe Gen2x 2) or 4x mPCIe Gen2 x1 1x SATA (Optional)
DIP Switch Expansion	1. Auto power on enable/Disable 2. FAN PWM on enable/Disable 3. RS485 Terminal ON/OFF 4. CAN Bus Terminal ON/OFF
Input Power	12-54V
Buttons	Power and Recovery (Power button with green LED)
RTC Battery	Support RTC battery and Battery Life Monitoring by MCU
PCB/Electronics Mechanical Info	W:220mm x L:170mm x H:53mm (8.66” x 6.69” x 2.09”) Weight: 300g
Certifications	CE, FCC, KC

** All specifications are subject to change without prior notice.
