Peripheral - PoE board (PSE)

Overview Download
Where to Buy

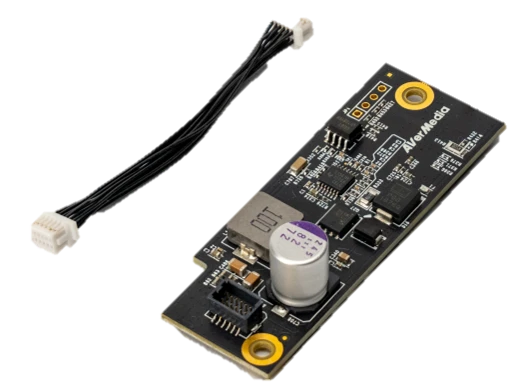

PoE board (PSE)

The PoE board is engineered to deliver both power and data over a single Ethernet cable, streamlining installations and enhancing device connectivity.

Applications:

- IP Camera Systems

- VoIP Phones

- Wireless Access Points

Specifications

Model

PoE board (PSE)

Applicable product

D131/D131L/D115W

Software

No need, Plug and Play



Specification

1x 802.3af (PSE)

Maximum 15.4W

Output Voltage 54V +/-5%



Temperature

Operating temperature -40C~55°C

Storage temperature -40°C ~ 85°C

Relative humidity 40 °C @ 95%, Non-Condensing

Package

1x PoE board (PSE)

1x cable

* All specifications are subject to change without prior notice.
