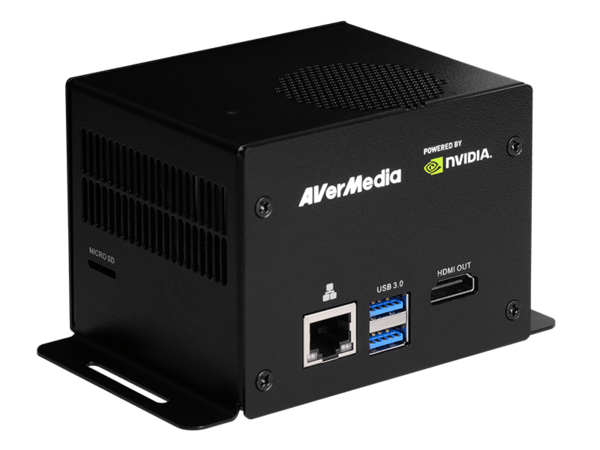

Standard Box PC NX211B/NO111B Equips NVIDIA® Jetson™ Xavier™ NX/NANO Module
Equip NVIDIA® Jetson Xavier™ NX/ NANO Version
1 x GbE
2 x USB 3.0
1 x 4Kp60 HDMI output
Internal 20-pin expansion header
1 x micro-SD card slot
Operating temperature: 0°C ~ 60°C(depends on module and usage).
Dimension: W: 91.4mm x L: 76.6mm x H: 70mm
AVerMedia’s Box PC NX211B/NO111B equip powerful NVIDIA® NANO/ Xavier™ NX modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities
NO111B/NX211B are designed for the industry applications with spatial concern and compact yet efficient for rapid AI-based solution development and seamless deployment as required by demanding business applications.
AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
Gather and deliver the information to streamline decisions and create more value for the customer.
Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.
Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.
Model | NX211B/NO111B |
|---|---|
Type | Box PC |
NVIDIA GPU SoC Module Compatibility | NVIDIA® Jetson Xavier NX module/Jetson Nano |
Networking | 1 x GbE RJ-45 |
Display Output | 1 x HDMI output 3840 x 2160 at 60Hz |
Temperature | Operating temperature 0°C~60°C for NO111B, 0°C~55°C for NX211B |
MIPI Camera Inputs (Internal) |
|
USB | 1 x USB 2.0 Micro-B for recovery |
Storage | 1 x micro-SD card slot |
Expansion Header | 20 pins: 2 x I2C, 1x UART, 9 x GPIOs |
Input Power | 12V/5A |
Power Cord | US/JP/EU/UK/TW |
Thermal solution | Heat sink with fan |
Buttons | Power and Recovery |
RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
Dimension/Weight | W: 91.4mm x L: 76.6mm x H: 70mm (3.60” x 3.02” x 2.76”) |
Certifications | CE, FCC, KC(TBA) |
Optional Accessories | Specs |
|---|---|
MIPI Camera | For 15 pin MIPI connector:
For 36 pin MIPI connector:
|
*All specifications are subject to change without prior notice.
Date : 2025-02-24 00:00:00
| OS | Version | Compatible SOM | Release Note |
| [L4T 35.6.0] (Jetpack 5.1.4) | EN715-NX-R2.5.0.5.1.4 | Xavier NX | ReadMe |
Date : 2025-02-24 00:00:00
| OS | Version | Compatible SOM | Release Note |
| [L4T 32.7.5] (Jetpack 4.6.5) | EN715-R1.5.0.4.6.5 | Nano | ReadMe |
Date : 2024-09-09 00:00:00
| OS | Version | Release Note |
| L4T 35.5.0 (Jetpack 5.1.3) | EN715-NX-R2.4.3.5.1.3 | ReadMe |
Date : 2024-06-13 00:00:00
*For UK customers:Date : 2023-09-18 00:00:00
| OS | Version | Release Note |
| L4T 35.4.1 (Jetpack 5.1.2) | EN715-NX-R2.3.0.5.1.2 (BETA) | ReadMe |
Date : 2023-07-06 00:00:00
| OS | Version | Release Note |
| L4T 32.7.1(Jetpack 4.6) | NX211B-R1.0.22.4.6 (BETA) | ReadMe |
Date : 2023-07-06 00:00:00
| OS | Version | Release Note |
| L4T 32.7.3(Jetpack 4.6.3) | NX211B-R1.1.0.4.6.3 (BETA) | ReadMe |
Date : 2022-05-12 00:00:00
Date : 2021-12-16 00:00:00
Date : 2021-03-22 00:00:00
Date : 2021-03-09 00:00:00
Date : 2020-08-06 00:00:00
Date : 2021-12-20 00:00:00
Date : 2021-03-22 00:00:00
Date : 2021-01-04 00:00:00
Date : 2020-07-10 00:00:00
Date : 2020-06-30 00:00:00
