D131LOX/D131LON

Engineering Kit built with NVIDIA® Jetson Orin™ NX/Nano Module

Jetson Orin Nano Super Mode support

• Supports Super Mode for Jetson Orin™ Nano

• 1 x 2 Lane MIPI CSI-2 Camera input

• 1 x M.2. E key 2230 for Wi-Fi (AC9260)

• 1 x M.2. M key 2280 for SSD (not included)

• 1 x GbE RJ-45 (Option PoE), 40-pin expansion header

• 4 x USB 3.2 Gen 1 Type A (Total Bandwidth: 5Gbps)

• 1 x 4Kp30 HDMI output for Orin Nano

• Operating temperature: 0°C ~ 65°C

• Dimension: 113mm(W) x 101.4mm(L) x 57.8mm(H)/Weight: 220g

• Support 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon

Overview

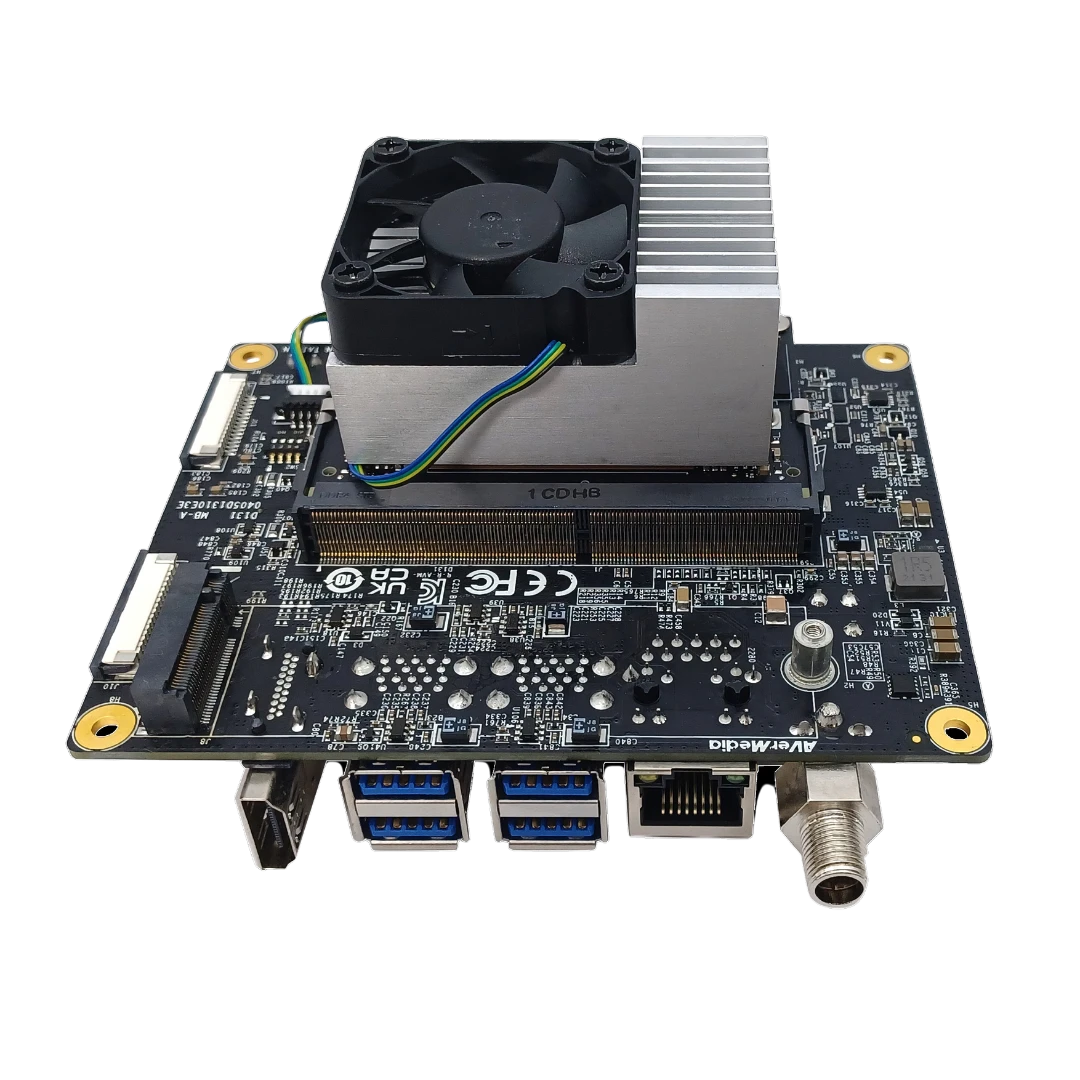

AVerMedia Engineering Kit D131LON built with NVIDIA® Jetson Orin™ Nano module, which brings next-level AI performance and power-efficient capability for all autonomous machines. This efficient SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

AMRs

AMRs deployment relies on live camera feeds to provide a rapid and flexible adjustment for the working process and creates a significant productivity growth.

Smart Security

Smart security relies on live camera feeds to benefit from the video analysis to improve and ensure community safety.

Smart Inspection

Smart inspection relies on live camera feeds to benefit from fast and accurate detection to improve quality control in production.

Specifications

Model	D131LOX/D131LON
NVIDIA Jetson SoM	Jetson Orin NX/Nano 8G
BSP	Applied to NVIDIA BSP directly*
Networking	1x GbE RJ-45 (PoE option) 1xM.2. key E 2230 for Wi-Fi (AC9260)
Display Output	1x HDMI 3840 x 2160 at 30Hz for Orin Nano
Temperature	Operating temperature 0°C~65°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs	1x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector
USB	1x USB 2.0 Micro-B for recovery 4 x USB 3.2 Gen 1 Type A (Total Bandwidth: 5Gbps)
Storage	1x M.2. key M 2280 for SSD
Expansion Header	40-pin: 1x UART, 2x SPI, 2x 12C, 1x I2S, 6x GPIOs 1xOOB supported by Allxon
Power requirement	Voltage	DC 9~24V
	Current	DC IN Jack on board: 7A~2.6A
	Current	ATX 4pin: 7A~2.6A
Thermal Solution	Fan
Buttons	Power and Recovery
Dimensions	113mm(W) x 101.4 mm(L) x 57.8 mm(H) Weight: 220g
Certifications	CE, FCC, KC, UKCA
Package	1 x Carrier Board 1 x NVIDIA® Jetson Orin Nano module + Fan
Optional	WIFI KIT PSE Board APPRO IMX179 Camera module 256G SSD 12V Power Adapter Power Cord

*Before flashing the NVIDIA BSP, please refer to page 28 of our user manual for pre-settings.

** All specifications are subject to change without prior notice.
