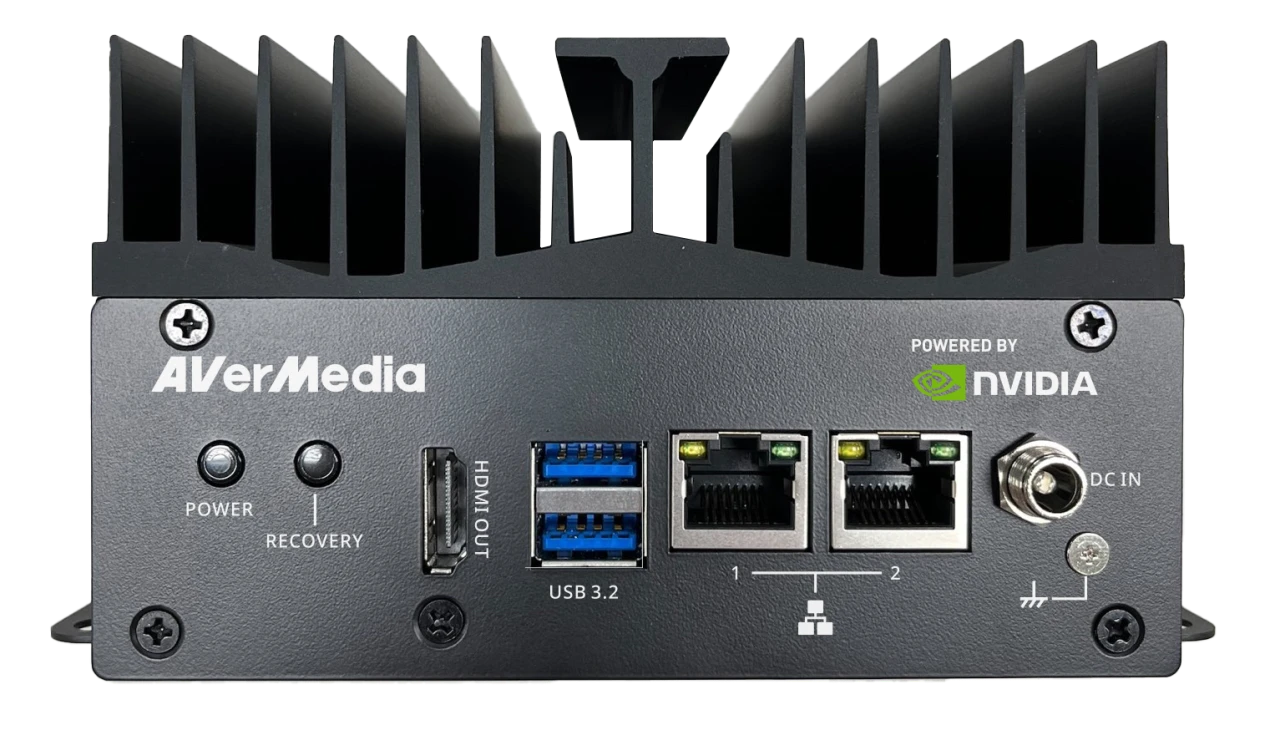

AI Box PC D115WOXB/D115WONB Equips NVIDIA® Jetson™ Orin NX/Orin Nano Module
Embedded NVIDIA® Jetson Orin NX / Orin Nano
Supports Super Mode for Jetson Orin™ Nano
2 x M.2. for WIFI and SSD
2 x GbE RJ-45 (Optional: Ethernet 1 for PoE)
3 x USB 3.2 & 1 x HDMI output
20-pins expansion header
Operating temperature -25°C~60°C
Dimension: 126mm x 96mm x 73.9mm (4.96” x 3.78” x 2.91”)
AVerMedia's AI Box PC D115WOXB / D115WONB equips powerful NVIDIA® Jetson Orin NX / Orin Nano module. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.
D115WOXB/D115WONB is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.
AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.
Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others’ Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
Gather and deliver the information to streamline decisions and create more value for the customer.
Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.
Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.
Model | D115WOXB-16G/D115WOXB-8G D115WONB-8G /D115WONB-4G |
|---|---|
Type | Box PC |
NVIDIA GPU SoC Module Compatibility | NVIDIA® Jetson Orin NX module (16GB / 8GB) |
Networking | 2x GbE RJ-45 (Optional: Ethernet 1 for PoE )* |
Display Output | 1 x HDMI output3840 x 2160 at 60Hz for Orin NX, 30Hzfor Orin Nano |
Temperature | Operating temperature -25°C~60°C |
MIPI Camera Inputs | 2x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch Connector |
USB | 1x USB 2.0 type C for recovery |
Storage | 1x M.2. key M 2280 for NVMe (256G SSD installed in box PC) |
Expansion Header (Internal) | 20 pins: 2x I2C, 2x UART, 4x GPIOs, 1xCAN (EU terminal block) |
Input Power | DC in JACK on board & ATX 4pin |
Power Cord | US/JP/EU/UK/TW/AU/CN |
Fan Module | Fanless Solution |
Buttons | Power and Recovery |
RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
PCB/Electronics Mechanical Info | 126mm x 96mm x 73.9mm(4.96” x 3.78” x 2.91”) weight : 1kg |
Certifications | CE, FCC, KC |
Package | 1x D115WOXB/D115WONB (256G SSD installed) |
Model | SKU Number | NVIDIA SOM | SSD | PSE* | [Preliminary] | [Preliminary] | Mechanical Info and weight |
|---|---|---|---|---|---|---|---|
D115WOXB | D115WOXB-16G-001 | Orin NX 16G | 256G | - | - | - | •126mm x 96mm x 73.9mm (4.96” x 3.78” x 2.91”) • weight : 1kg |
D115WOXB | D115WOXB-16G-002 | Orin NX 16G | 256G | YES | - | - | •126mm x 96mm x 73.9mm (4.96” x 3.78” x 2.91”) • weight : 1.1kg |
*With the optional OOB module, the default configuration uses Ethernet 2 for OOB management, rendering the OOB-Ethernet on the device inactive. Alternatively, we offer another option that allows users to manage via the Ethernet on the OOB module, changing the box PC configuration from 2x RJ45 to 3x RJ45.
Optional Accessories | Specs |
|---|---|
MIPI Camera | For 22pin MIPI connector: 1. raspberry pi camera v2 /raspberry pi camera v3 2. Manufacturer: APPRO.PHO ■ B-04: IMX179 (8M) MIPI, 1080P (30fps)
|
* For details, please refer to the "Accessory-PoE Board" webpage.
** For details, please refer to the "Accessory-OOB module" webpage. Ethernet 2 supports NC-SI for enabling Allxon OOB and In-Band functions simultaneously.
***For details, please refer to the "Accessory-5G Daughter Board" webpage.
****Please contact your local sales for more information. All specifications are subject to change without prior notice.
Date : 2025-05-07 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.3 (Jetpack 6.2) | AVERMEDIA_JETPACK-R1.1.4.6.2.0 (Beta) | AGX Orin | ReadMe |
Date : 2025-02-28 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.3 (Jetpack 6.2) | AVERMEDIA_JETPACK-R1.1.0.6.2.0 (Beta) | AGX Orin Orin NX & Orin Nano Orin Nano Super Mode | ReadMe |
Date : 2024-11-22 00:00:00
| OS | Version | Compatible SOM | Release Note |
| L4T r36.4 (Jetpack 6.1) | D115W_ORIN-R3.2.0.6.1.0 (Beta) | Orin NX 16G/8G Orin Nano 8G/4G | ReadMe |
Date : 2024-11-06 00:00:00
| OS | Version | Compatible SOM | Release Note |
| L4T 36.3 (Jetpack 6.0) | D115W_ORIN-R3.1.2.6.0.0 (BETA) | Orin NX 16G/8G Orin Nano 8G/4G | ReadMe |
Date : 2024-05-06 00:00:00
| OS | Version | Compatible SOM | Release Note |
| L4T 35.5.0 (Jetpack 5.1.3) | D115W_ORIN-R2.2.1.5.1.3 (BETA) | Orin NX 16G/8G Orin Nano 8G/4G | ReadMe |
Date : 2024-03-12 00:00:00
| OS | Version | Compatible SOM | Release Note |
| L4T 35.3.1 (Jetpack 5.1.1) | D115WOX-R2.0.2.5.1.1 (BETA) | Orin NX 16G/8G | ReadMe |
