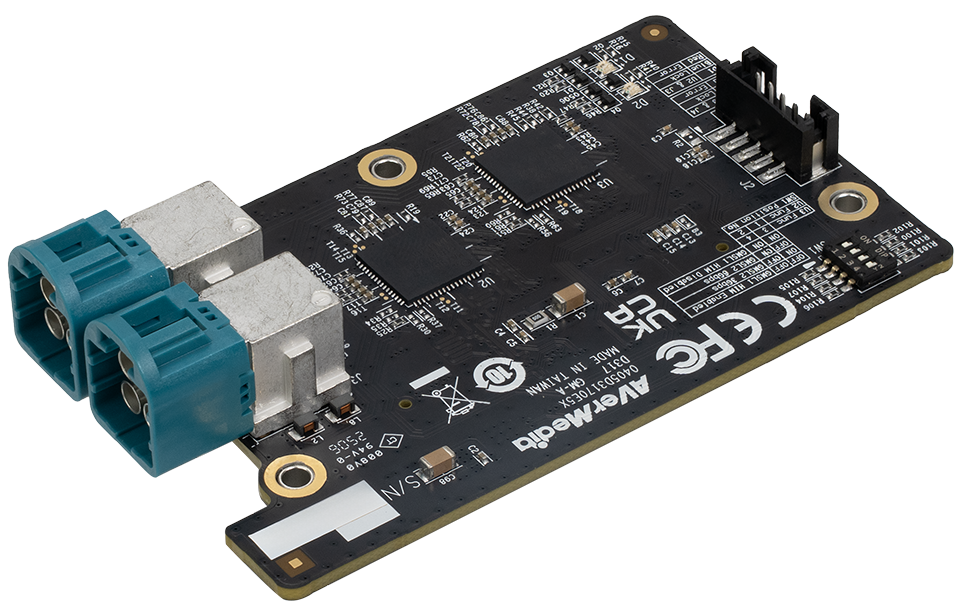

GMSL Module [Preliminary]
Applies to AVerMedia's D317/D315 series
•2x Mini FAKRA to support 8x GMSL camera (Via FAKRA cable)
•POC (Power-Over-COAX)
•120pin Board to Board Connector
Specifications
Model | GMSL Module | |
|---|---|---|
Applicable product | D317 | D315 |
Deserializer |
Maxim 96712 | |
Product Type |
120pin Camera Expansion Header Board to Board daughter board | |
MIPI Output |
1 x 4-lane MIPI CSI-2 v1.3 output from each Deserializer (16-lanes total) Via 120pin camera expansion board to board connector | |
Camera Input Connectors | •2x Mini FAKRA A Type •Option: Breakout cables to FAKRA available (MKA4FZ-174U-FKMZ1-23-01) | |
POC (Power-Over-COAX) | All 8 cameras will be sourced Power-Over-COAX from D317 | |
Power | can be directly powered from Camera Expansion Header | External +12V Input |
Mechanical |
Dimensions: 80.8mm x 49mm (TBD) | |
Temperature | Operating temperature: -40°C to 85°C (TBD) Storage temperature -40°C ~ 85°C (TBD) Relative humidity 40 °C @ 95%, Non-Condensing | |
* All specifications are subject to change without prior notice.
